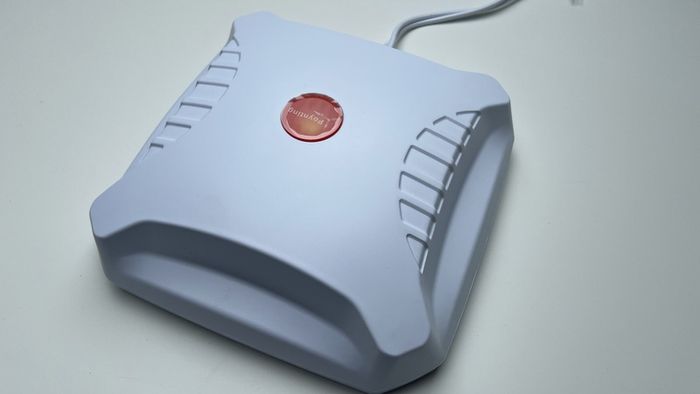

Poynting XPOL-2-5G Wifi Antenna for Card Routers

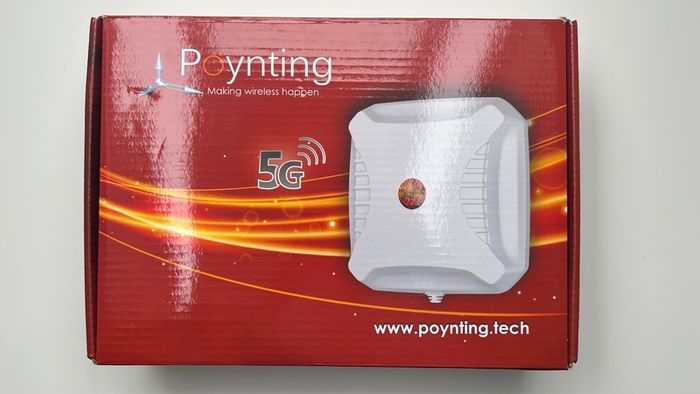

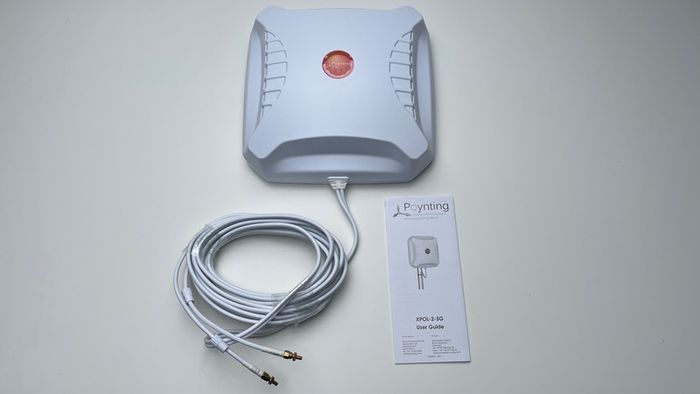

New open box:

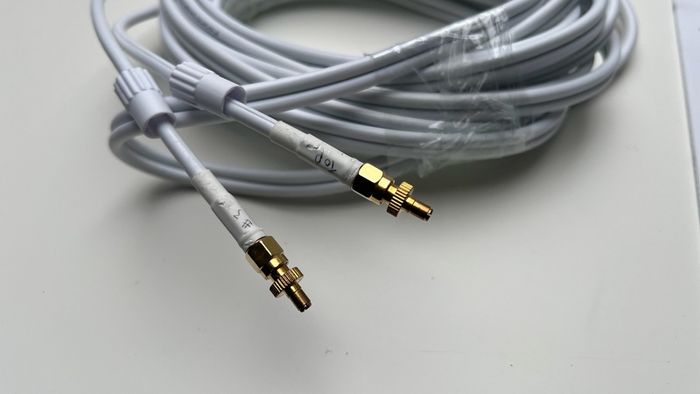

Adapters shown included.

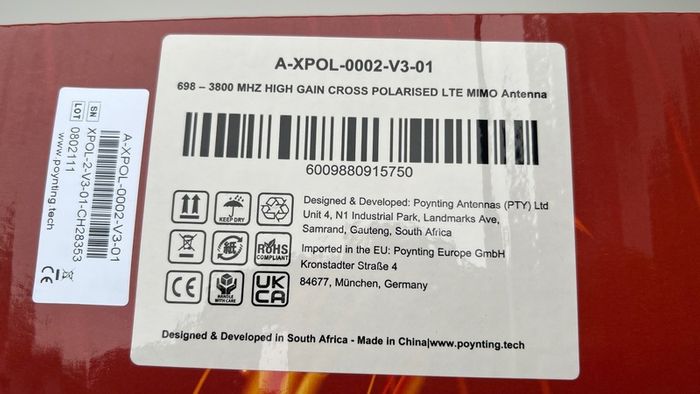

Poynting A-XPOL-0002-V3-02
X-Polarised, High Gain, Uni-Directional LTE Antenna (2X2 MIMO)

New advanced metamaterial technology
Exceptional performance over the main 4G/5G bands
High Gain for the antenna size
Wideband 2×2 MIMO 4G/5G antenna
Backwards compatible 2G/3G/4G/LTE antenna (5G Ready)
Two cross polarised antennas in one enclosure for optimal LTE performance
IP65 weather/dust and vandal resistant enclosure

The XPOL-2-5G is Poyntings third generation "V3" of this very popular Cross Polarised (XPOL), cellular band, 2×2 MIMO antenna.
The antenna enclosure effectively looks the same as the second generation "V2" but has been completely redesigned on the inside.
We have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain.
Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna.

The XPOL-2-5G antenna includes the newer 3400 - 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G.
This antenna performs exceptionally well in the following frequency bands: 698 - 960MHz, 1700 - 2170MHz, 2300 - 2700MHz & 3400 - 3800MHz.
In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the "V2" over the same frequency bands!
Our "V2" antenna already outperformed most competitors over these bands, so this substantial improvement in gain shows the benefits of the new advanced materials and novel radiator design.
