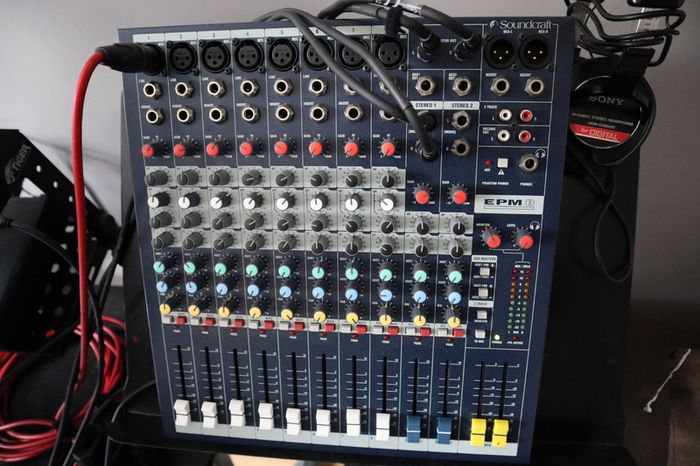

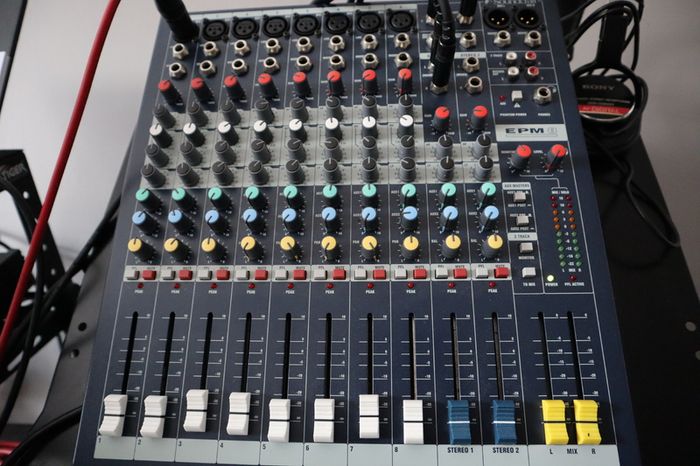

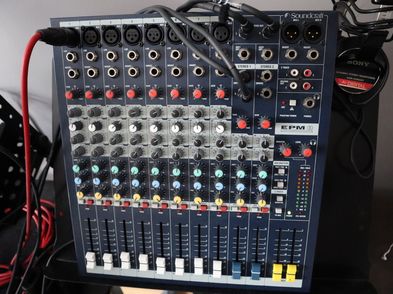

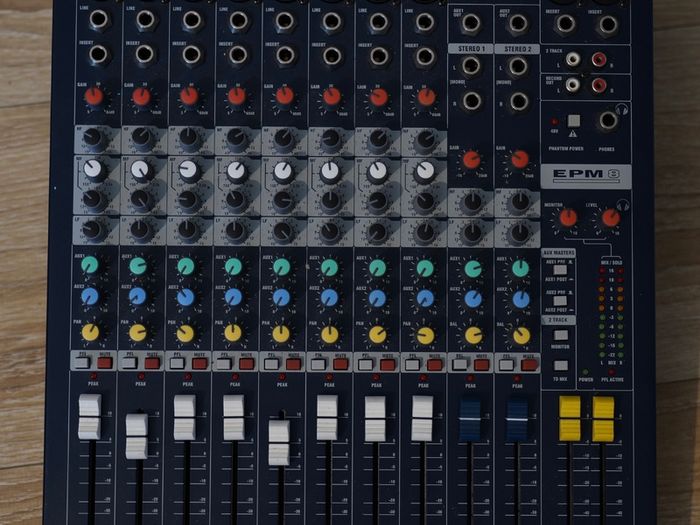

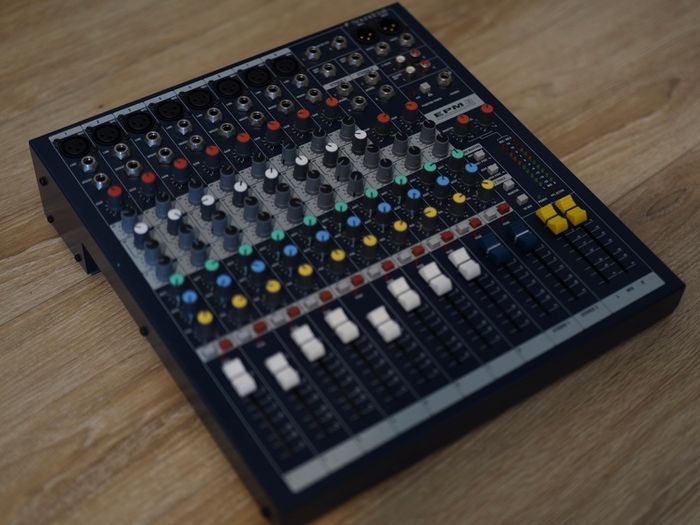

Sound craft EPM8

Superb mixier.

- Features
2 configurable auxiliary buses

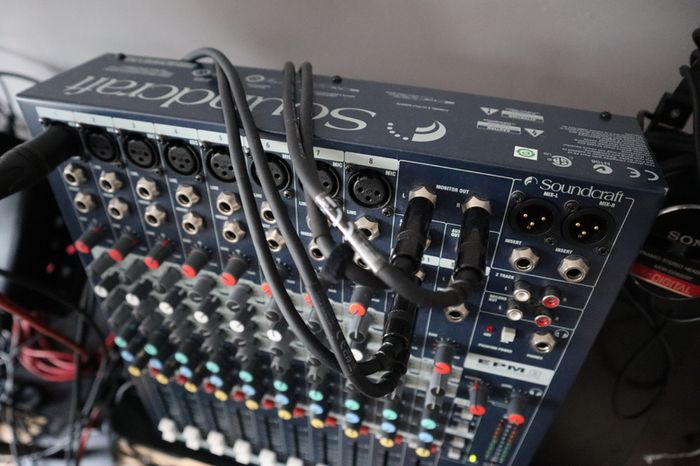

XLR-type and ¼” metal jack connector sockets

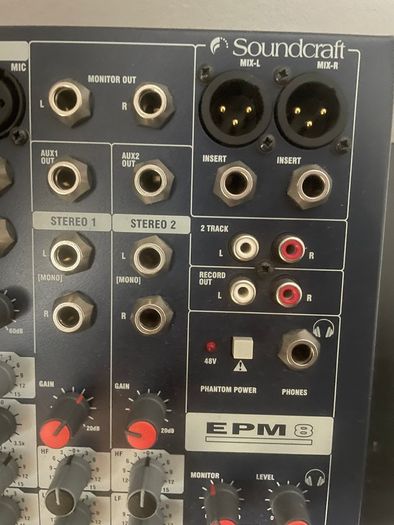

RCA phono stereo playback inputs and record outputs
3-band EQ with a swept mid on mono inputs
2-band EQ on stereo inputs
TRS insert sockets and inserts on all mono inputs and mix output

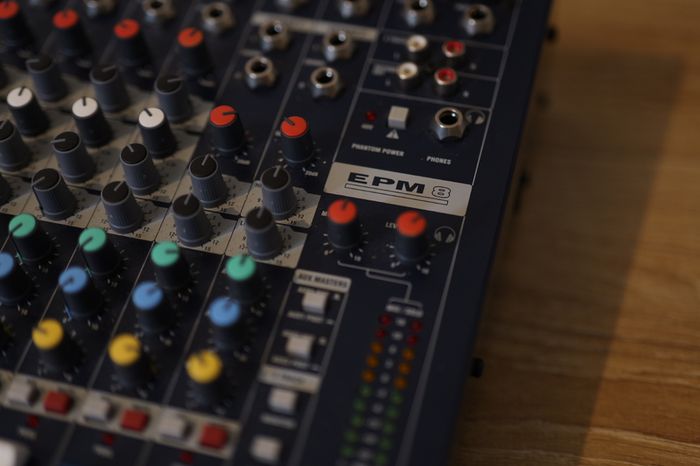

Ten-segment LED output metering
Intuitive and comprehensive solo system
Headphone output
Easily rack mountable

Advantages of the EPM8:
High-quality sound: It features GB30 mic preamps, offering clean and low-noise audio.
Flexible EQ: Each channel has a 3-band equalizer for sound shaping.
Versatility: Suitable for live sound, studio recording, or hybrid setups.
Important Notes
The EPM8 cannot directly drive passive speakers because it lacks an internal power amplifier.
It does not include built-in effects (like reverb or delay). External effects processors can be connected via the aux sends if needed.
With its high-quality design, the EPM8 is ideal for professional and semi-professional audio applications where an external amplifier or powered speakers are part of the setup.



The emphasis with the Soundcraft EPM is very firmly on quality build and audio performance, with an easy to understand control surface uncluttered by unnecessary facilities, and Soundcraft have brought new technologies and ideas to this very cost-effective range. Surface mount technology is used throughout, using close-tolerance components for high accuracy and repeatable settings for EQ and gain controls. The highly-transparent GB30 Mic amp (designed by Graham Blyth for the company’s 30th anniversary, and also used on the larger LX7ii and GB Series consoles) features high-resolution adjustment over a wide gain range of 55dB, and provides a stunning +22dB headroom through the console. True professional 48-volt phantom power caters for condenser microphones of all types.

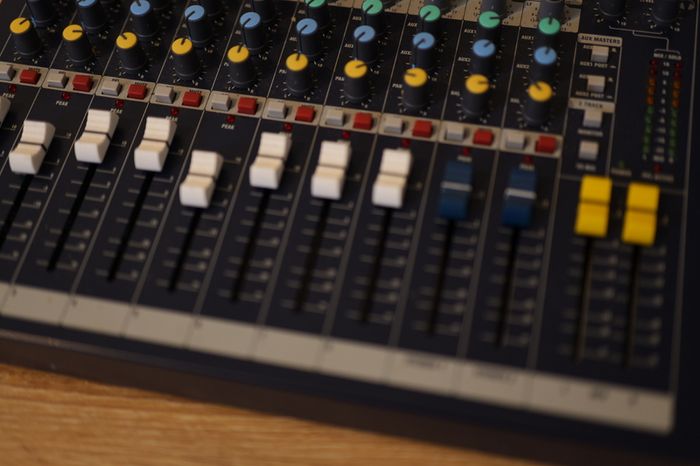

A unique feature of the signal monitoring is the PEAK led. This uses multipoint signal take-offs to watch for overload in several parts of the channel strip, and the led lights more brightly as the signal approaches the peak point. For smooth and accurate channel control, the EPM has 60mm high quality faders as used on other Soundcraft desks. The monitor output and headphone output work in parallel so that performers can still listen on phones while an engineer is listening on studio monitors.
