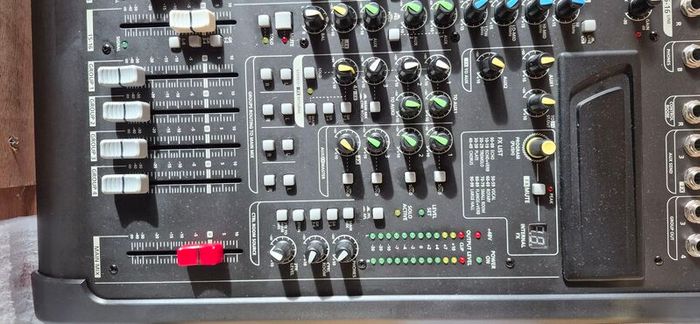

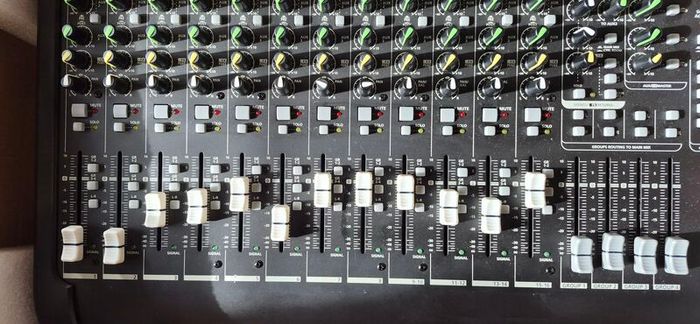

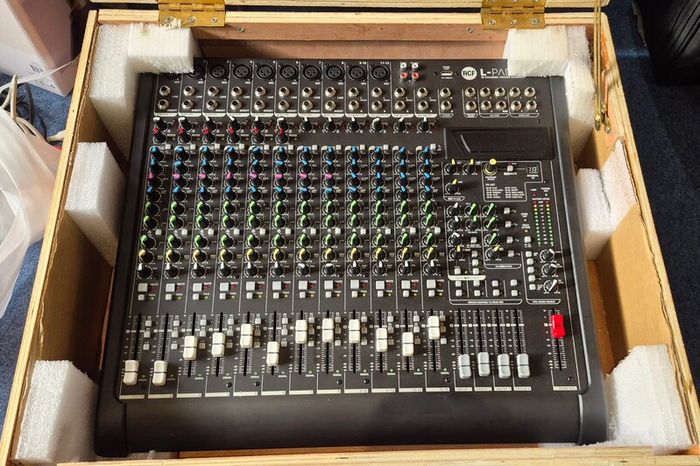

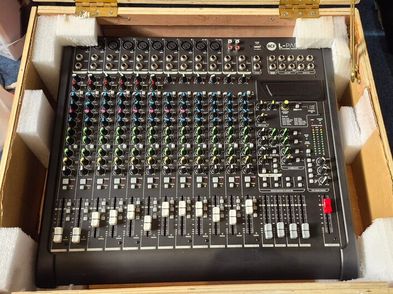

RCF L-Pad 16 Channel Mixer

The RCF Audio LPAD16CX Mixer is a lightweight and compact 16-channel, 4-bus analog USB mixer that delivers outstanding versatility thanks to the 10 microphone/line inputs, along with 4 stereo inputs, 6 single-control compressors and USB connectivity. The internal FX digital signal processor allows you to improve your sound while adding accurate and warm effects. Complete with 4-band fixed EQs, 3-band EQs with a sweepable mid frequency, 60mm long-live faders and 4-group assignable sub mixes, the RCF LPAD16CX is perfect for a range of applications - whether you're performing on stage or recording in your studio.

Product Ref: 77903

Full Description

Features

10 mic/line inputs and 4 stereo inputs

6 single-control dynamic compressors (channel 1-8)

4 stereo AUX returns

3-band EQ with sweepable MID frequency on microphone channels

4-band fixed EQ on stereo line channels

4 Aux sends per channel: 2 pre/post faders switchable

4-group mix

24-bit DSP effects with 99 presets

Lightweight and compact design

USB port for PC audio recording and playback

Specifications

Frequency Response: 20Hz - 20kHz

Total Harmonic Distortion: 0.03% (THD+N)

Mono EQ: 3-Bands

Sweepable Mid Frequency 100Hz - 8kHz

Stereo EQ: 4-Bands

±15dB @ 12kHz Shelving

±15dB @ 3kHz

±15dB @ 500Hz

±15dB @ 80Hz

Aux Send: 2 Pre/Post

FX Send: 1 Post

Internal Effects: 99

Compressors: 6 (Single Control)

Footswitch: 1

Expansion Slot: 1 (for Optional LPAD Card)

Housing: Metal

Finish: Black

Power Supply: Internal 100V-240V

Power Consumption: 50W

Dimensions: 85mm x 515mm x 460mm / 3.34'' x 20.27'' x 18.11'' (H x W x D)

Weight: 6.97kg / 15.36lbs

Inputs

Microphone Inputs: 10

Microphone Gain Range: 0dB to 50dB

Phantom Power: +48V

Low Cut: 75Hz

Mono Line: 8

Line Gain Range: +20dB to -30dB

Stereo Line: 4

2-Track: Yes

Stereo Return: 4

Outputs

Main Mix: 1

Control Room: 1

FX Send: 1

Aux Send: 4

Group: 4

Headphones: 2

2-Track: Yes
