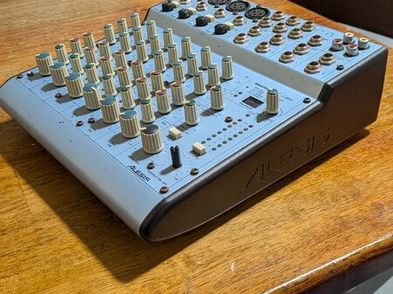

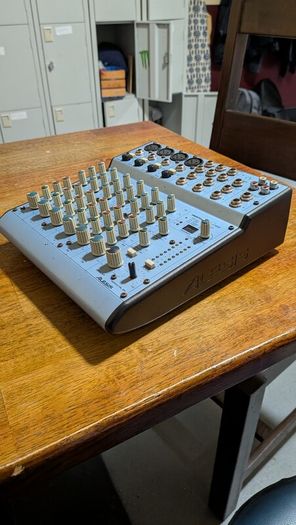

Alesis Multimix 8 USB 8 channel mixer

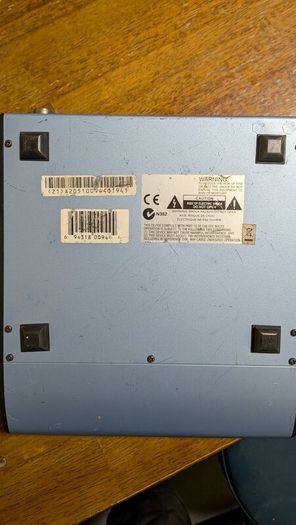

Mixer was tested March 2026 and is functioning fully. Had been in storage for a few years, some slight corrosion on input jacks and some screws and one volume knob is missing. Power cable included.

- 4 high-gain mic/line inputs with phantom power, 2 stereo balanced 1/4” line inputs
- 100 28-bit onboard preset effects including reverbs, delays, chorus, flanging and pitch
- Works with iPad via Apple USB Adaptor (sold separately)
- 3-band EQ per channel
- Separate 1/4” balanced main and monitor outs, headphone out
- Integrated USB audio interface
- Mac OS X, Windows XP (32-bit) or Vista (32-bit) compatible

- CONTROL Front-panel channels (top down): 4 mic/line channels with 75Hz highpass filter switch and mic/line gain. All channels with 3-band EQ (high shelving at 12kHz, mid bandpass/reject at 2.5kHz, low shelving at 80Hz) aux send A (pre-fader) aux send B (post-fader, onboard or external effects) pan or balance level.
- Front-panel other: Effect section with selector plus clip and signal LEDs. Aux return A level, effects/aux return B level. Main out level with 2-track to mix switch. Headphone/control room out level with 2-track to control room switch. Stereo 8-segment LED meters.
-CONNECTIONS USB 1.1 Stereo input/Output for PC (Windows XP or Vista) and Mac (OS X). All 1/4" TRS except as noted: Mic in x 4 (XLR), mono line in x 4, stereo line in x 4, aux sends x 2, stereo aux returns x 2, stereo main out, stereo control room out, headphone out. 2-track stereo in and out (RCA).
- POWER 18V AC external transformer
- WEIGHT & DIMENSIONS 3.5" x 9.25" x 10.25" (H x W x D) 4.5lbs

Documents and downloads available at https://www.alesis.com/products/view/multimix-8-usb.html
