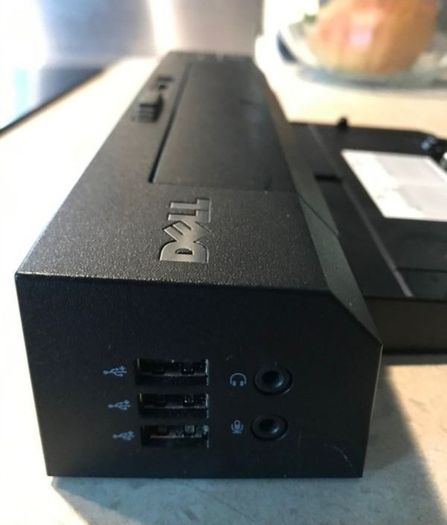

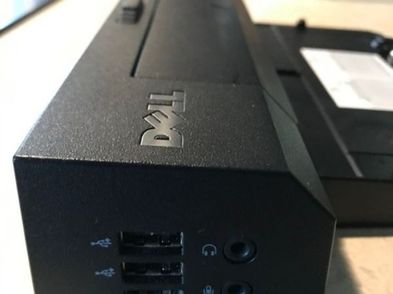

Docking Station PR02X K09A For Dell Latitude, Dell Precision

SKU: DK015

Manufacturer: Dell

Model: PR02X K09A

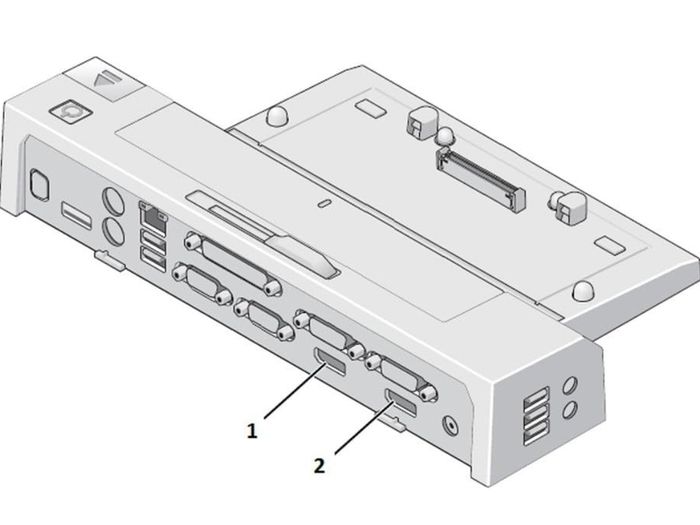

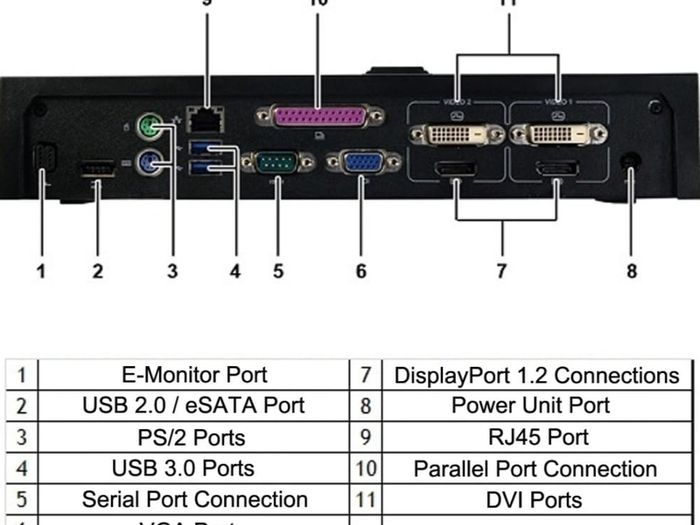

Connectivity :
3x USB 2.0
2x USB 3.0
1x eSATA / USB2.0
1x Network (RJ-45)
2x DisplayPort (Dual-Mode)
2x Display Out (DVI)
1x Display Out (VGA)
1x Line In (Microphone)
1x Line Out, Headphones / Speakers)
1x E/Dock Monitor Stand Connector
1x Parallel (Printer) Port
1x Serial
1x Keyboard (PS/2)
1x Mouse (PS/2)

Compatible Models:
Designed For:
Dell Latitude E4200, E4300, E4310, E5400, E5410 , E5420, E5430, E5440, E5500, E5510, E5520, E5530, E5540, E6220, E6230, E6320, E6330, E6400, E6400 ATG,E6410, E6410 ATG, E6420, E6420 ATG, E6430, E6430 ATG, E6430s, E6440, E6500, E6510, E6520, E6530, E6540
Compatible But Require An Additional Accessory
Same power supply from your laptop can be plugged on the Dock station
/ Higher Specification Power Supply:
Requires Docking Spacer (Dell SKU: 452-BBDB): Latitude E5250, E5270, E5270, E5450, E5470, E5550, E5570, E7240, E7250, E7270, E7440, E7450, E7470, Precision 3510, M3510
Requires “Rugged adapter for E-Port” (Dell P/N: 452-10895): Latitude E6400 XFR, E6420 XFR
Requires 210W 7.4mm x 5.00mm Tip PSU: Precision M4600, M4700, M4800, M6400, M6500, M6600,
Requires 210W 7.4mm x 5.00mm Tip PSU & Docking Spacer: Precision 7510, 7520
Requires 240W 7.4mm x 5.00mm Tip PSU: Precision M6700, M6800
Requires 240W 7.4mm x 5.00mm Tip PSU & Docking Spacer: Precision M7710 / 7710, M7720 / 7720
