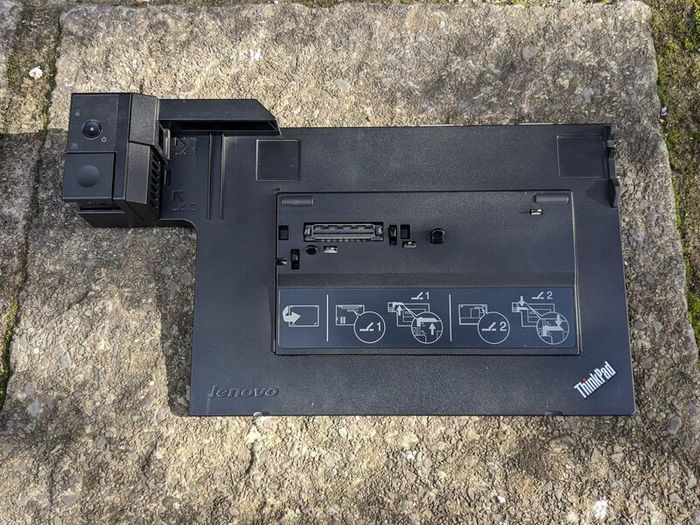

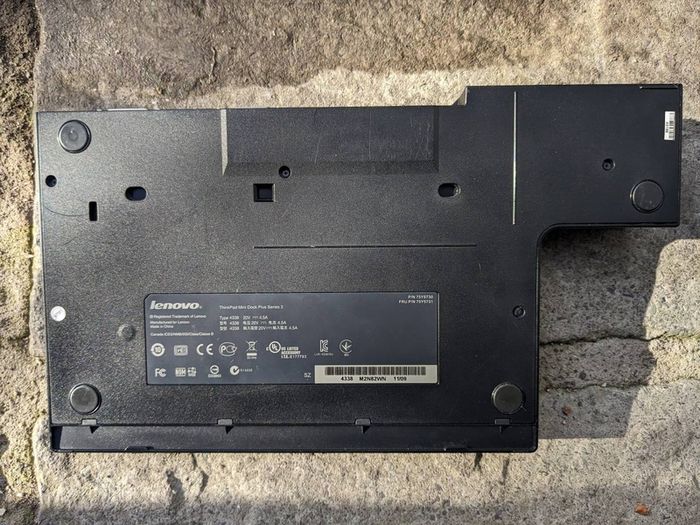

Lenovo Thinkpad Mini Dock Plus Series 3 (Type 4338)

Selling due to lack of use.

Models supported:
- W510, W520, W530
- T400s, T410, T410i, T410s, T410si, T420, T420i, T420s, T420si, T430, T430i, T430s, T430si, T431s(1), T510, T510i, T520, T520i, T530, T530i
- X220, X220i, X220 Tablet(2), X220i Tablet(2), X230, X230i, X230 Tablet(2), X230i Tablet(2)
- L412, L420, L421, L430, L512, L520, L530

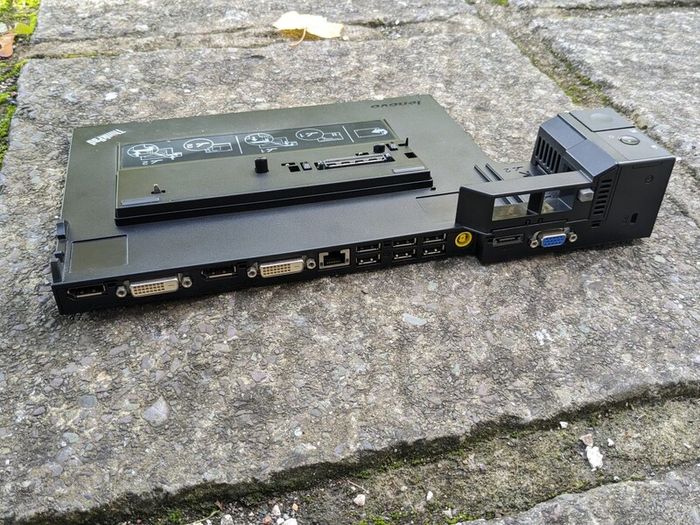

Pass-through ports:
- 6x USB 2.0 (Type-A) port
- 1x eSATAp port
- 1x Ethernet (RJ-45) port
- 2x DisplayPort 1.2 out port
- 2x DVI-D (single-link) out port
- 1x VGA-out (DE-15) port
- 1x DC-in (barrel) socket

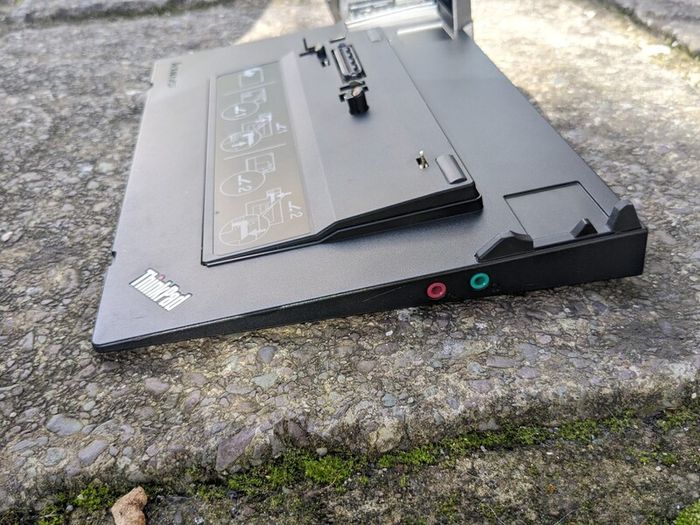

- 1x Analog Microphone in
- 1x Headphone out

Non-pass-through:

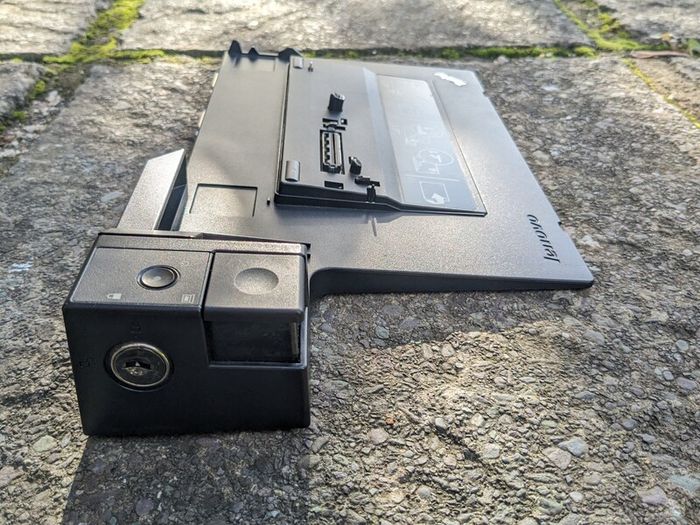

- 1x Proprietary key lock (secures the laptop to the dock)
- 1x Kensington security lock slot

Keys are missing so you can't lock your machine to this dock. Otherwise it works perfectly.

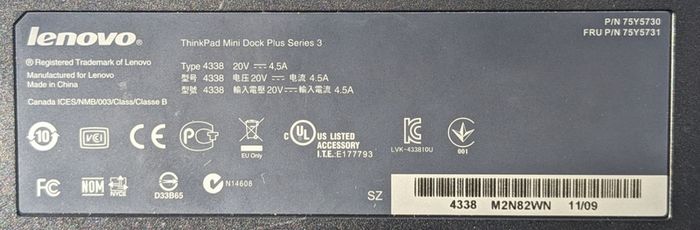

P/N: 75Y5730
FRU P/N: 75Y5731

This is the model without USB 3.0, you'll have to use your machine's built in port if you the speed.

Other features:
- Left corner alignment for easy laptop attachment
- 65W(3)/90W/135W/170W AC Power Adapter required (NOT included)
- Convenient Eject button for one-step laptop removal

(1) Requires CS-09 dock adapter.
(2) Requires modification to the dock itself.
(3) Officially the dock never shipped with a 65W adapter, but I tested and it works fine.


Free collection in Cork or shipping 6e.
