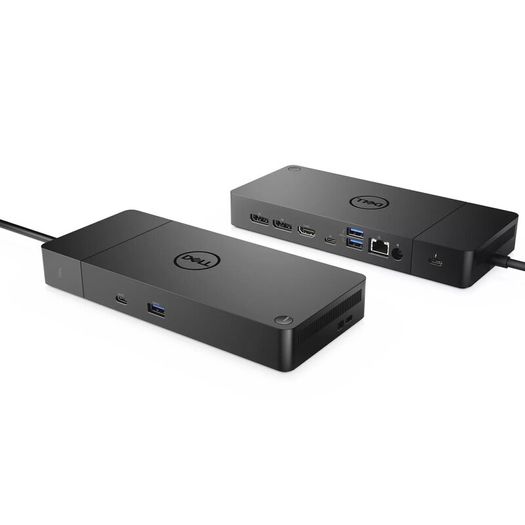

Dell Thunderbolt Docking Station WD19TBS + 180wattAC power adapter

BRAND NEW
Feature Technical Specifications
Product Type Docking Station
Display Support with
Thunderbolt input
For a HBR2* PC
3 x FHD @ 60Hz
3 x QHD @ 60Hz
2 x 4K @ 30Hz
For a HBR3 PC
4 x FHD @ 60Hz
4 x QHD @ 60Hz
2 x 4K @ 60Hz
Max Resolution 5120 x 2880 @ 60Hz with DP 1.2
Thunderbolt systems
Video interfaces 2 x Full size DP1.4
1 x HDMI
1 x MFDP USB-C
1 x Thunderbolt 3™ USB-C
USB Ports 3 x USB-A 3.1 Gen 1
2 x USB-C 3.1 Gen 2
Networking Gigabit Ethernet
Security Slot Type
(cable lock sold
separately)
1 x Kensington lock slot
1 x Noble Wedge lock slot
LED Indicators Power Adapter LED
Power Button LED
RJ45 LEDs
Power Power Adapter 180 Watt AC with
up to 130 Watt power delivery
Up to 90 Watts power delivery to
non-Dell systems
Dimensions 205mm x 90mm x 29mm
8.07in x 3.54in x 1.14in
Dock Weight (without
power adapter)
585g
1.29lbs
Feature Technical Specifications
Operating Systems Microsoft Windows 10
Ubuntu 18.04
Red Hat Enterprise Linux
Systems Management Wireless vPro supported by
Notebook or Workstation
Docking Interface Thunderbolt 3™ (Type-C
Connector)
Cable Length 0.8m
MAC Address Pass Through MAC Address
Warranty 3-Year Limited Hardware Warranty
with Advanced Exchange
Additional 4- & 5-year warranty
optional
Management Features PXE Boot
Wake-On-LAN
MAC address pass-through
Port Disablement
Wake-On-Dock button
Wake-On-Dock
Dell Command Update (DCU)
Error messages and dock event
notifications
What’s in the Box 1 x WD19TBS Dock
1 x 180W Power Adapter
