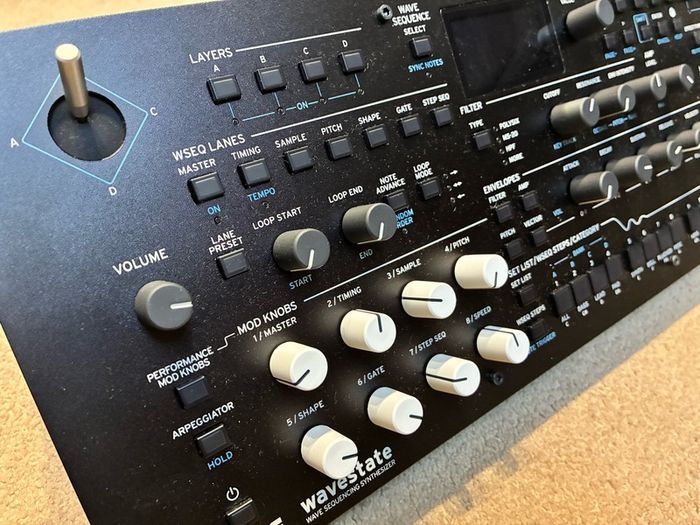

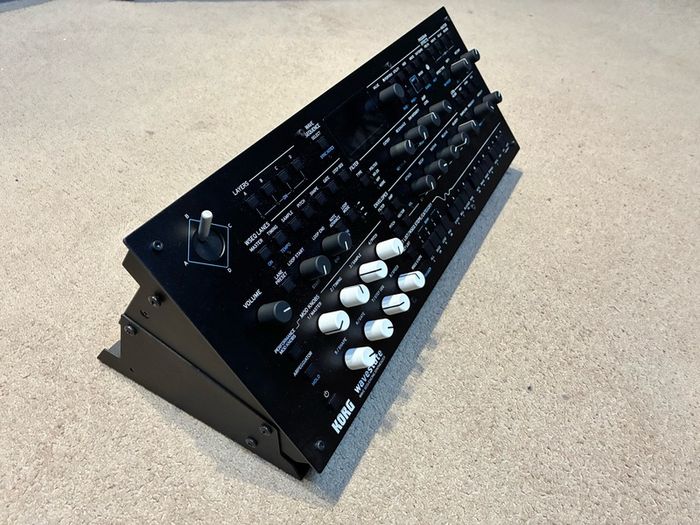

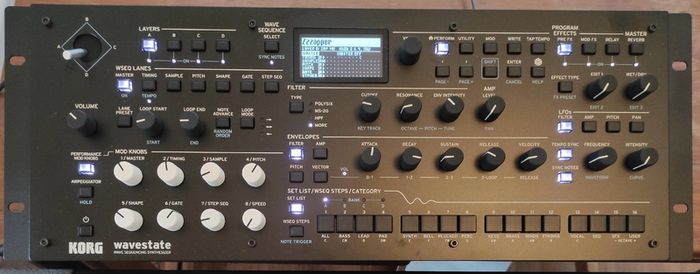

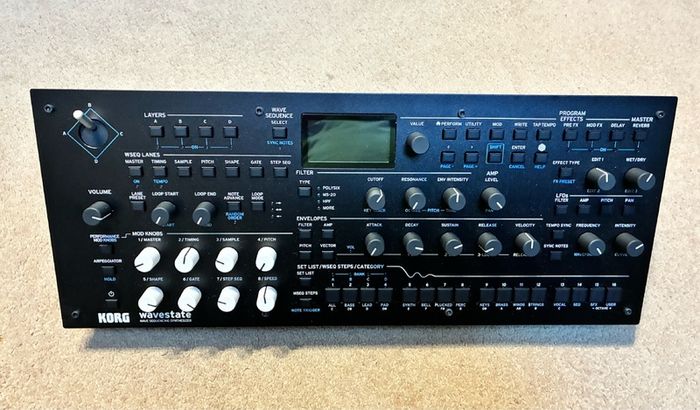

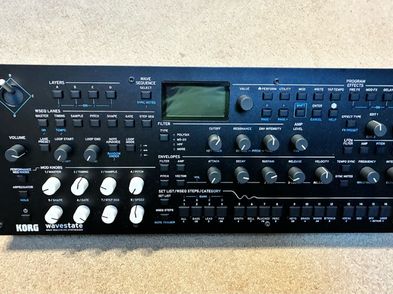

Korg Wavestate Module

Absolute mint Wavestate Module

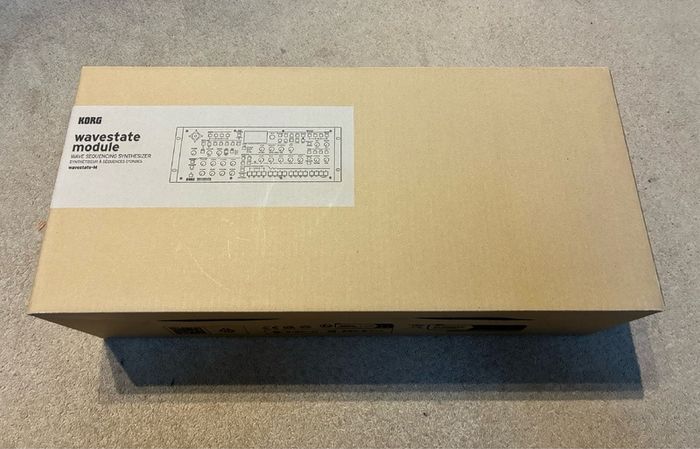

Comes boxed as new

Spec:

Korg wavestate Module — Specifications

Sound engine

* Wave Sequencing 2.0
* 120 stereo voices maximum polyphony
* 4-layer Performance architecture
* Each layer contains a Program, arpeggiator and key/velocity zones
* Extensive sample-based synthesis
* Compatible with sounds and samples from:
* wavestate
* wavestate mkII
* wavestate SE
* wavestate native
* Third-party libraries
* 1,000+ potential modulation targets per Program, depending on Wave Sequence length

Wave Sequencing

* Independently programmable:
* Samples
* Timing
* Pitch
* Shape
* Gate
* Step duration
* Step probability
* Wave Sequences can evolve continuously rather than simply cycling through a conventional waveform
* Individual Wave Sequence steps can themselves be modulation destinations.

Filters

* 2-pole LPF
* 2-pole HPF
* 2-pole BPF
* 2-pole Band Reject
* 4-pole LPF
* 4-pole HPF
* 4-pole BPF
* 4-pole Band Reject
* Multi Filter
* MS-20 LPF
* MS-20 HPF
* Polysix filter

Modulation

* 8 × modulation knobs
* 3 × ADSR envelopes
* Vector Envelope
* 4 × LFOs
* 2 × Mod Processors
* 2 × Key Track generators
* Step Sequencer Lane
* Step Pulse
* Tempo modulation
* Velocity
* Release velocity
* Gate
* Note number
* Aftertouch
* Polyphonic Aftertouch via external MIDI
* MIDI CC modulation
* Extensive modulation routing

Effects

Pre FX

* Decimator
* Graphic EQ
* Guitar Amp
* Modern Compressor
* Parametric EQ
* Red Compressor
* Ring Modulator
* Tremolo
* Wave Shaper

Mod FX

* Chorus
* Flanger
* Phaser
* Vibrato
* Ensemble
* Talking Modulator
* Wah

Delay

* L/C/R Delay
* Multiband Mod Delay
* Reverse Delay
* Stereo/Cross Delay
* Tape Echo

Reverb

* Multiple reverb algorithms

Master

* 4-band parametric EQ

Arpeggiator / sequencing

* 1 arpeggiator per Layer
* 4 independent Layers per Performance
* Extensive rhythmic and timing control through Wave Sequencing
* Step Sequencer Lane modulation source

MIDI / connectivity

* MIDI In
* MIDI Out
* USB-B
* Headphone output — 6.3 mm stereo
* Main outputs: L/Mono + R — 6.3 mm TRS
* Damper input — 6.3 mm
* MIDI 2.0 Property Exchange support
* Polyphonic Aftertouch support via external MIDI

Hardware

* 19-inch rackmount format
* 4U rackmount/desktop enclosure
* Recessed rear connections
* Adjustable desktop mounting brackets
* AC adapter powered
* Power consumption: 5 W

Physical specifications

Specification Wavestate Module
Polyphony 120 stereo voices
Width 483 mm / 19.02”
Depth 172 mm / 6.77”
Height 113 mm / 4.45”
Weight 1.7 kg / 3.75 lb
Rack format 19” / 4U
Power 12 V DC, 2500 mA
Display OLED/graphic display

Korg wavestate Module — official page⁠
