Vintage Model 5140 keyboard with 5 pin DIN connector

Generic 5140 AT Keyboard 104-Key 5-Pin DIN IBM PC XT AT FCC E5XKBM10410

Postage €6.95

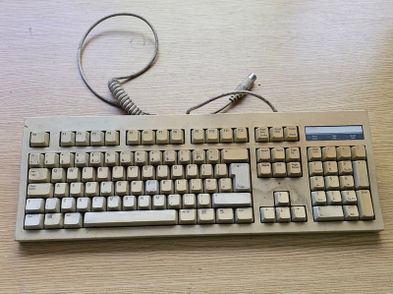

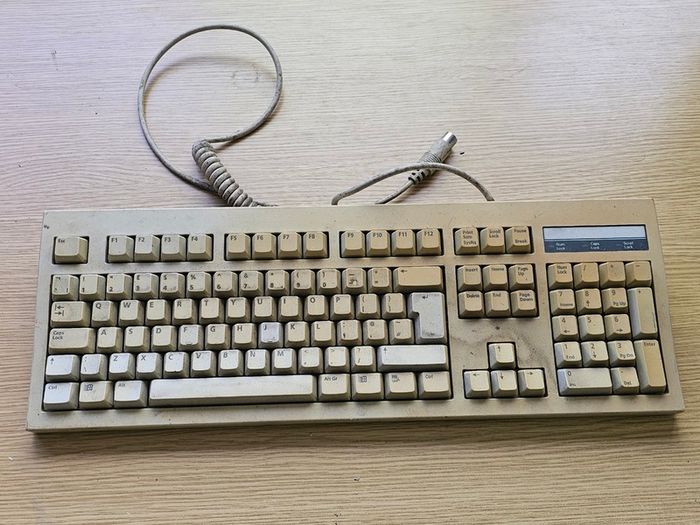

The Generic 5140 is a full-size 104-key AT-style keyboard with a 5-pin DIN connector, designed for IBM PC XT and AT-class computers running DOS. It features a standard alphanumeric layout with dedicated function keys, a numeric keypad, and navigation keys arranged in the full 104-key configuration. FCC ID E5XKBM10410 confirms US market compliance; the label also shows revision H01-A and manufacture in China.

Specifications & What's Included

Model: 5140, Revision H01-A
Key count: 104 keys, full-size layout

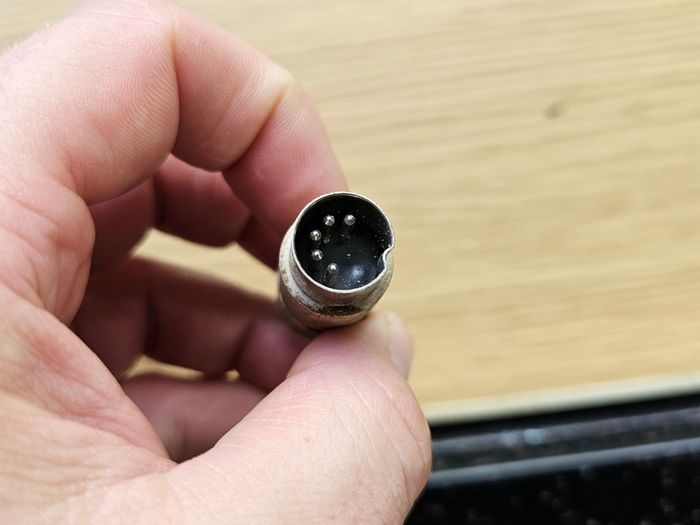

Connector: 5-pin DIN (AT interface)
Cable: Coiled, attached

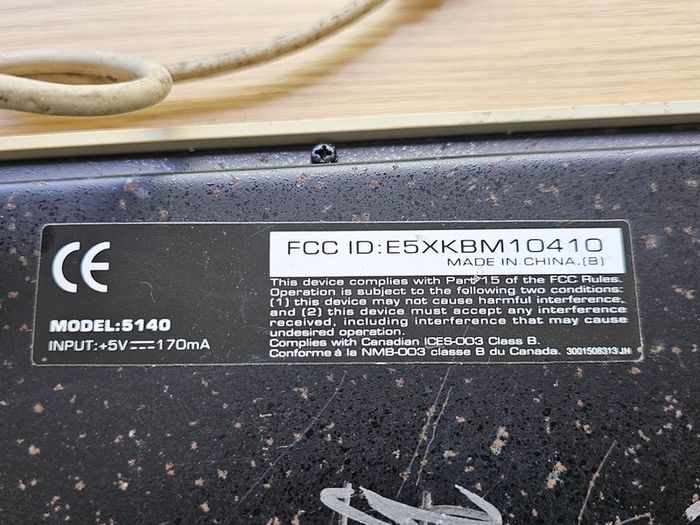

FCC ID: E5XKBM10410
Country of manufacture: China
Complies with FCC Part 15 Class B and Canadian ICES-003 Class B
Applications

AT-style keyboards with 5-pin DIN connectors were the standard input device for IBM PC AT and compatible desktop computers throughout the mid-1980s to early 1990s. They were used with a wide range of DOS-based machines from manufacturers such as IBM, Compaq, Tandy, and numerous clone builders. The 5-pin DIN connector was the dominant keyboard interface before the smaller PS/2 mini-DIN took over in the late 1980s and early 1990s. Today these keyboards are sought by hobbyists maintaining vintage IBM-compatible systems, retrocomputing enthusiasts, and anyone operating legacy industrial or embedded PC hardware that still uses the AT keyboard interface. A PS/2 adapter (not included) can make this keyboard compatible with PS/2-era systems as well.
