AG250 glass mount antenna

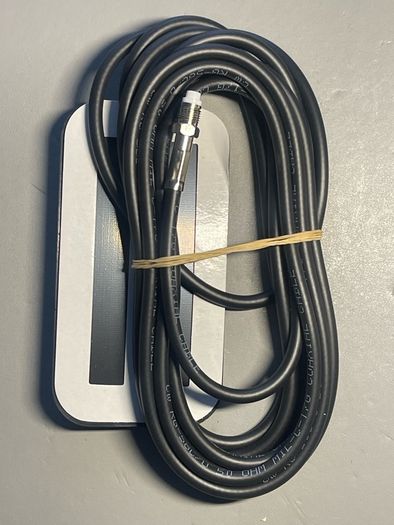

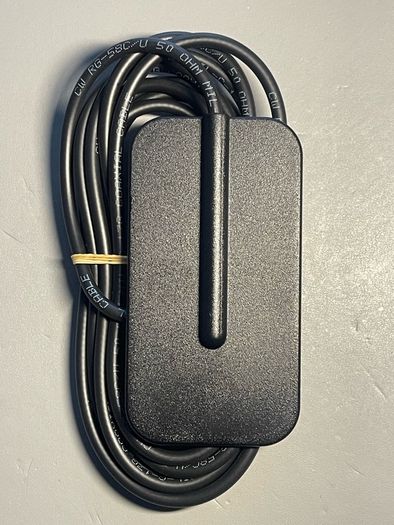

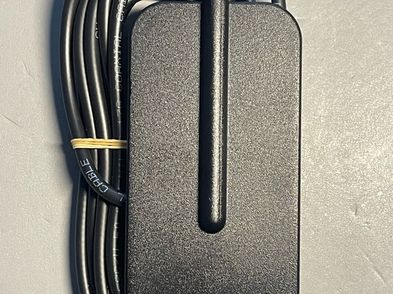

Brand new AG250 glass mount antenna

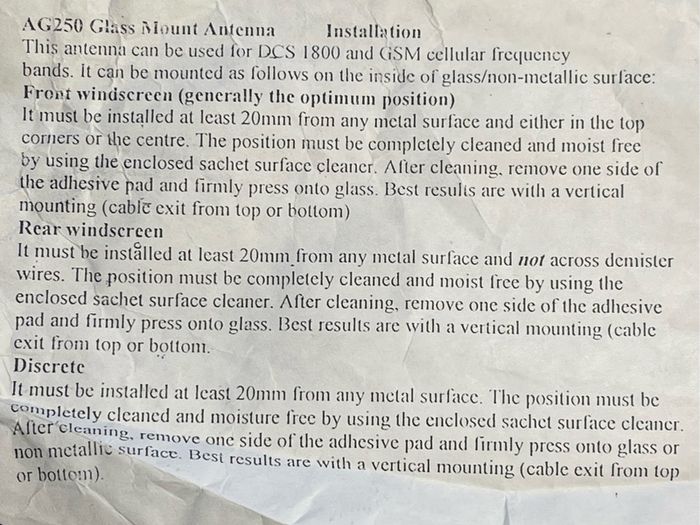

AG250 Glass Mount Antenna
Installation
This antenna can be used for DCS 1800 and GSM cellular frequency bands. It can be mounted as follows on the inside of glass/non-metallic surface:
Front windscreen (generally the optimum position)
It must be installed at least 20mm from any metal surface and either in the top corners or the centre. The position must be completely cleaned and moist free by using the enclosed sachet surface cleaner. After cleaning, remove one side of the adhesive pad and firmly press onto glass. Best results are with a vertical mounting (cable exit from top or bottom)
Rear windscreen
It must be inställed at least 20mm from any metal surface and not across demister wires. The position must be completely cleaned and moist free by using the enclosed sachet surface cleaner. After cleaning, remove one side of the adhesive pad and firmly press onto glass. Best results are with a vertical mounting (cable exit from top or bottom.
Discrete
It must be installed at least 20mm from any metal surface. The position must be completely cleaned and moisture free by using the enclosed sachet surface cleaner.
After cleaning, remove one side of the adhesive pad and firmly press onto glass or non metallic surface. Best results are with a vertical mounting (cable exit from top or bottom).
