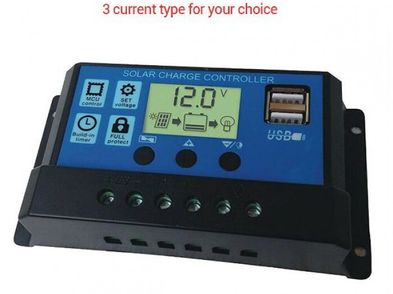

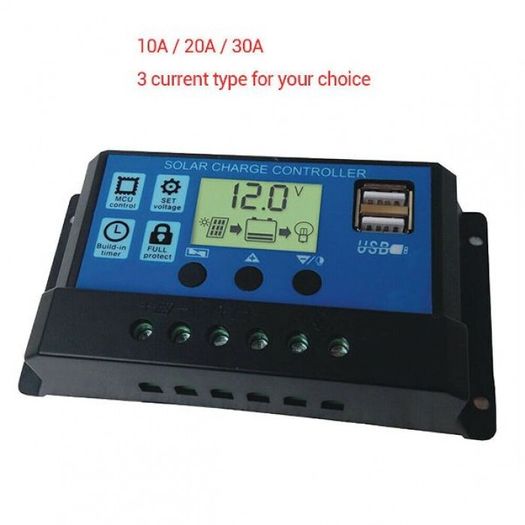

12V/24V 10A Solar Panel Battery Charge Controller with Dual USB - PWM Intelligent Regulator

This intelligent 10A Solar Charge Controller is designed to efficiently manage power from your solar panel system. Featuring fully automatic 3-stage PWM charge management, it improves battery performance and extends battery life.

Built with an industrial-grade microcontroller, this unit includes a clear LCD digital display and one-key setting for simple operation. The auto memory function saves your settings even after power loss.

Dual USB ports allow convenient charging of mobile devices (5V/3A output), making it ideal for solar systems in homes, caravans, boats, and outdoor setups.

Features:

Fully automatic 3-stage PWM charging

Built-in industrial microcontroller

LCD digital display

One-key operation

Auto memory function

Dual USB charging ports (5V/3A)

Low heat production

Reverse current protection

Safety Protections:

Short-circuit protection

Open-circuit protection

Reverse polarity protection

Overload protection

Dual reverse current protection

Specifications:

Rated Voltage: 12V / 24V Auto Recognition

Rated Current: 10A

USB Output: 5V / 3A

Standby Current: <10mA

Working Temperature: -35°C to +60°C

Floating Charge Voltage: 13.7V (adjustable)

Discharge Stop Voltage: 10.7V (adjustable)

Discharge Recovery Voltage: 12.6V (adjustable)

Material: Plastic

Color: Blue

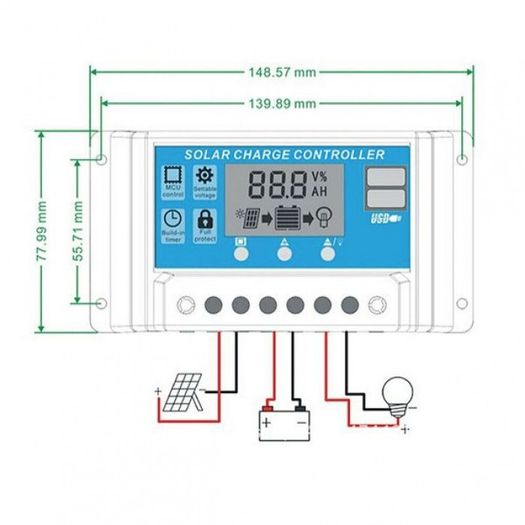

Size: Approx. 150 × 78 × 35mm

Package Includes:

1 × Solar Panel Battery Charge Controller
