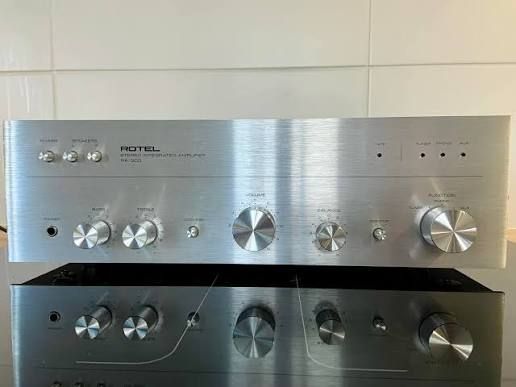

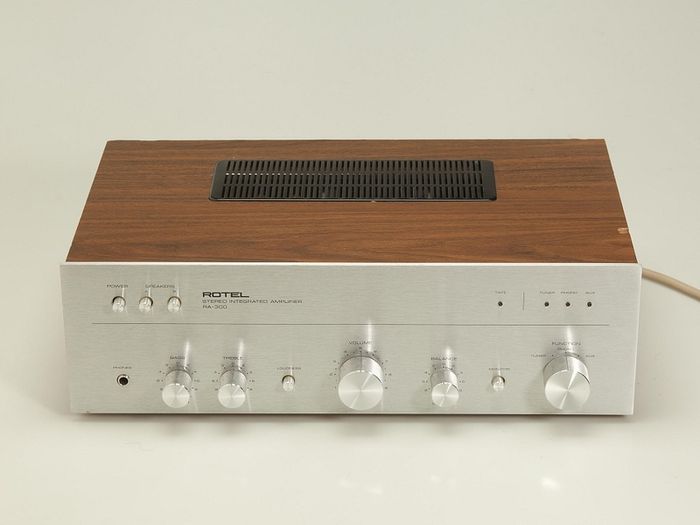

Vintage Rotel RA-300 stereo integrated Amplifier

The Rotel RA-300 is a classic, vintage integrated stereo amplifier manufactured in Japan during the late 1970s. It is highly regarded by audio enthusiasts for its robust build, classic aesthetic, and surprisingly punchy, warm musical presentation. [1, 2, 3, 4, 5]

📊 Key Technical Specifications

While some online listings mislabel its output power, the official outlines its true capabilities: [1, 2]

Power Output: 20 watts per channel into 8 ohms (stereo)

Amplifier Class: Class AB design

Total Harmonic Distortion (THD): Less than 0.08%

Frequency Response: 10Hz to 40kHz

Dimensions: 410mm (W) x 131mm (H) x 263mm (D)

Weight: 4.8 kg (10.6 lbs) [1, 2, 3, 4, 5]

🔌 Connectivity & Features

Despite its modest power rating, the RA-300 offers comprehensive connectivity options for a traditional analogue or vinyl-focused stereo setup: [1, 2]

Built-in MM Phono Stage: Features a high-quality Moving Magnet (MM) turntable input, widely praised for its warm, detailed playback of vinyl records. [1, 2, 3]

Analogue Line Inputs: Includes standard stereo RCA inputs for a Tuner, Auxiliary (Aux), and Tape In/Out loop. [1, 2]

Tone Controls: Equipped with independent Bass and Treble knobs, a Balance slider, and a Loudness switch to boost dynamics at low volumes.

Speaker Outputs: Terminals to connect one pair of passive speakers, plus a front-facing 6.35mm headphone jack. [1, 2, 3]
