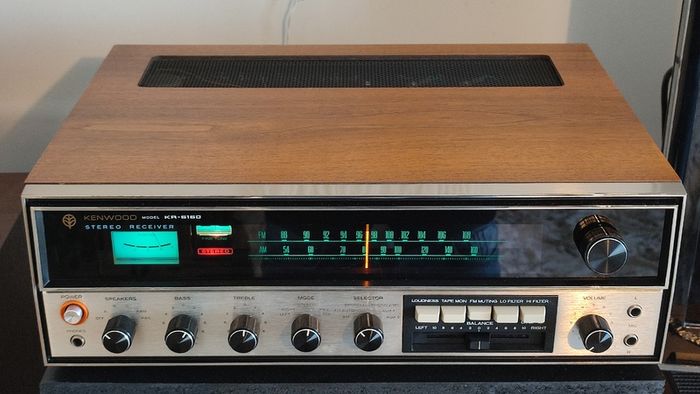

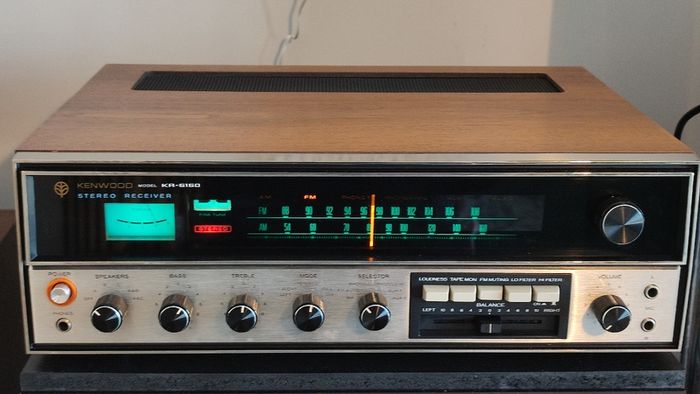

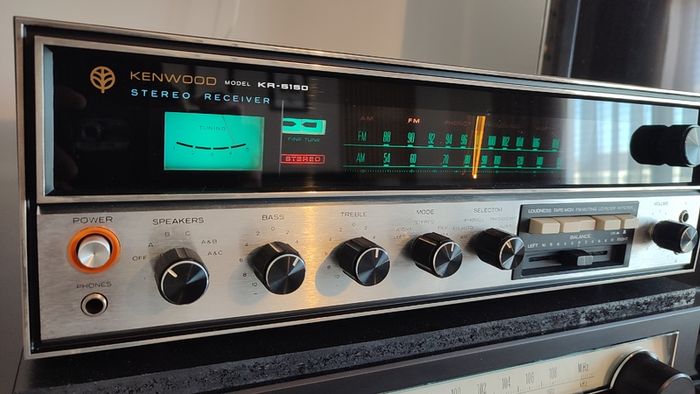

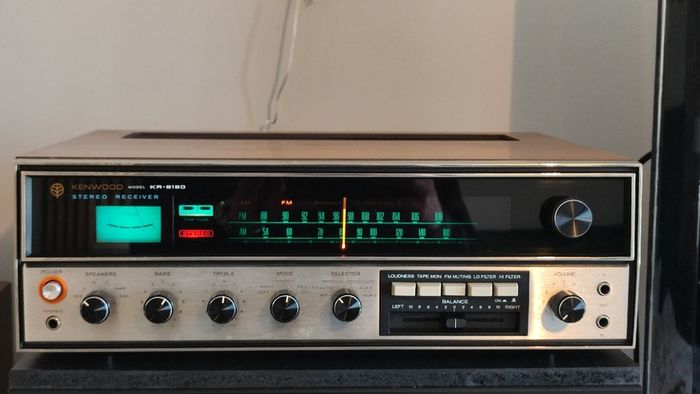

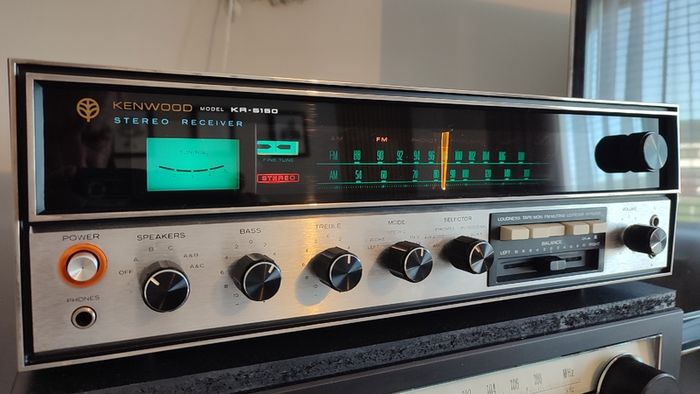

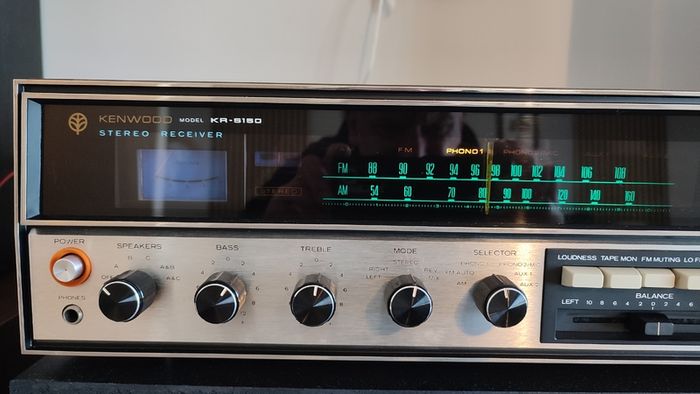

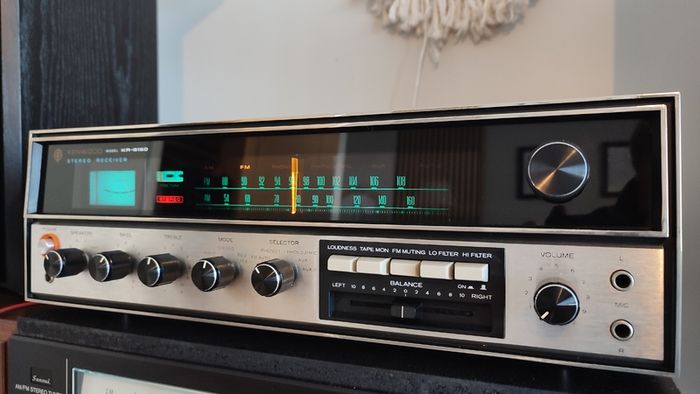

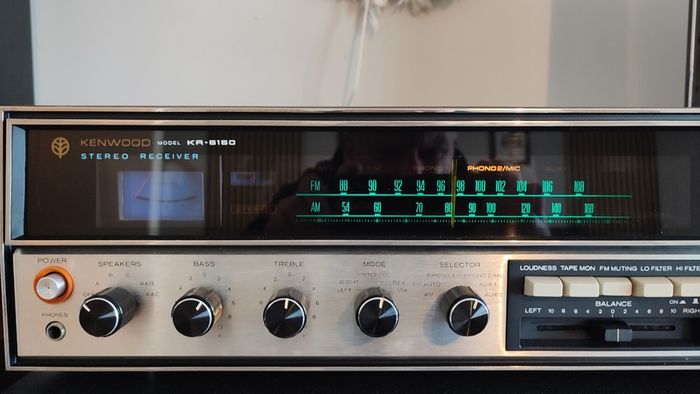

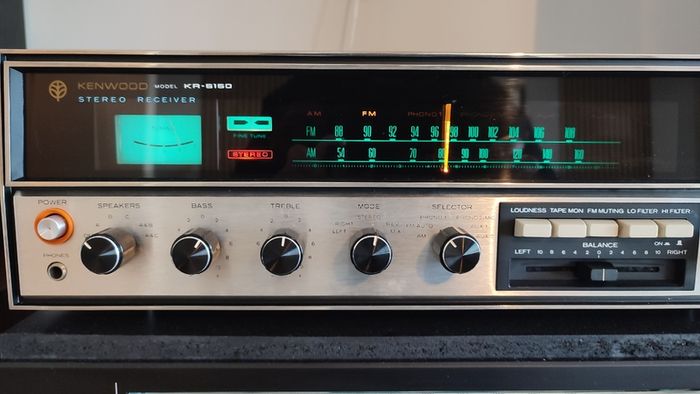

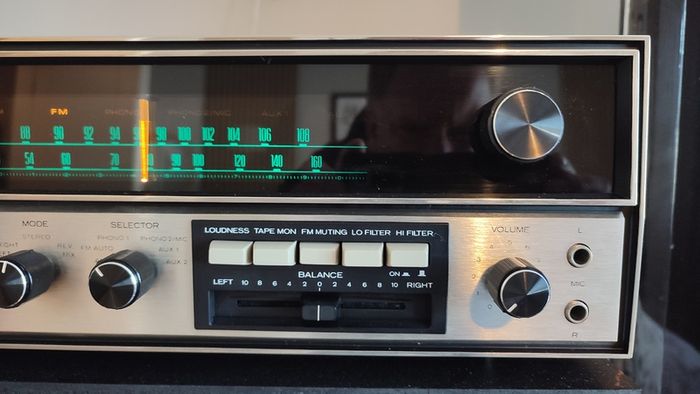

Vintage KENWOOD KR-5150 Receiver/amplifier. Fully Cleaned. Like New!

For sale beautiful Vintage receiver made in gold times in Japan, in 70's.

It has "only" 40W per channel, but trust me, it will drive really big speakers. You can read feedbacks on internet.

Also 2x aux and 2x Phono inputs and can be works like preamp.
3 pairs speakers can be connected!

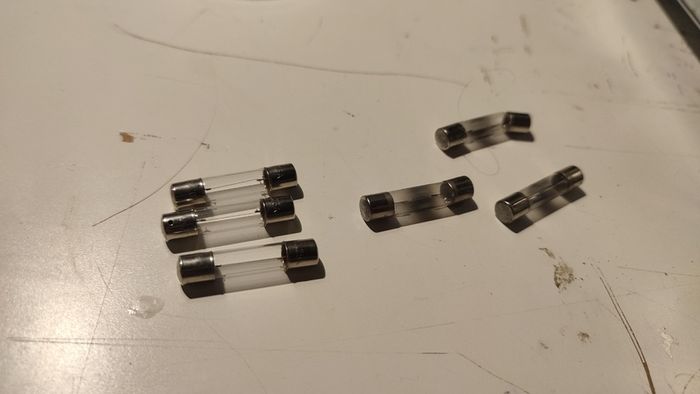

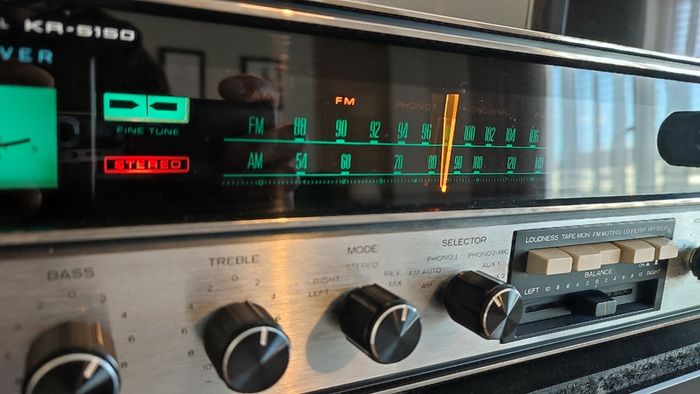

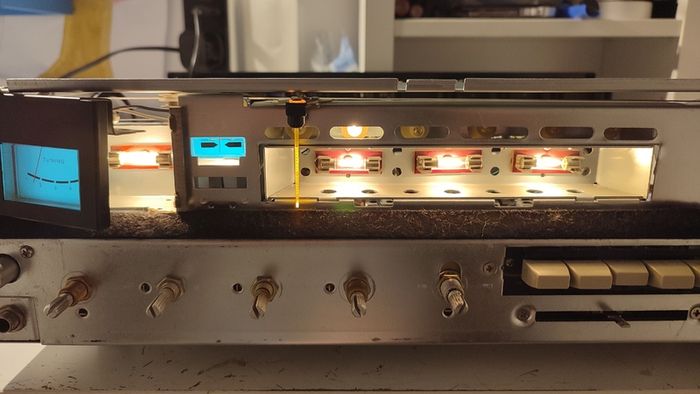

Receiver got new transparent bulbs, its fully cleaned from dust and all knobs lubricated.

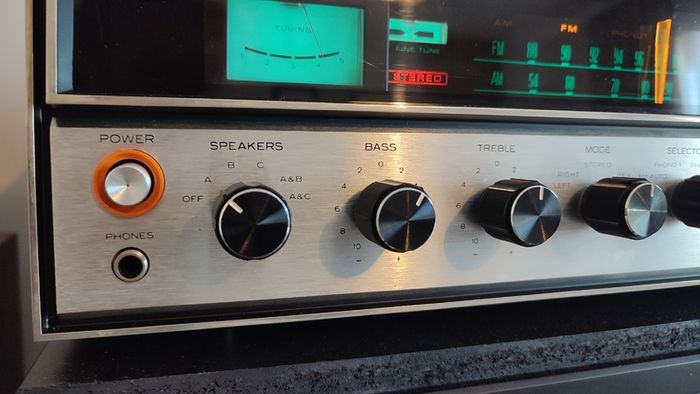

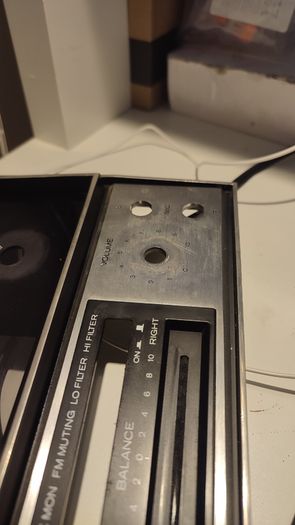

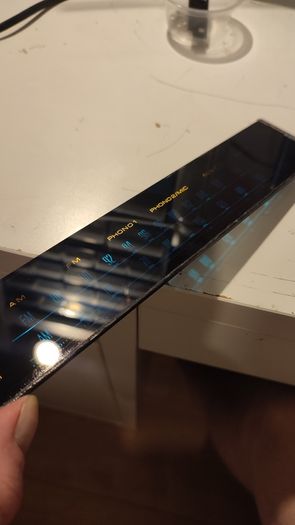

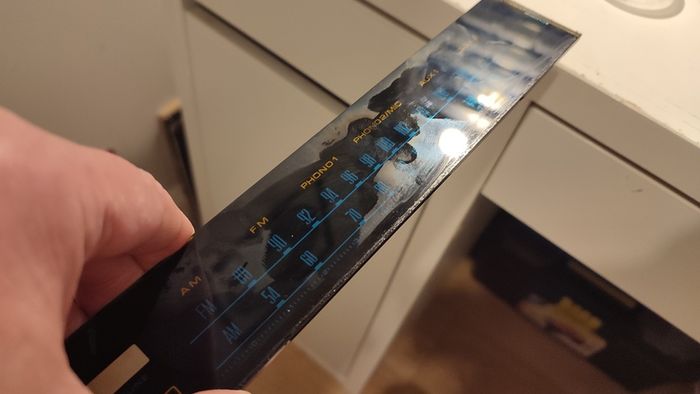

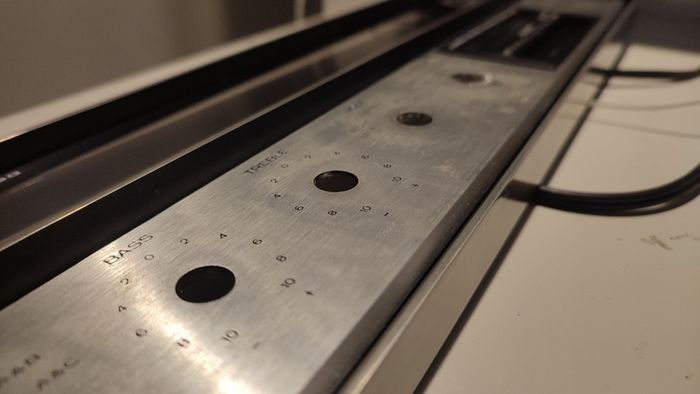

Faceplate removed cleaned and polished.

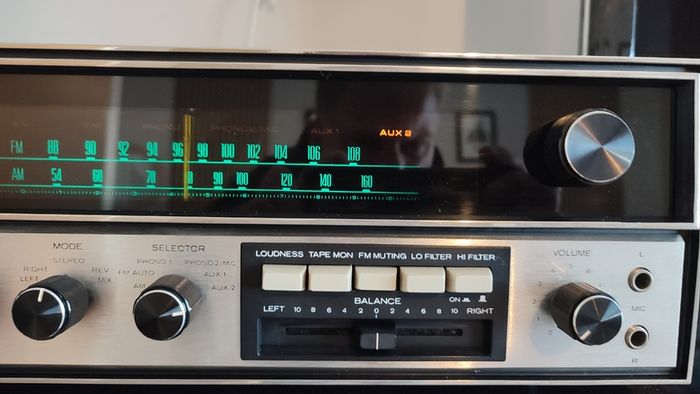

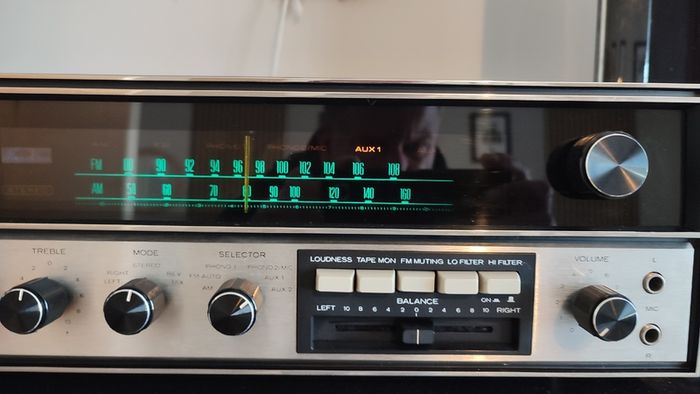

Works and looks like new!

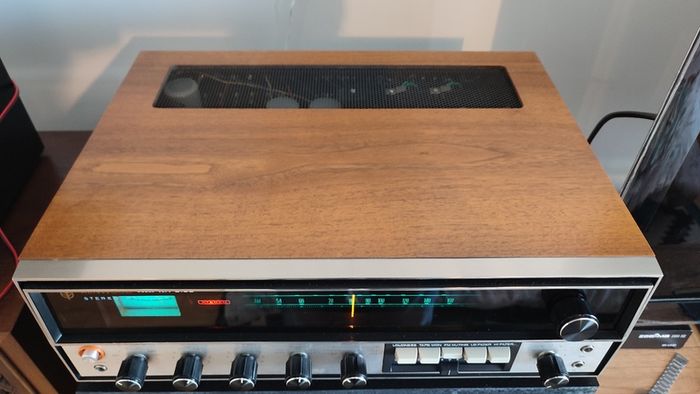

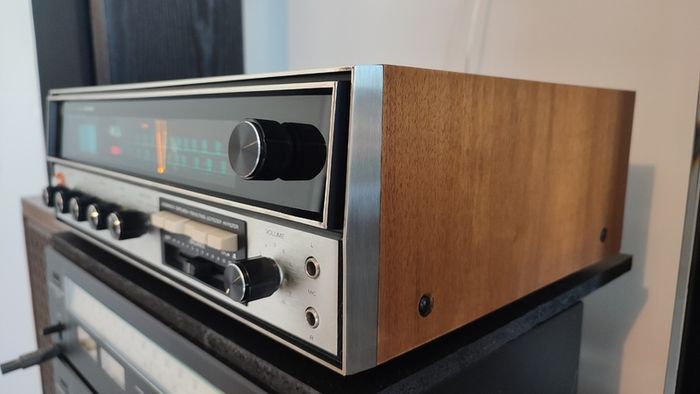

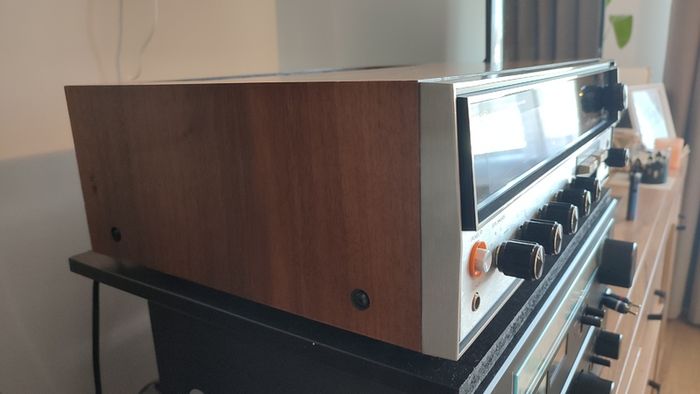

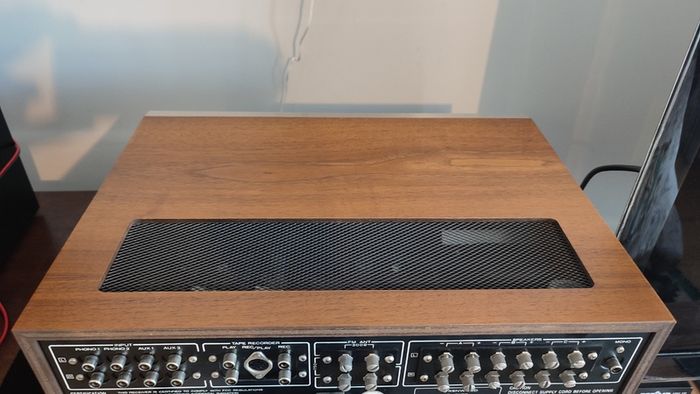

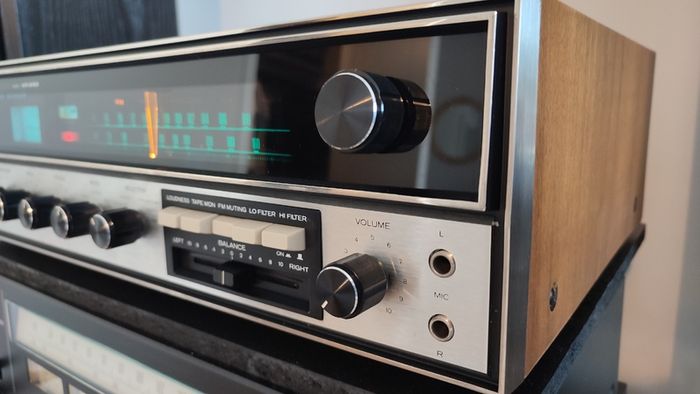

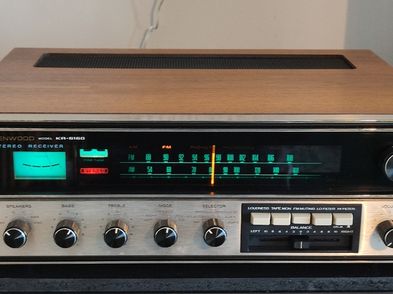

Beautiful wooden case in perfect condition.

Shipping no problem.

Also nice T+A Elektroakustic bookshelf speakers for sale. They matching perfect with Kenwood.
Check my ads.

Some specs:
General

Manufacturer: Kenwood
Model: KR-5150
Year of manufacture: 1970 - 1972
Made in: Japan
Color: Silver, Black, Walnut wood cabinet
Remote control: No
Power consumption: 200 W at full output / 40 W without signal
Dimensions: 425 x 140 x 315 mm
Weight: 9.5 kg
Original price approx.: 350 US-$, 1'300 DM

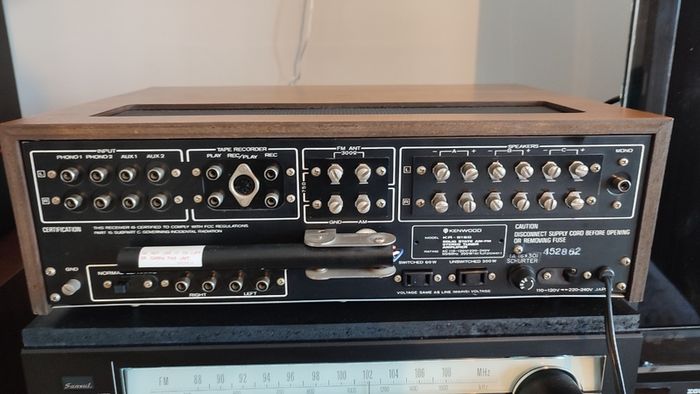

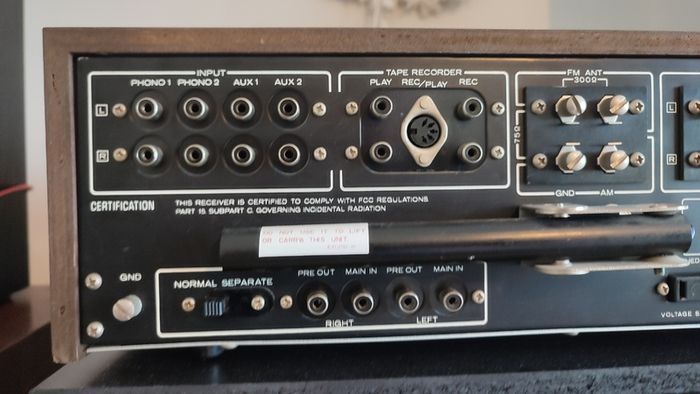

Connections

Number of inputs:
Phono 1/2: 2.5 mV / 50 kOhm
MIC: 1.8 mV / 100 kOhm

Aux / Tape Play: 150 mV / 100 kOhm
Main In: 100 mV / 100 kOhm
Antenna: FM (75 Ohm Unbalanced / 300 Ohm Balanced), AM.

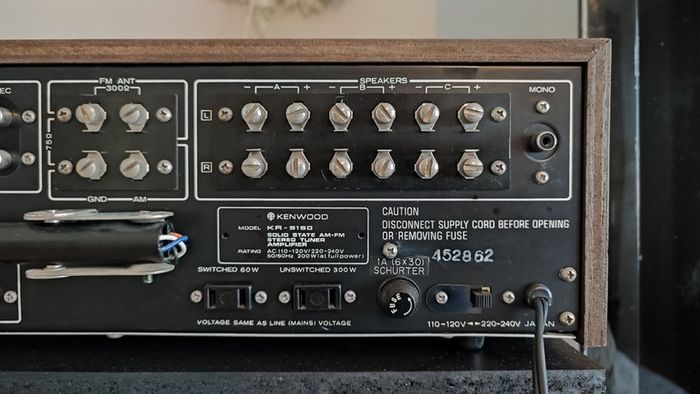

Number of outputs:
Tape Rec (RCA / DIN): 150 mV / 30 mV.
Pre-Out:
Headphones
3 speaker pairs

Technical Data Tuner Part

Reception: FM, MW
Frequencies:
FM: 88 - 108 MHz
MW: 520 - 1610 kHz

Frequency response: 20 - 15,000 Hz (± 1.2 dB, FM)
Input sensitivity:
FM: 1.7µV
MW: 15µV
Distortion factor:

Mono: 0.5 %
Stereo: 0.8

Signal to noise ratio: 65 dB
Common mode selection: 2.0 dB
Channel separation (1 kHz / 10 kHz): 35 dB / 25 dB
Selectivity:
FM: 55 dB
MW: 25 dB

Co-wave selection: 100 dB
Spurious wave selection: 45 dB
IF attenuation: 70 dB
IF attenuation:
AM suppression:

Amplifier Part Specifications

Continuous power (at distortion)
8 Ohm: 2 x 40 W
4 Ohm: 2 x 50 W
Dynamic power
8 Ohm: 110 W (IHF)
4 Ohm: 150 W (IHF)
Total harmonic distortion: 0.5 % at full modulation
Attenuation factor: 50 at 8 Ohm
Frequency response: 20 - 40000 Hz ± 1.5dB
Power bandwidth(IHF): 17 - 30000 Hz
Signal to noise ratio:
Phono 1/2: 65 dB
Microphone: 58 dB
Aux/Tape Play: 75 dB
Tone control:
Bass: ± 10 dB at 100 Hz
Treble: ± 10 dB at 10 kHz

Loudness: + 10 dB / 100 Hz, + 5 dB / 10 kHz
Low Filter : -7 dB at 100 Hz
High Filter: -10 dB at 10 kHz

Special Features

Center channel output
Separable pre- and power amplifier
Microphone inputs L + R
Kenwood original microphone MC-501 optionally available
VHF center display instrument
FM Muting
Note: in some countries the unit was originally supplied with metal cover. The walnut wood case was available under the designation SR-66 for example in the USA optionally for 19.95 US-$.
