The best selling Amplifier in history Legendary NAD 3020 series 20 model

This Needs No introduction simple

Working 100%


The NAD 3020 earned its legendary status by fundamentally shifting the entire hi-fi industry. Before its release, the late 1970s audio market was dominated by massive Japanese receivers featuring brushed aluminum faceplates, dancing VU meters, and flawless "paper" specifications that often sounded sterile in real life.

NAD rejected this trend entirely, creating a "giant-killer" that proved musicality and raw driving power mattered far more than marketing gimmicks.

🌟 Why the NAD 3020 Achieved Legendary Status

The Bjørn Erik Edvardsen Design: The brilliant engineer designed a deceptively simple circuit that focused all manufacturing costs on the internal power supply and components rather than visual aesthetics.

Over-Engineered Power Delivery: While rival amplifiers claimed high wattage but choked on real speakers, the 3020's massive transformer handled difficult electrical currents with ease. It routinely outperformed amplifiers rated at three times its 20-watt specification.

The High-End Phono Stage: The phono preamp circuit inside this budget unit was so exceptionally clean and musical that audiophiles frequently bought the 3020 just to use it as a standalone preamplifier for high-end systems worth thousands of dollars.

Democratic Audiophilia: By delivering genuine high-fidelity sound at a retail price of around £80 ($135 USD at the time), it allowed an entire generation of students, music lovers, and budget-conscious buyers to experience true high-end audio for the first time.

Unprecedented Sales: It went on to sell over 1.1 million units, making it the most successful and widely praised integrated amplifier ever manufactured.

Key Specifications & Capabilities

True Power Output: Conservatively rated at 20 watts per channel into 8 ohms, but built with a massive high-voltage power supply that provides 3 dB of headroom. It can dynamically peak at 40W (8 ohms), 58W (4 ohms), and 72W (2 ohms), allowing it to drive notoriously difficult, complex speaker loads without straining. [1, 2]

The "Series 20" Phono Stage: Unlike later variants that added a Moving Coil (MC) switch, the initial Series 20 contains a dedicated, highly revered Moving Magnet (MM) phono stage. This 6-transistor circuit was widely praised for its extremely low noise floor and musical accuracy. [1, 2, 3]

Soft Clipping: Features a proprietary NAD toggle switch on the back panel that limits output distortion if the amplifier is driven past its limits, protecting your speakers from clipping damage. [1, 2]

The "Upturned" Rear Ledge: A unique design trait of the early Series 20 models is that the RCA input jacks are arranged horizontally on an upward-facing ledge on the back rather than flush against a vertical backplate. This allowed the entire unit to run off a single internal circuit board to save manufacturing costs. [1]

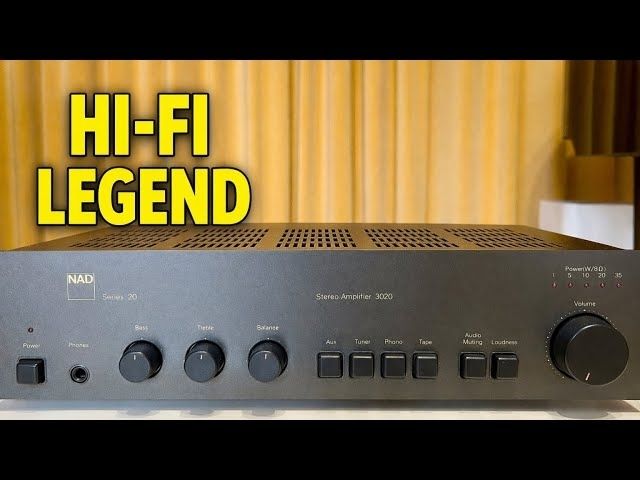

Front Control Layout

Source Selection: Push-buttons for Aux, Tuner, Phono, and Tape.

Acoustic Tailoring: Bass and treble knobs meticulously calibrated to adjust frequency extremes without muddying the critical midrange tones. It also includes a Loudness button to boost bass during low-volume listening.

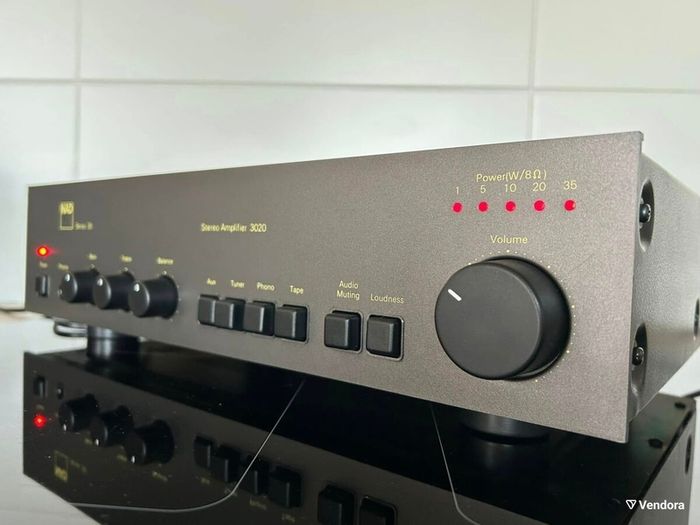

LED Power Display: A 5-segment red LED strip that acts as a visual power output indicator, a definitive 1980s styling cue.

Audio Muting / Mono: A front toggle switch that drops volume instantly by 20 dB. Note that some very early Series 20 models used leftover faceplates where this switch is labeled "Stereo/Mono" but actually functions as an audio mute. [1, 2, 3]
