Surround Sound System

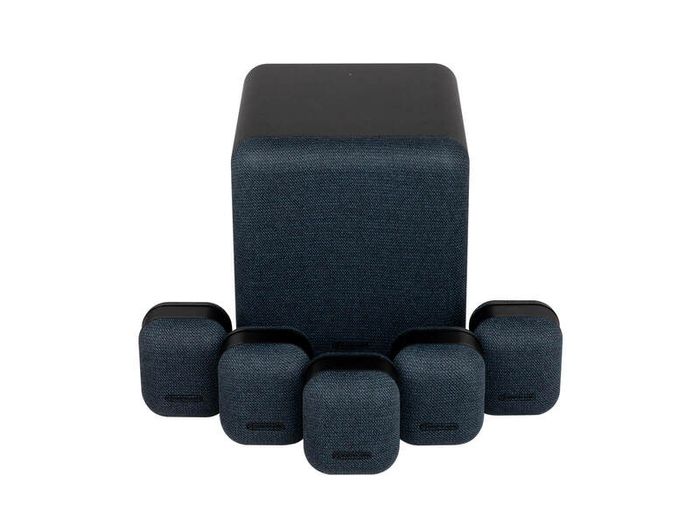

MASS 5.1
Designed to deliver full-scale audio fidelity from compact, stylish speakers and a discreet subwoofer, MASS combines all Monitor Audio’s award-winning expertise with sophisticated looks. The result is a new level of performance for music, gaming and movie sound alike.

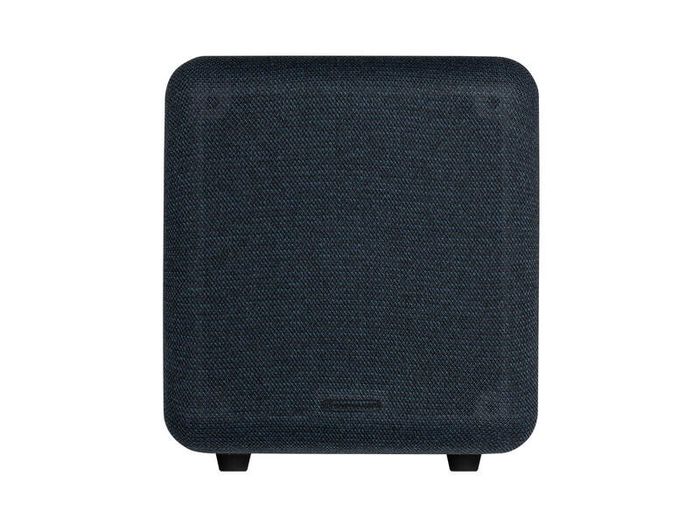

MASS Subwoofer
Designed to augment the deepest bass of Hollywood soundtracks, state-of-the-art games and music alike, the MASS Subwoofer delivers reinforced bass from its 203 mm long-throw driver powered by 120 watts of shove. It’s also compact enough to be discreetly positioned in a room.

A sealed 15 mm MDF cabinet with 18 mm baffle, ample Class D amplification granting both strength and efficiency, and a big Metal Matrix Polymer (MMP II) driver make for deep, solid, rapid and well controlled low frequency presence.

MASS Subwoofer digs deep and hits hard enough to make movies and music spring to life. And though compact enough to be stowed out of sight, the MASS Subwoofer looks and feels as good as its Satellite partners in its choice of smart cloth finishe

System Format
Sealed cabinet, 15 mm MDF construction with 18 mm base and front baffle
Internally braced with sealed amplifier compartment

Lower Frequency Limit
-3 dB @ 35 Hz / -10 dB @ 30 Hz (Free Field)
Default preset: Music, -3 dB @ 34 Hz / -10 dB @ 25 Hz (In Room)

Upper Frequency Limit
-6 dB @ 150 Hz

Drive Unit Complement
1 x 8" (200 mm) MMP II subwoofer driver featuring a 2" long throw voice coil

Linear Driver Excursion
15 mm Peak to Peak

Amplifier Output
120 W

Amplifier Classification
Class D with high current Switch mode power supply (SMPSU)

Phase Control
0 Degrees & 180 Degree pure Invert

Low Pass Filter Alignment
2nd order (12 dB/Octave), from 50 Hz to 150 Hz

Auto Sensing Input Requirements
Line Level >3 mV Auto Standby feature after 20 minutes

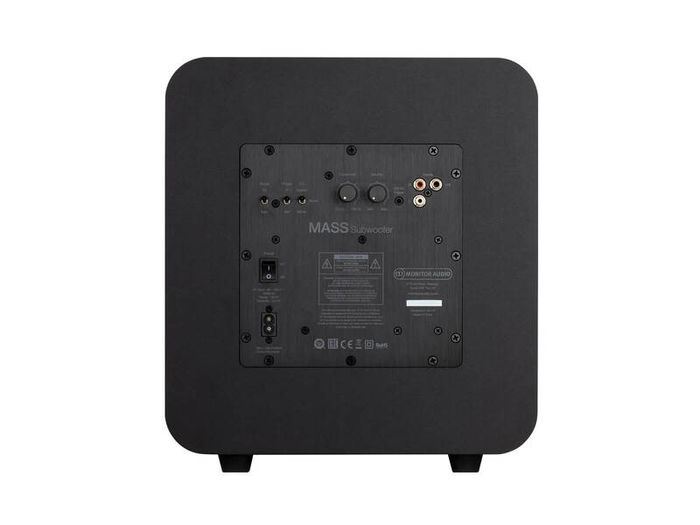

Audio Input/Outputs
LFE unbalanced input RCA
Stereo unbalanced inputs RCA

Connection
12 V Trigger in (3.5 mm mono mini-jack, 4v threshold)

Electrical Certifications
CE / CB/ ETL / Fcc / CCC/ ErP (Energy saving compliant)

Mains Input Voltage
100 – 240 Vac, 50/60 Hz

Power Consumption
Maximum 130 W, Standby <0.5 W (ErP compliance)

Fuse Type
20 mm T8AL 250VAC

External Dimensions (Including Amp, Drivers and Terminals (H x W x D))
340 x 320 x 350 mm (133/8 x 125/8 x 133/4")

External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D))
359 x 320 x 350 mm (141/8 x 125/8 x 133/4")

Key Features
MASS Satellite

Two-way, sealed cabinet, tuned for wide dispersion and optimal integration with MASS Subwoofer
Rigid, braced and fibre-reinforced cabinet
Custom-weave cloth finish, unique to Monitor Audio
Compact design, with point-source acoustic alignment for precise audio focus and response
31/2" (89 mm) Mid-Bass driver featuring;
– MMP II (Metal Matrix Polymer) cone technology
– Advanced FEA simulation used to optimise the cone & motor unit performance
3/4" (19 mm) soft dome tweeter with thermal protection
Integrated stand-mount point and wall bracket (compatible with MASM bracket)
Rear cover concealing binding posts
MASS Subwoofer

Compact, sealed enclosure with braced 15 mm MDF construction and rigid 18 mm MDF baffle
Custom-weave cloth finish grille
8" (203 mm) long-throw driver with MMP II cone
120 W Class-D amplification for efficient, powerful performance
Digital Sound Processing DSP providing accurate filter characteristics
Advanced limiters guarantee controlled, authentic sound
3 pre-set modes (‘Music’, ‘Movie’, ‘Impact’) for superlative acoustics

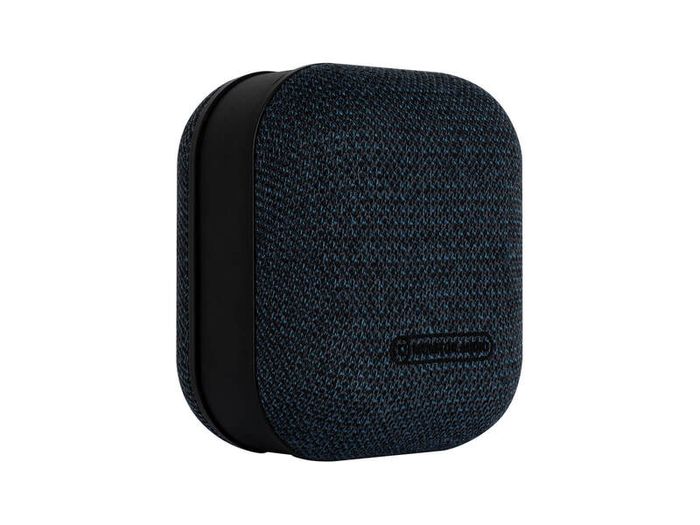

MASS Satellite
Inside the cabinet, a Metal Matrix Polymer (MMP II) mid/bass driver and soft dome tweeter deliver outstanding full-range audio performance. Outside, a choice of luxurious cloth finishes, and integrated cable management, guarantee an attractive look in any environment.
