Sony Stereo Receiver Phono Input and Bluetooth

Specifications
Features
Stereo Receiver Phono Input and Bluetooth® Connectivity | STR-DH190
Made for your record collection
The STR-DH190 brings together your vinyl and digital music. The perfect match for the PS-HX500 or PS-LX300USB turntables, you can switch effortlessly between analogue and digital with simple BLUETOOTH® connectivity and connect to all your equipment.
Connect your turntable with the phono input
STR-DH190 Bluetooth®

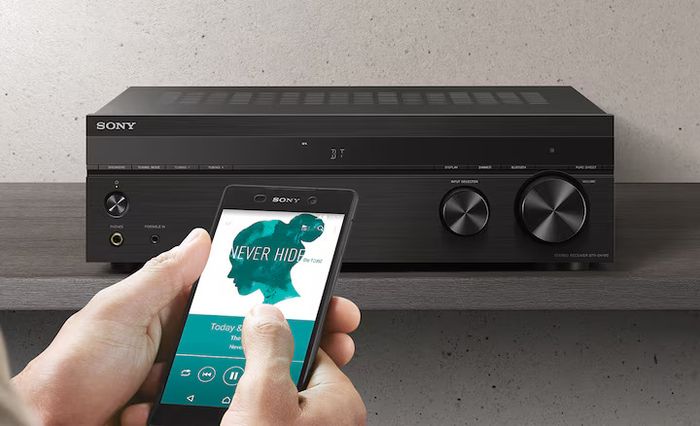

Bluetooth® connectivity

Smarter Bluetooth® connectivity
Not only can you connect to the STR-DH190 through Bluetooth® and play all your favourite tracks, but with Bluetooth® Standby, you can turn your receiver on straight from your paired smartphone or tablet.

STR-DH190 Bluetooth® connectivity

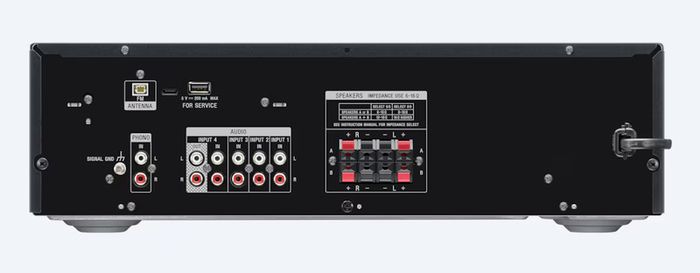

Connect all your equipment
The STR-DH190 has four analog audio inputs and one output, for easy connection to your audio recording device and other audio equipment.
Built for an exceptional listening experience
Every component in the STR-DH190 has been designed for detail and clarity.

Precision audio with a reinforced chassis
A reinforced frame and beam chassis design reduces transmitted vibration from speaker sound pressure for more focused, powerful sound.

STR-DH190 heat sink
Expertly designed to reduce vibration
Rigid parts hold the heat sink in place, reducing transmitted vibration from speaker sound pressure.

STR-DH190 Phono and transformer
The optimal layout for the phono and transformer
The phono amplifier and transformer are positioned optimally to minimise interference from the magnetic field
Flexible speaker installation
The STR-DH190’s A+B function lets you connect two sets of front speakers. You can easily switch between A or B or use both together to run outdoor speakers or set them up in a different room from the same amp.

Size & Weight
Dimensions (W x H x D mm)
430 x 133 x 284 mm
Weight (kg)
6.7 kg
General Features
Auto Standby
Yes
Power Requirement
AC 230V 50 / 60Hz
Amplifier
Number of Amp. Channels
2ch (Supporting Speaker A+B)
Power Output
100 W + 100 W (8ohms, 1 kHz, THD 1%)
Speaker Impedance
6 - 16 ohms
Audio　Features
PHONO VOLUME OFFSET
Yes
Interface
Input and Output Terminals
Analog Audio Input (4), Phono input (1), Headphone Output (1)
Speaker Output Terminals
A / B
Network Connectivity
Network features
Bluetooth® Receiver
Tuner Features
FM/AM
Yes / No
Preset Channel (FM/AM)
TTL30 (30 / - )
RDS
Yes
Eco and energy saving
Power Consumption (Off Mode)
not available
Power Consumption (Standby Mode)
0.3W
Power Consumption (Networked Standby Mode) – Terminals
1W (Bluetooth, all terminals and networks connected)
Standby Mode Activated
After 19 minutes
Networked Standby Mode Activated – Terminals
After 19 minutes (Bluetooth)
Wireless Network(s) On/Off Switch
"AMP MENU" (BT -> BT POWER -> BT ON/OFF)
