Sony ES Series Amplifier

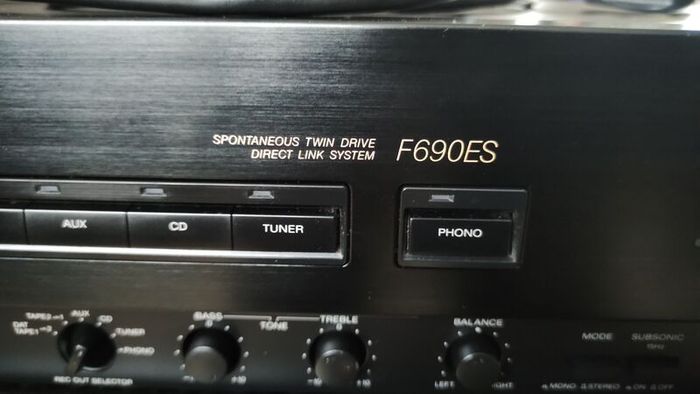

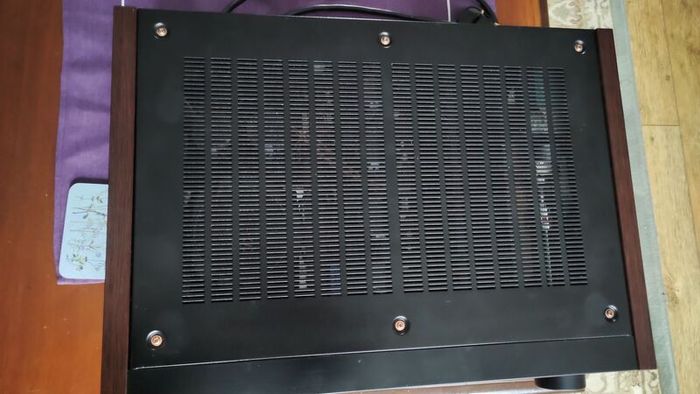

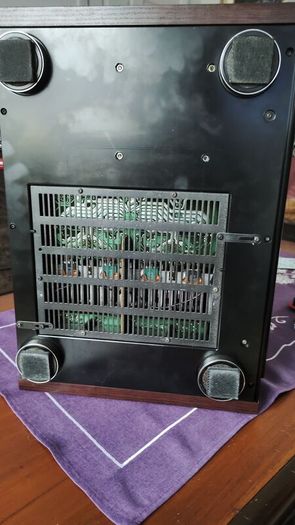

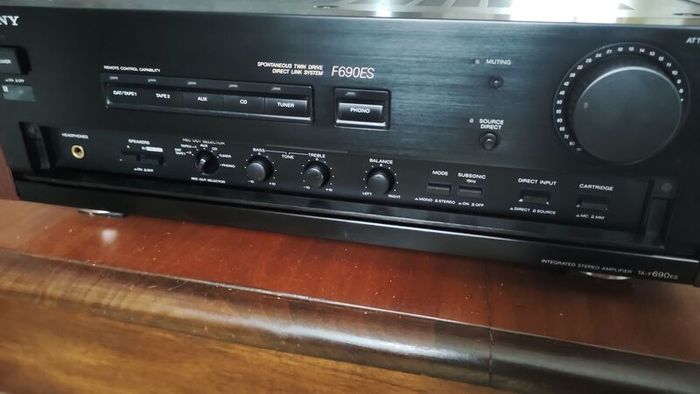

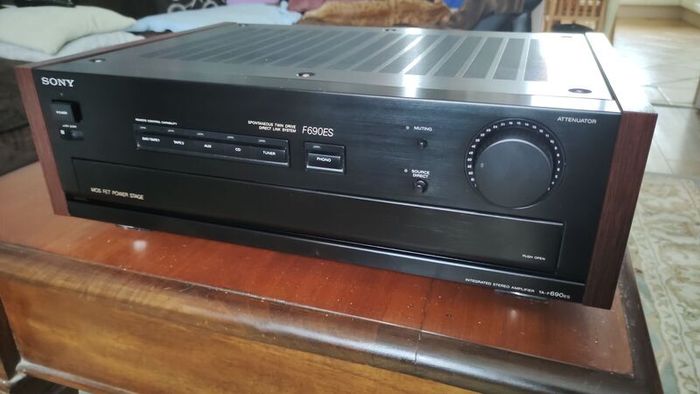

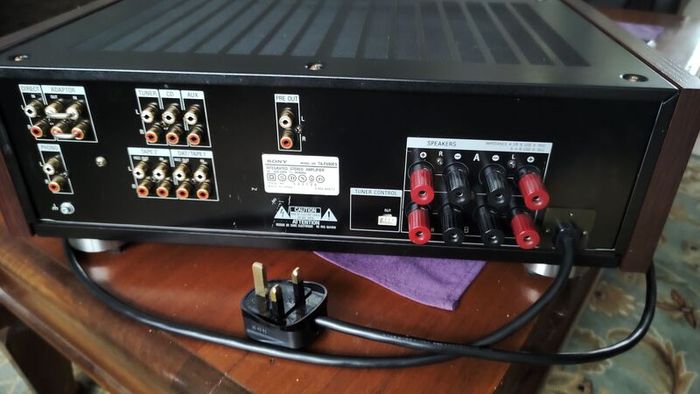

For sale is the legendary Sony TA-F690ES amplifier. It's in perfect visual and technical condition, as seen in the photos. The amplifier has undergone a comprehensive cleaning (including switches, potentiometers, and sockets), and the main potentiometer, selector switch, and "Source Direct" have been replaced. It's ready for many years of continued use.
No remote controller!

Specification!!!

General
Manufacturer: Sony

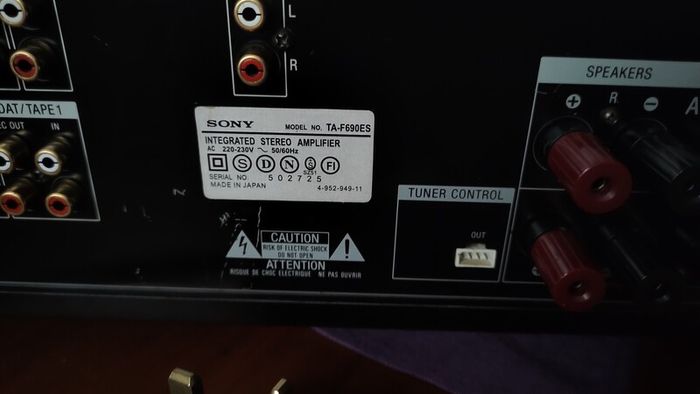

Model: TA-F 690 ES
Type: Integrated amplifier
Years of manufacture: 1992 - 1994
Made in: Japan
Color: Black, wooden sides TAC-103 optional
Power consumption: 290 W (max.), idle: 50 W
Dimensions: 430 (470) x 150 x 375 mm (with wooden side panels) (WxHxD)
Weight: approx. 12,5 kg
Original price: 1'150 DM (RRP)
Wooden side panels TAC-103 optional: 99 DM

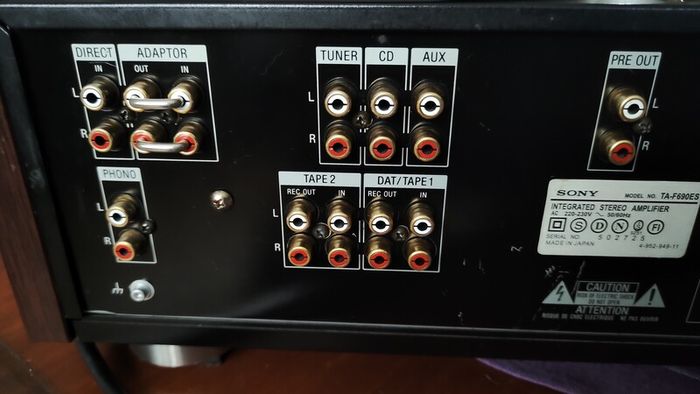

Connections

Number of inputs: 7 (6 switchable by remote control, Direct-In (7th) only on the unit).
Phono MM: 2,5 mV (50 kOhm)
Phono MC: 0.17 mV (100 Ω)
Tuner, CD, Direct In, Tape 1,2, Aux, Adapter: 150 mV (50 kOhm)
Number of outputs: 4
Pre Out: variable up to 1 V (100 Ω)
Tape Rec Out 1,2, Adapter: 150 mV, (1 kOhm)
Headphones: 25 mW (8 Ω)
Loudspeaker switchable: A / B / A+B / Off


Technical Data

Continuous power (RMS) both channels simultaneously controlled.
8 Ω: 2 x 105 watts DIN
4 Ω: 2 x 145 W DIN
Dynamic power
8 Ω:
4 Ω:
Dynamic headroom: 2 dB at 4 Ω, 1.2 dB at 8 Ω.
Total harmonic distortion: 0.005% at 10 W output power at 8 Ω.
Attenuation factor: 100 at 8 Ω/1kHz.
Frequency response: 2 Hz - 200 kHz +0/-3 dB
Signal-to-noise ratio: 105 dB (high level, 150 mV), phono MM: 95 dB (5.0 mV), MC: 77 dB (0.5 mV).
Bias setting: mV
Tone control: Yes
Bass: ± 7 dB (100 Hz) Treble: ± 6 dB (10 kHz)


Special Features

Gibraltar drivers= anti-magnetic, very good resonance damping, rock-hard base cast from polyester resin calcium carbonate with glass fibre fabric.
MOS-FET power amplifiers= realize a high output power over a wide frequency range

Class-A driver stages
Toroidal transformer encapsulated (low stray field), power supply with 2 additional electrolytic capacitors (no longer present in the successor TA-F606ES)
Motor-driven input selector switch
Motor-driven dust-proof volume potentiometer (120 kOhm)
Pre Out, switchable via Speaker B,= for connection of separate power amplifiers or active speakers
Direct-In= for bypassing the input and rec out selectors
Phono MM/ MC selector
Record Out selector
Source Direct switch
Muting Switch: -∞ dB
Subsonic Filter: 6 dB/octave below 15 Hz
Gold-plated RCA jacks

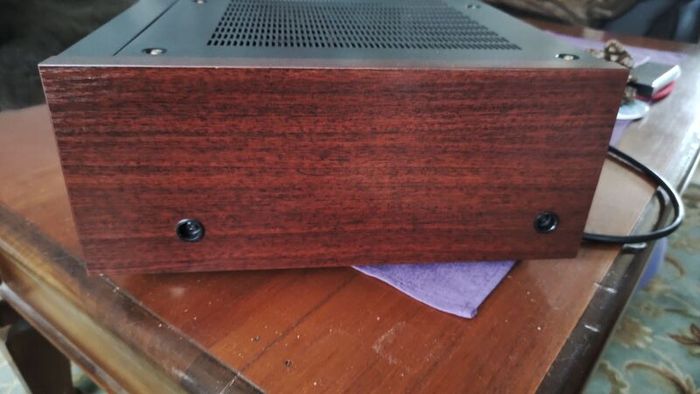

Wooden side panels available as an optional extra
System: Low-noise NAB-equalized preamplifier with high gain, passive tone control, pure complementary SEPP power amplifier, MOS-FET power amplifiers
