ReVox A77 Mk1 "Suitcase" Tape Recorder 2 track

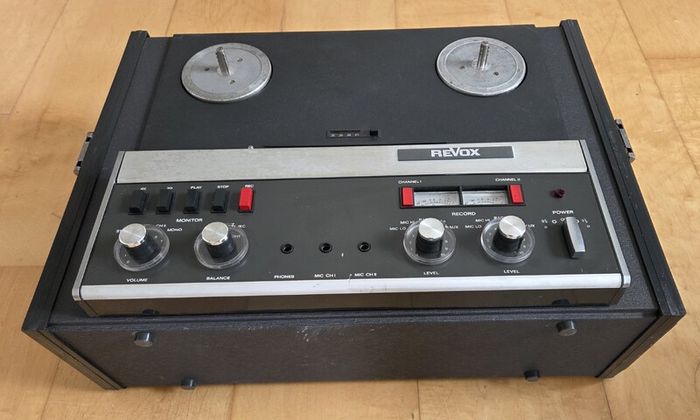

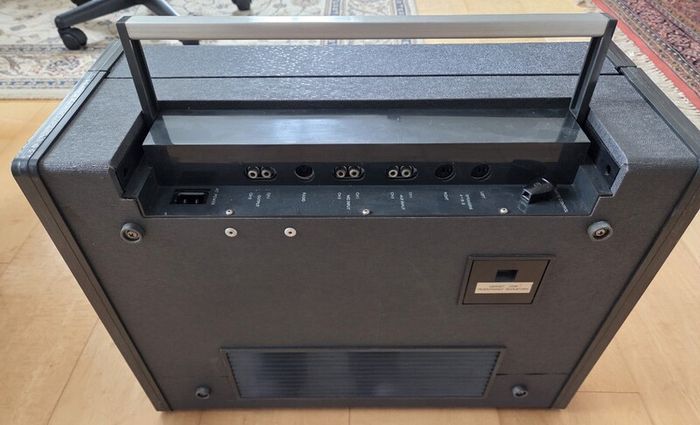

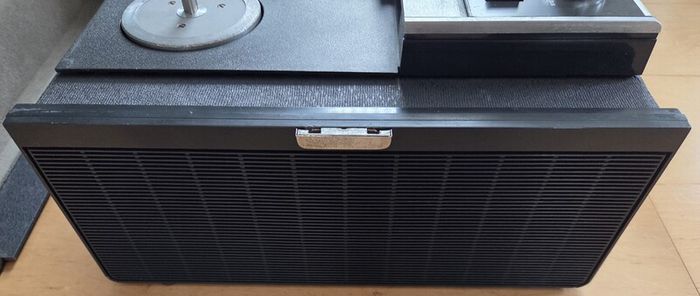

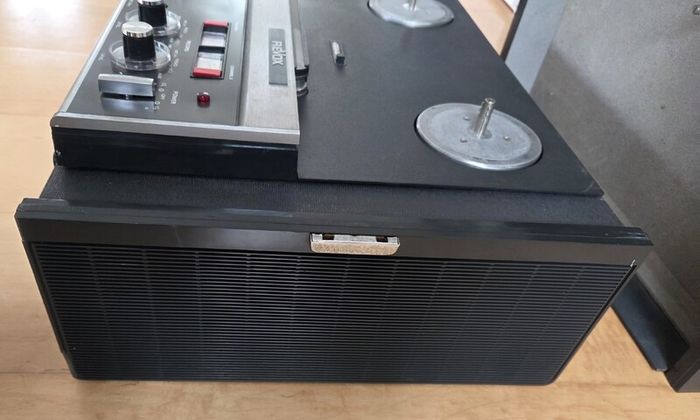

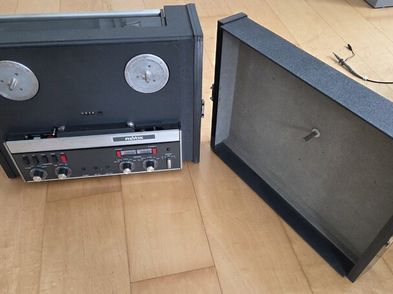

This is the suitcase version with stereo amplifier cards and dual range stereo speakers in the sides of the enclosure.

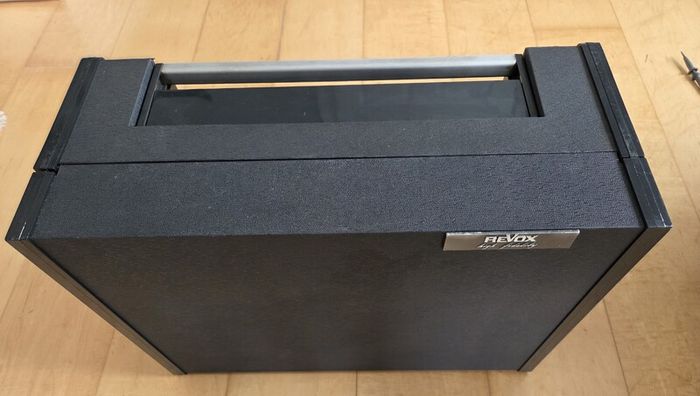

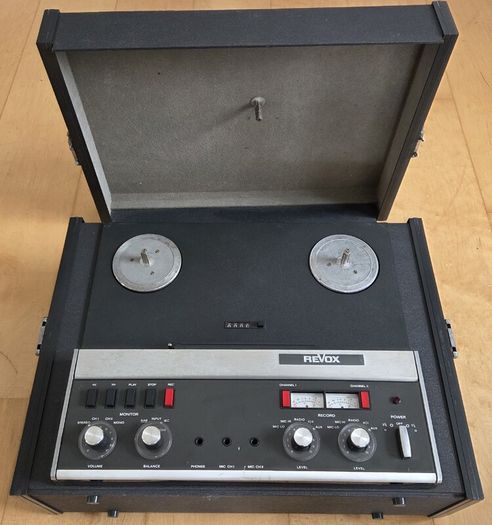

Complete with it's original cover - with space inside for tape reel storage
Supplied with a new power cable.
The case is in excellent condition for it's age.

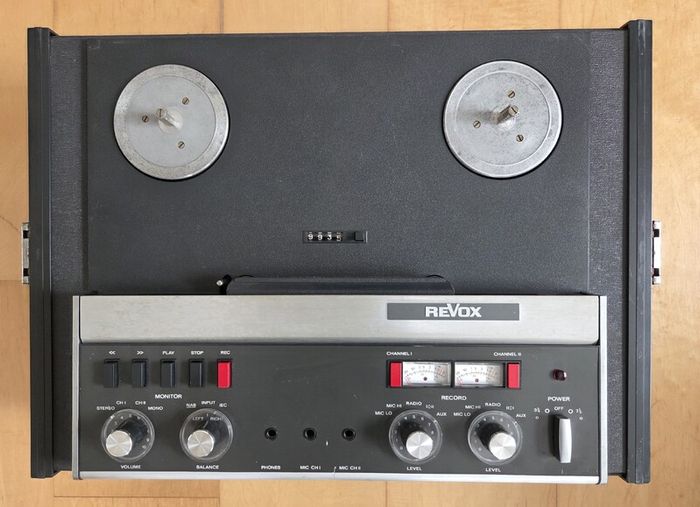

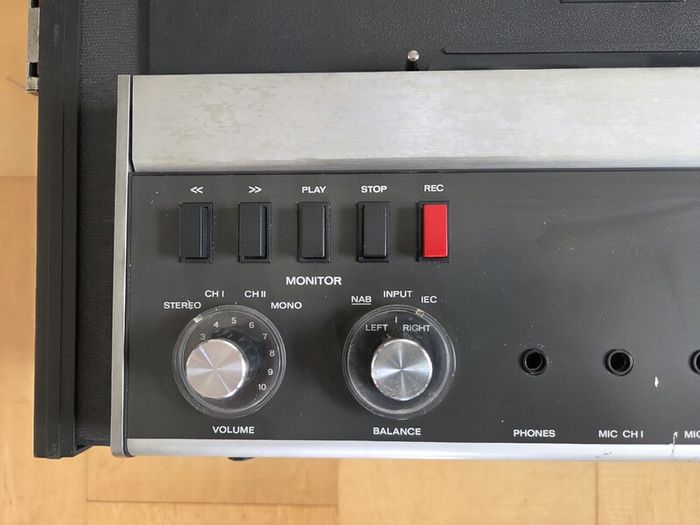

The machine is a Mk 1 internally but has a Mk III front plate, VU meters and controls.

The A77 has been fully refurbished and serviced by me.
Heads and guides thoroughly cleaned
RIFA surge capacitors replaced
Electrolytic capactors and preset potentiometers on all plug in boards replaced
Switches thoroughly cleaned
Brakes adjusted

Fully calibrated to RTM SM911
Playback head alignment
Record head alignment
Playback and record levels
Frequency response check and adjustment

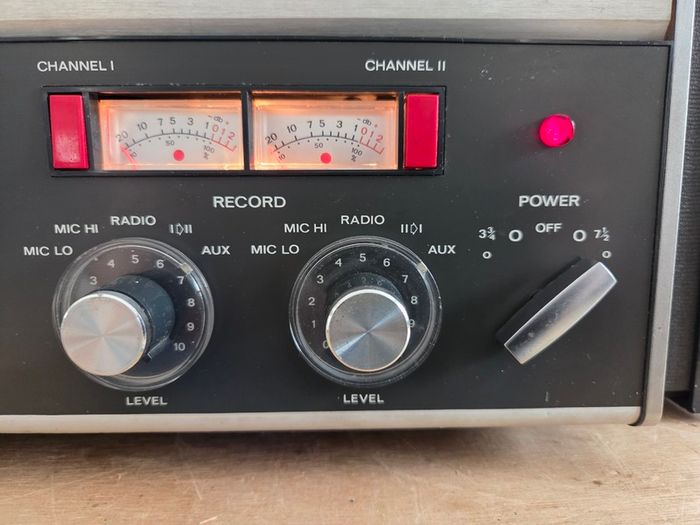

VU meter calibration

Published Technical data:

3 heads: record, playback, erase
3 motors 2 x spool and 1 x capstan
Reel sizes up to 10.5 inches
Speeds 33/4 and 7 1/2 ips
Wow and flutter less than 0.08%
Frequency response 30 Hz to 20 kHz
Signal to noise ratio 66 dB
Total harmonic distortion 0.6%
Output: 1.23 V (line)
Input 35 mV (line) 0.15 mV (microphone)
54 x transistors, 32 x diodes
41 cm (height), 45 cm (width), 20 cm (depth)
Weight 25 kg

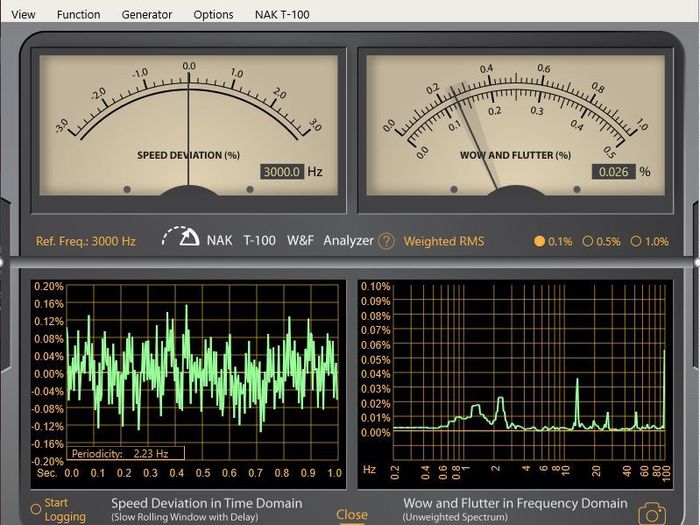

Wow & Flutter performance is much better than published specification


And it Sounds Great !
