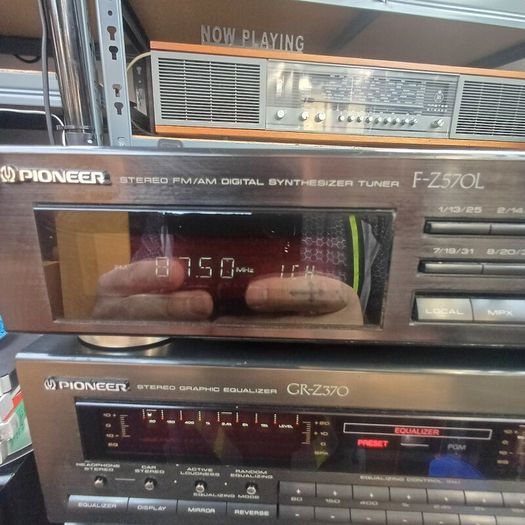

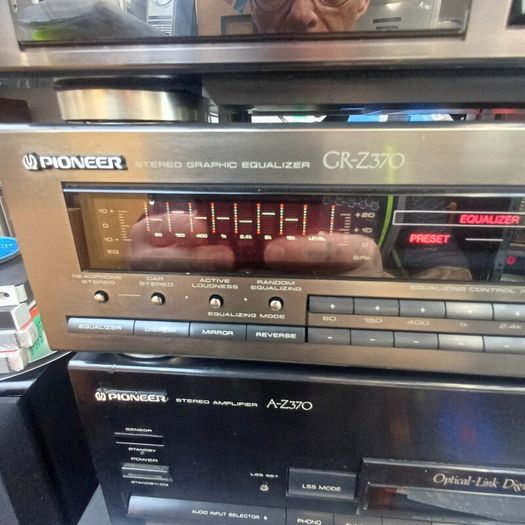

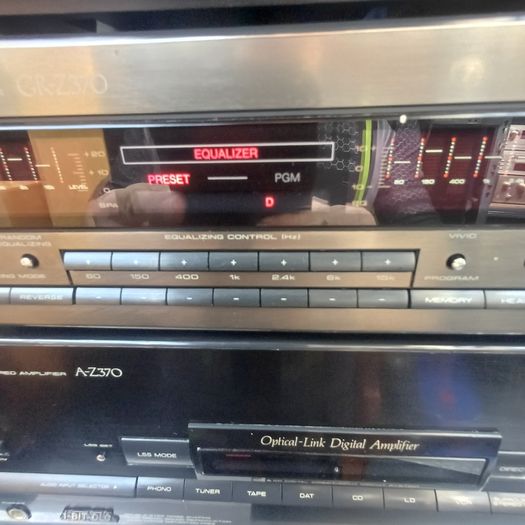

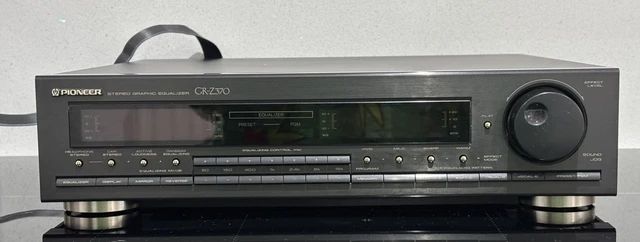

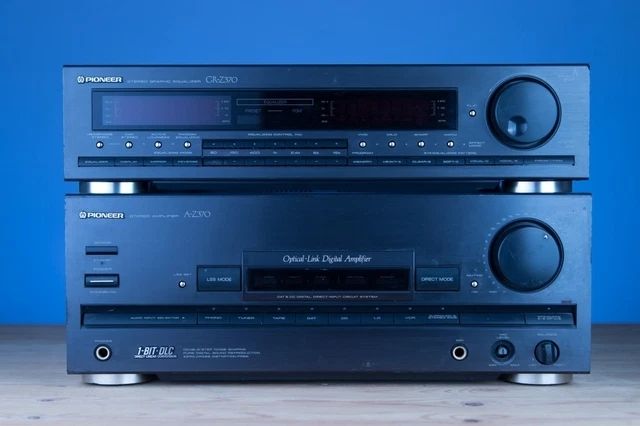

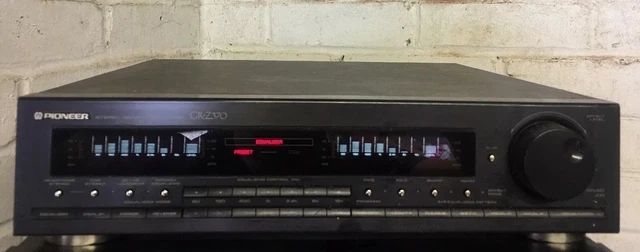

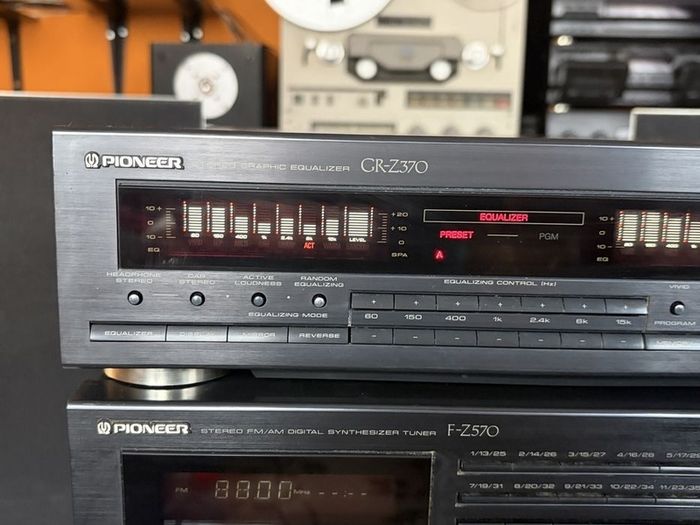

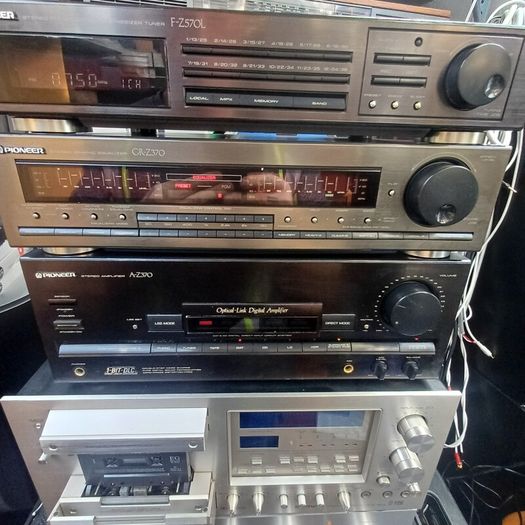

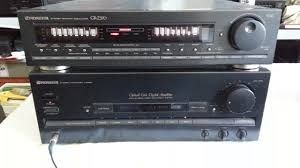

Pioneer Z Series separate System A-z370 I Bit System With Gr-z370 Spectrum Analyzer And F-z570l Tuner

Pioneer Z Series separate System A-z370 I Bit System With Gr-z370 Spectrum Analyzer And F-z570l Tuner

In great condition and amp has optical inputs including DAT and phono Preamplifier

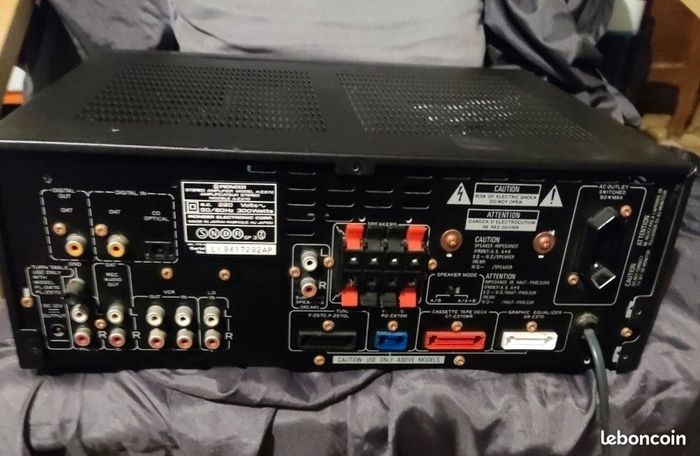

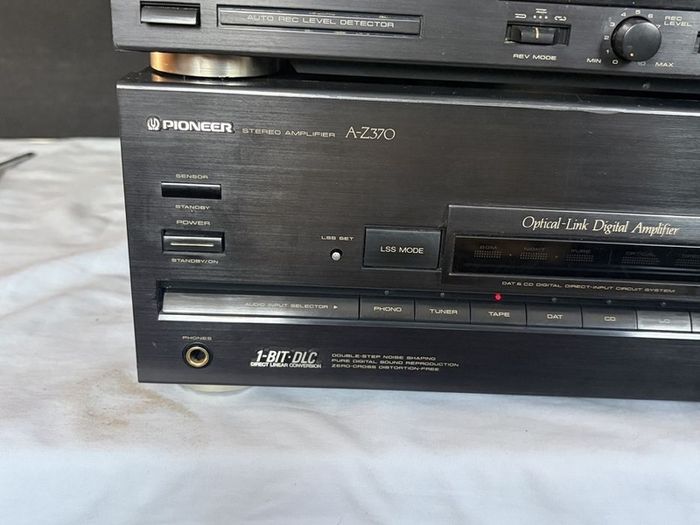

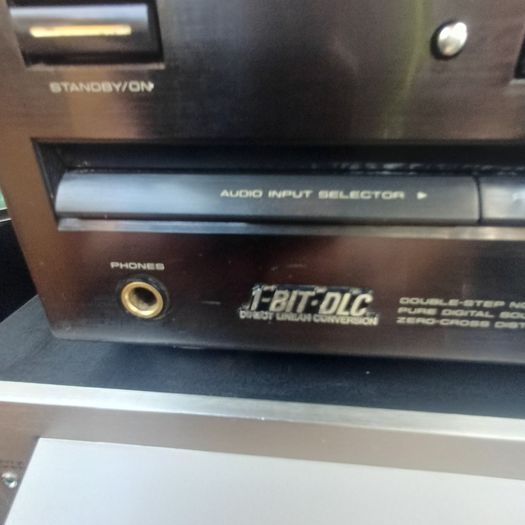

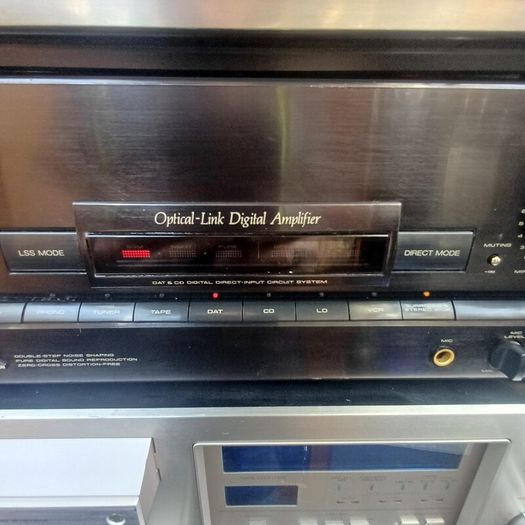

hi-fi stereo integrated amplifier housed in a black metal case with continuous power output (DIN) of 2 x 60 watts into 8 ohms. A component in a Pioneer Z Series Hi-Fi system. 1 Bit DLC (Direct Linear Conversion).  Rotary volume, balance and Mic level controls, switches for LSS mode (Listening Style Selector), Direct Mode, Surround and Stereo Wide, Speakers (A/B, A+B), Muting, and jacks for MIC and headphones. On the rear panel, digital input connections for DAT, CD (Optical), digital output connection for DAT, RCA phono sockets for input Phono and LD, for input/output VCR, for output to DAT Audio and Surround Speaker Systems, terminals for 2 pairs of loudspeakers (A, B), Speaker Mode switch, a 12V DC power outlet for PL-470 or PL-570 Turntable, system connections for F-Z570 or F-570L Tuner, PD-570T or PD-970M CD player, CT-Z370WR Cassette Tape Deck and GR-Z370 Graphic Equalizer and a 50W max. switched AC outlet.

Specification Continuous Power Output (DIN)
(1kHz, THD 1%, 8Ω)
60W + 60WMusic power (DIN)
 (1kHz, THD 1%, 8Ω)
100W + 100WD/A converter section
 S/N Ratio
 Dynamic range
 Frequency range
> 96dB (EIAJ)
> 94dB (EIAJ)
25Hz—20kHzTotal Harmonic Distortion
(1kHz, 30W, 8Ω)
No more than 0.06%Input sensitivity
 PHONO (MM)
 VCR
 LD
2.5mV
150mV
250mVOutput level
 DAT, VCR
150mV
