panasonic Technics sa 5800 solid state receiver from the Japanese Golden era 1970s

The Panasonic SA-5800 (also known as the National Panasonic SA-5800) is a vintage solid-state AM/FM stereo receiver manufactured in Japan between 1971 and 1972. It is recognized by collectors for its "tank-like" build quality and warm, pleasant sound profile.


Designed to faithfully entertain your ears, this new receiver highlights all of the exclusive National Panasonic features; direct coupled ITL-OTL-OCL amplification circuitry and newly developed differential amplifier circuits reward you with exciting distortion free audio power.

Two highly sensitive 4-pole (MOS) field effect transistors, a linearly variable 4-gang FM capacitor, and a costly monolithic IC in the specially built MPX circuit will gratify your growing need for selectivity in today's crowded FM world.

Wider frequency response, higher damping factor with lower distortion and noise level, and superb, clear output signal all add up to incomparable stereo enjoyment.

The skilfully designed station targeting system, bolstered by highly sensitive tuning circuitry, makes the SA-5800 the most advanced stereo receiver available today.

The well-bred child of a close-knit family of electronics wizards, this sensitive instrument effortlessly meets the highest standards.

Specifications

Tuning range: FM, MW

Power output: 23 watts per channel into 8Ω (stereo)

Frequency response: 15Hz to 65kHz

Total harmonic distortion: 0.5%

Damping factor: 70

Input sensitivity: 2mV (MM), 180mV (line)

Signal to noise ratio: 62dB (MM), 77dB (line)

Output: 180mV (line), 60mV (DIN)

Speaker load impedance: 4Ω to 16Ω





Key Features

Amplification: Uses direct-coupled ITL-OTL-OCL circuitry and newly developed differential amplifier circuits designed for distortion-free audio.

FM Tuner: Features two highly sensitive 4-pole MOS field-effect transistors and a 4-gang FM capacitor for improved selectivity in crowded FM environments.

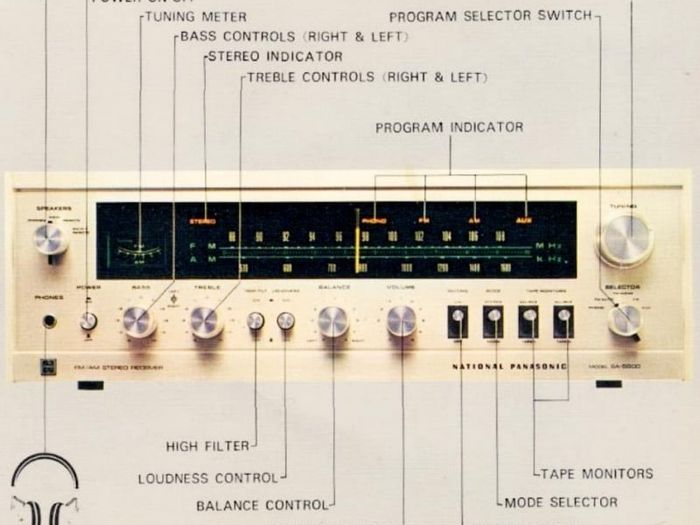

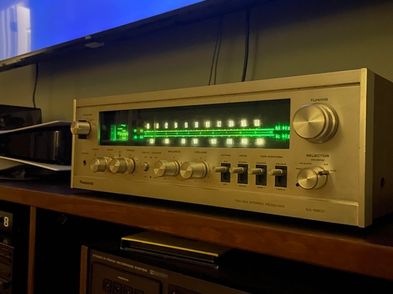

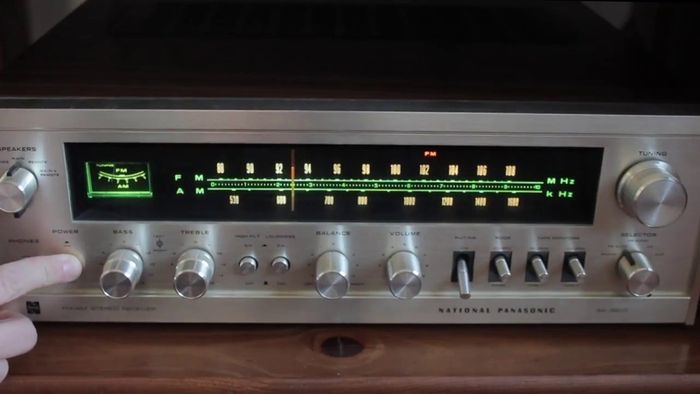

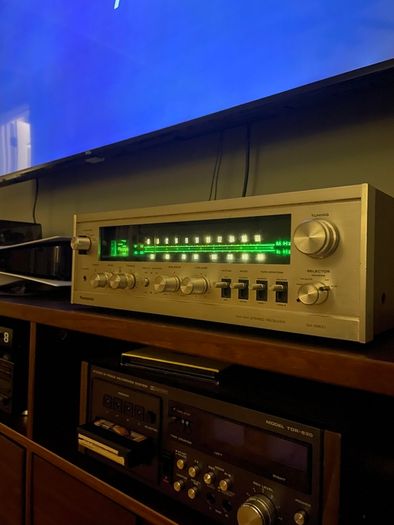

Design: Characterized by a brushed aluminum front panel and typically housed in a wooden enclosure (often American cherry or similar finishes in revitalized models).

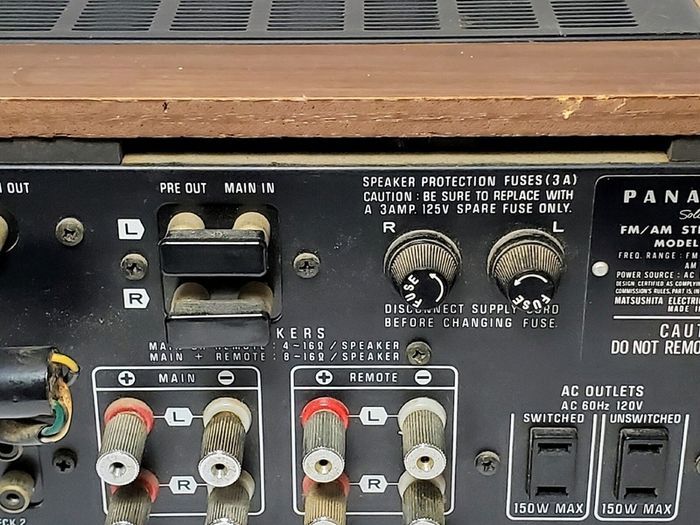

Connectivity: Includes a center channel output terminal, inputs for a magnetic cartridge turntable (Phono), auxiliary sources, and support for two tape decks and two pairs of speakers

User & Expert Opinions

Audio Quality: Reviewers on vintage audio forums often describe the SA-5800 as a "sleeper" hit, suggesting it performs better than entry-level models from contemporary brands like Pioneer or Kenwood.

Build Reliability: The faceplate and overall construction are frequently praised for their durability, with some users comparing the front panel's thickness to "tank armor".
