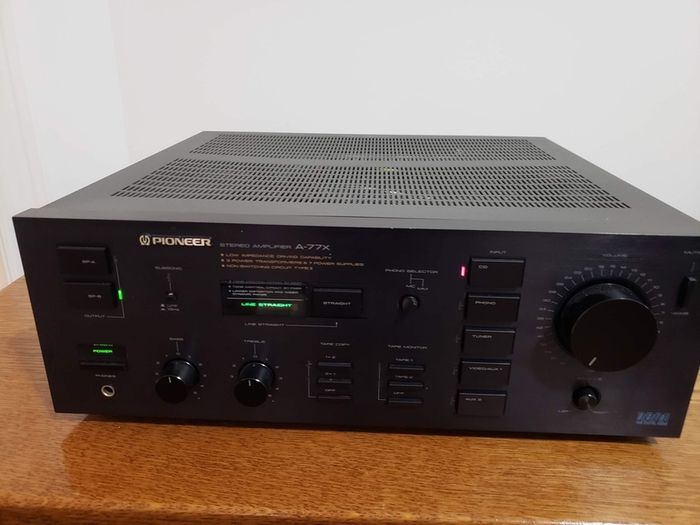

Mega Rare Elite Reference Series Pioneer A-77X Dual Mono Multi Transformer absolute beast one of the very best Pioneer's ever Fully professionally serviced and part Recapped

For those in the know This needs no introduction As simply one of Pioneer's greats

The power on board is exceptional

■■■■No Offers or time wasters please■■■■

The Pioneer A-77X is a highly regarded vintage stereo integrated amplifier released in 1985 as part of Pioneer's premium Elite series. Celebrated for its over-engineered "dual-mono" power architecture, massive power delivery, and ultra-low distortion, it remains a heavily sought-after unit in the vintage hi-fi community.

Key Performance Specifications

Power Output: 100 watts per channel into 8Ω (stereo)

Total Harmonic Distortion (THD): 0.003% (extremely clean signal path)

Frequency Response: 10Hz to 100kHz

Damping Factor: 100 (excellent speaker cone control)

Power Consumption: 780W (massive overhead capacity)

Weight: 15.3 kg (33.7 lbs), indicating heavy internal components [1, 2, 3]

Sound Quality & Performance

Audiophiles frequently commend the A-77X for its muscular, authoritative, and deeply dynamic presentation. Thanks to its low-impedance driving capability, it easily handles demanding, power-hungry speakers without straining or losing control of the low-end frequencies. The midrange is incredibly transparent, and the soundstage offers an open, wide imaging canvas that rivals high-end separates from the same era. It features a premium, low-noise built-in phono stage supporting both Moving Magnet (MM) and Moving Coil (MC) cartridges, making it an outstanding hub for vinyl collectors.

Build Quality & Engineering

The standout technical feature of the A-77X is its heavy-duty internal layout. It relies on three power transformers and seven independent power supplies. It operates as a true dual-mono layout with independent heatsinks and supply capacitors for the left and right channels, ensuring minimal crosstalk and excellent stereo separation. The chassis features a thick metal faceplate and structural metal knobs, giving it the signature "tank-like" build quality characteristic of mid-1980s Japanese hi-fi.



The Pioneer A-77X is a high-end, vintage integrated stereo amplifier released in 1986 as part of Pioneer's prestigious Elite / Reference series. Renowned for its massive power and over-engineered internal build, this Japanese-made component was designed to easily drive low-impedance speakers while delivering a highly neutral, expansive soundstage. [1, 2]

Technical Specifications

Power Output: 100 Watts per channel into 8 ohms.

Power Architecture: 3 large power transformers and 7 independent power supplies.

Total Weight: Over 16 kg (approx. 35 lbs), reflecting its heavy-duty build quality.

Production Year: 1986.

Country of Origin: Made in Japan. [1, 2, 3]

Key Features & Design

Multi-Transformer Layout: The amplifier utilizes three separate transformers. This design provides independent power to different amplifier stages, lowering crosstalk and mimicking a dual-mono configuration. [1, 2, 3]

Premium Phono Stage: Includes a built-in, high-quality phono preamplifier compatible with both Moving Magnet (MM) and Moving Coil (MC) cartridges. [1, 2]

Low-Impedance Drive: Engineered with heavy filtering and robust output transistors to steadily power demanding or erratic speaker loads without
