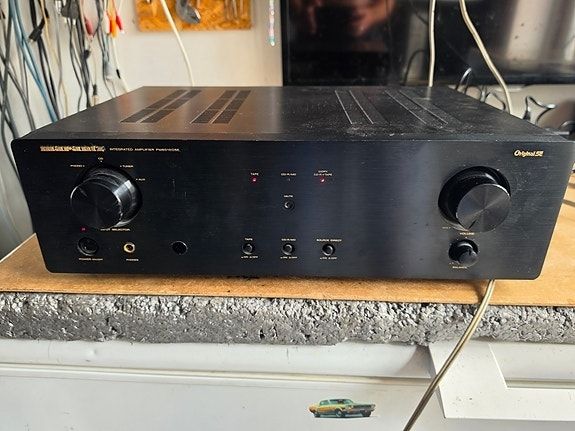

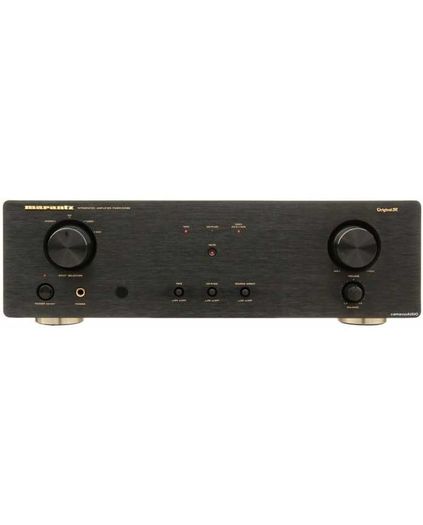

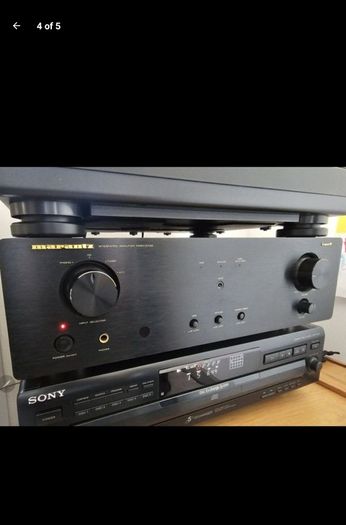

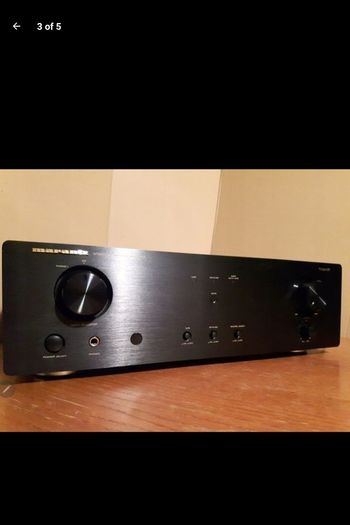

Marantz PM6010 Special Edition Audiophile Quality Stereo Integrated Amplifier

High-quality Audiophile grade components on board

Highly sought-after Japanese hifi

No Offers or Time Wasters please

The Marantz PM6100 SE (frequently designated as the PM6100SA or PM6100/F1N in specific regions) is an early-2000s audiophile-grade integrated amplifier engineered by Marantz. It is highly regarded for incorporating premium current feedback circuitry, which ensures an ultra-low distortion rate and exceptional dynamic range for clean audio reproduction.Because it was predominantly manufactured as a 100V Japanese Domestic Market (JDM) component, buyers outside Japan must use a step-down voltage transformer to safely operate it.Key Specifications & PerformancePower Output: 50 Watts per channel into 8Ω, 60 Watts into 6Ω, and 70 Watts into 4Ω.Total Harmonic Distortion (THD): Exceptionally low at 0.01% to 0.04% depending on the exact load.Frequency Response: Wide bandwidth ranging from 5Hz to 60kHz (+0 / -1dB).Signal-to-Noise Ratio: 110dB for line-level inputs, offering an incredibly quiet background.Damping Factor: 100 or greater (at 8Ω), providing strong control over speaker woofer movement.






Marantz PM6010 Special Edition Audiophile Quality Stereo Integrated Amplifier


Power output: 100 watts into 8Ω (stereo)

Frequency response: 5Hz to 70kHz

Total harmonic distortion: 0.008%

Number of Transistors

Semiconductors present.

Semiconductors

Main principle

Audio-Amplification

Wave bands

- without

Details

Remote Control (with wire or wireless)

Power type and voltage

Alternating Current supply (AC) / 240 Volt

Loudspeaker

- This model requires external speaker(s).

Power out

100 W (undistorted)

Material

Metal case

from Radiomuseum.org

Model: Integrated Amplifier PM6010 OSE - Marantz Sound United LLC;

factor: 100

Input sensitivity: 2.5mV (MM), 150mV (line)

Signal to noise ratio: 87dB (MM), 97dB (line)

Dimensions: 440 x 138 x 338mm

Weight: 6.7kg

Year: 1999
