Kenwood Ka-50

Kenwood KA-50 amplifier in very good condition
Manufacturer: Kenwood

Model: KA-50

Type: Integrated amplifier

Years of manufacture: 1980 - 1982

Made in: Japan

Color: Silver

Remote control: -

Power consumption: 330 watts

Dimensions: 440 x 109 x 249 mm (WxHxD)

Weight: 5.5 kg

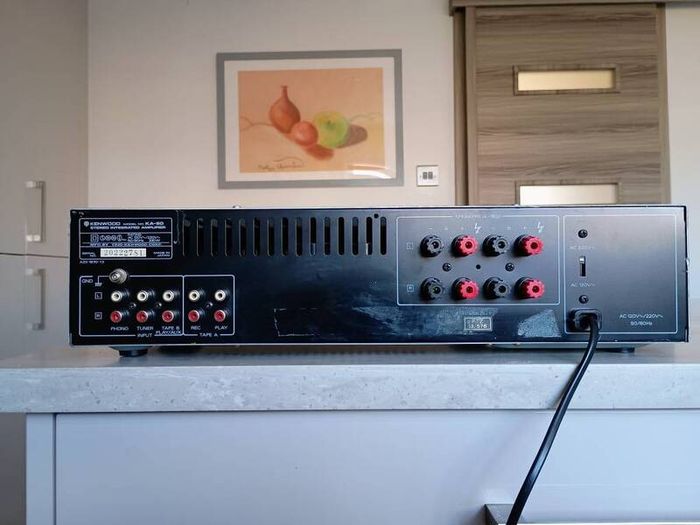

Connections

Number of inputs: 4 + 1

Phono MM (2.5 mV / 50 kOhm)

Tuner, Aux, Tape Play (150 mV / 50 kOhm)

Number of outputs:

1 x loudspeaker

1 x headphones

Rec-Out 150mV @ 47kOhm


Technical Data

Continuous power (at distortion factor)

8 Ohm: 2x 45 Watt (0,09%)

4 Ohm: 2x 45 Watt (0,7%)

Dynamic power

8 Ohm:

4 Ohm:

Total harmonic distortion:

Attenuation factor: 30

Frequency response: 10 - 70,000 Hz

Signal to noise ratio: Phono 72 dB / High level dB

Stereo channel separation:

Tone control:

Bass: ± 10 dB / 100 Hz

Treble: ± 10 dB / 10 kHz

Loudness:

High Filter: No

Low Filter (Subsonic): No

Mute:

Direct/Line-Straight:
