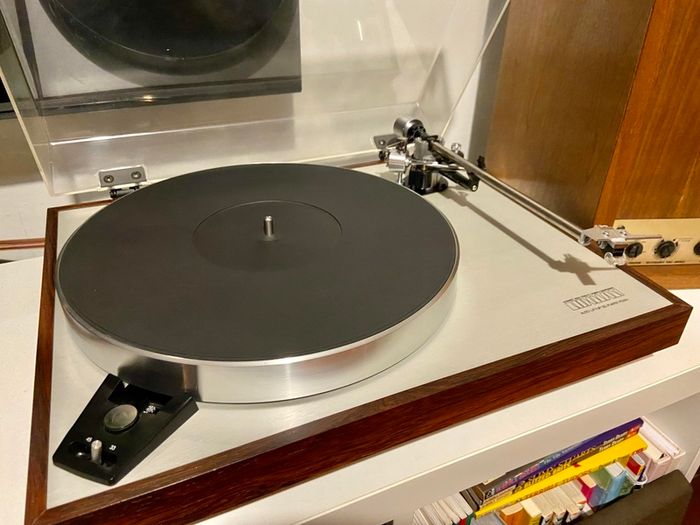

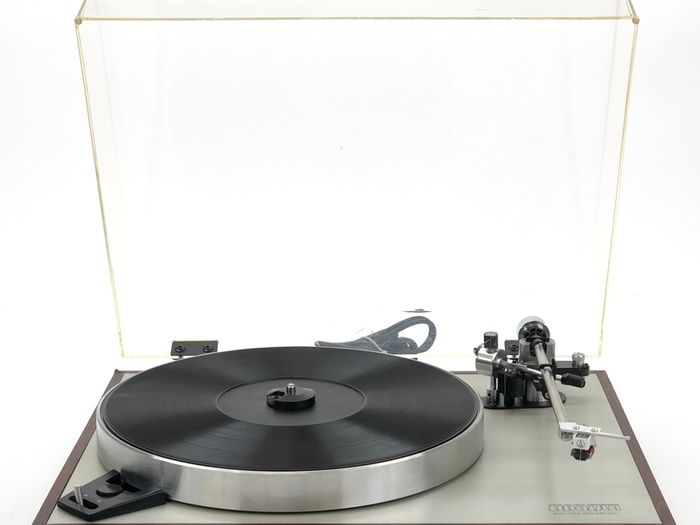

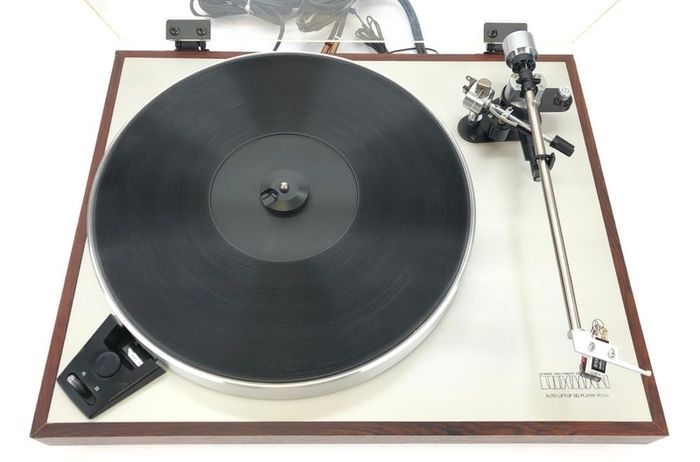

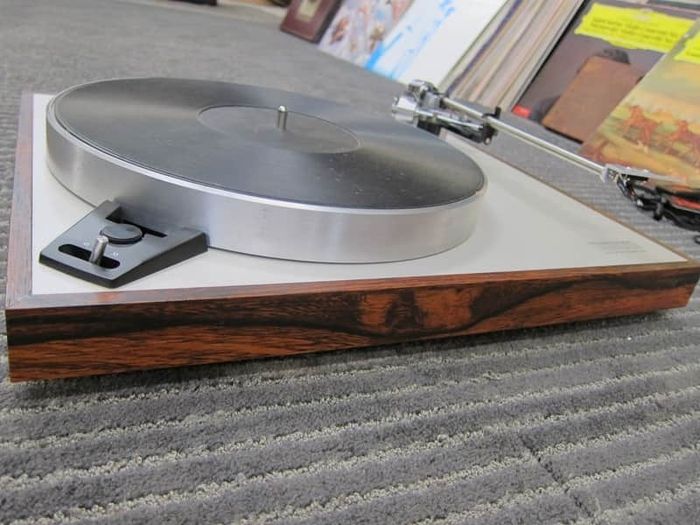

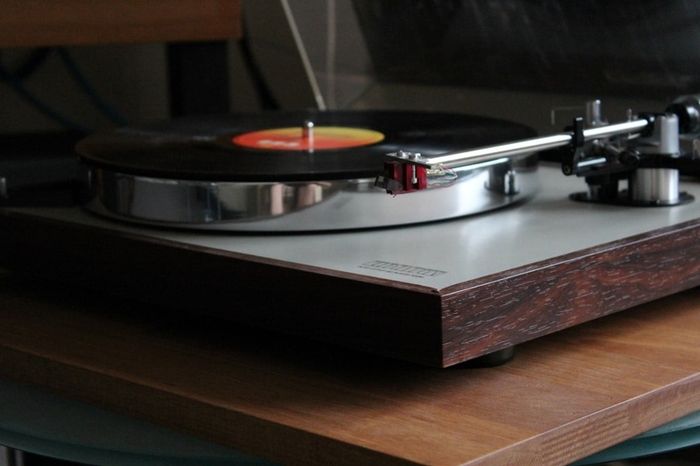

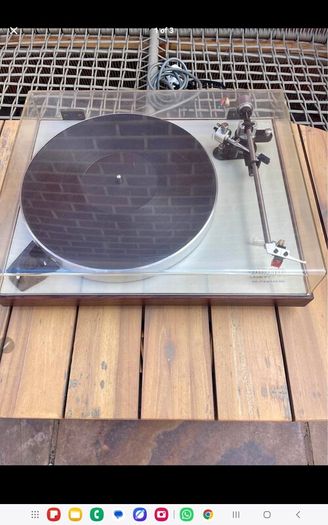

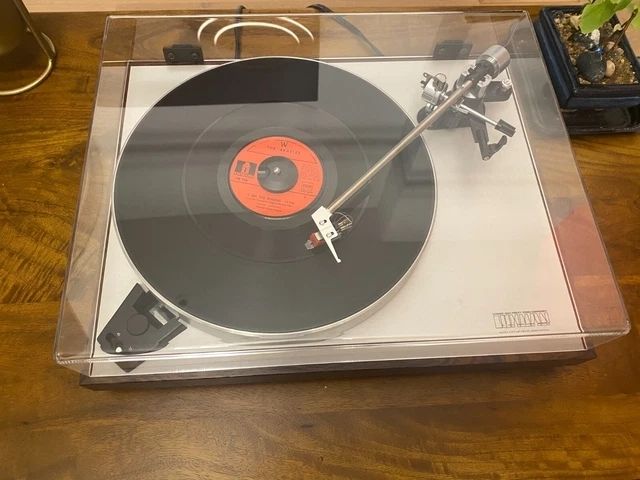

Hifi Gold Legendary Luxman PD264 from the Japanese Golden era 1970s Direct Drive Turntable Auto lift brushed aluminium Top plate

The Luxman PD264 earned its "legendary" status among vinyl enthusiasts primarily for its striking minimalist design and its remarkably advanced engineering for a semi-automatic deck. While many audiophiles from that era shunned automatic turntables due to the mechanical noise they introduced, Luxman engineered a brilliant, completely touchless system.

Why It Became a Legend

Touchless Auto-Lift: It features a unique photo-sensor system that detects when the record ends. This means there are no mechanical linkages dragging on the tonearm while it plays, preserving pure sound quality while protecting your stylus.

Timeless Japanese Aesthetics: With its slim-profile chassis, gorgeous real-wood veneer accents, and heavy brushed-aluminum top plate, it remains a centerpiece of mid-century and retro-audio visual design.

Over-Engineered Platter: The direct-drive platter concentrates its 1.8 kg mass right at the outer edge, creating a flywheel effect that rivals far heavier, more expensive turntables in speed stability.






The Luxman PD264 is a classic, vintage direct-drive hi-fi turntable produced by the renowned Japanese audio brand Luxman during the late 1970s and early 1980s. It is highly regarded by audiophiles for its minimalist, elegant aesthetics, reliable engineering, and open, detailed sound quality. [1, 2, 3, 4]

Key Features

Auto Lift-Up Mechanism: A defining feature of the PD264 is its mechanical automatic end-of-disc tonearm lift. When a record finishes playing, the tonearm automatically raises to protect your stylus from unnecessary wear. [1, 2]

Direct-Drive System: It utilizes a brushless DC servo motor direct-drive mechanism, which eliminates the need for drive belts and ensures accurate, low-maintenance speed stability. [1, 2]

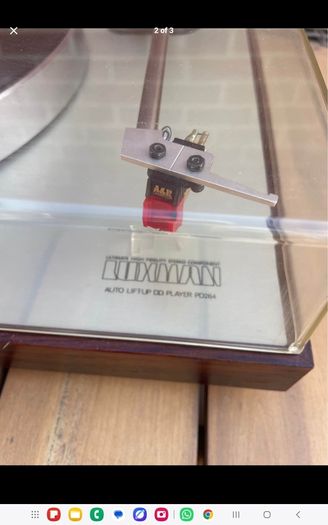

Stately Tonearm: It comes equipped with a high-quality, static-balance straight tonearm (often referred to as an Micro Seiki-designed arm) that offers exceptional tracking accuracy. [1, 2]

Pitch Control: Includes independent pitch adjustments for fine-tuning both 33 and 45 RPM speeds. [1, 2]

Technical Specifications

According to the official factory manuals hosted on platforms like Vinyl Engine

, the core specifications include:

AttributeSpecificationDrive MethodDirect driveMotor TypeDC servo brushlessPlatter300mm aluminium die-cast (1.8 kg)Speeds33 and 45 rpmWow and Flutter0.035% WRMSSignal to Noise Ratio60dBTonearm Effective Length240mmOverhang15mmCompatible Cartridge Weight4g to 11gDimensions438 x 125 x 365 mm
