FLAGSHIP MODEL Technics SE A5 MK11 DC power amplifier 300w only one for sale in Ireland very rare absolute beast Cheapest in Europe

Only one in Ireland for sure for Sale

Not to be confused with the 900s Reference or 1000
This is the flagship

And these are up to €4000 online

This is a Simply stunning quality Class A amplifier

No Time Wasters Please No Offers


The Technics SE-A5 MK2 (often referred to as the MKII) is a prestigious high-end stereo power amplifier from Technics' "Golden Era" of Hi-Fi (released around 1983). It is a refined version of the original SE-A5, famously known for its massive, illuminated analog peak power meters and "New Class A" circuitry.



Key Specifications & Performance

Power Output: Delivers 150 watts per channel into 8 ohms (compared to the 120W of the MK1) and 200 watts into 4 ohms.

Circuitry: Features New Class A technology, which uses a "synchro-bias" circuit to eliminate switching distortion while maintaining the thermal efficiency of Class B.

Design: A "DC" (Direct Coupled) amplifier, meaning there are no capacitors in the signal path, allowing for extremely low frequency response and high signal purity.

Build: A heavy-duty unit weighing approximately 18.4 kg (40.5 lbs), featuring a large power transformer and substantial heat sinks.



Features

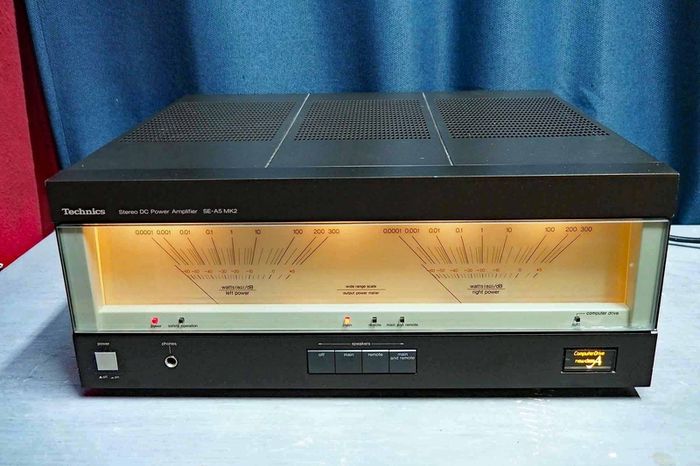

Visuals: Iconic large-scale power meters that dominate the front panel.

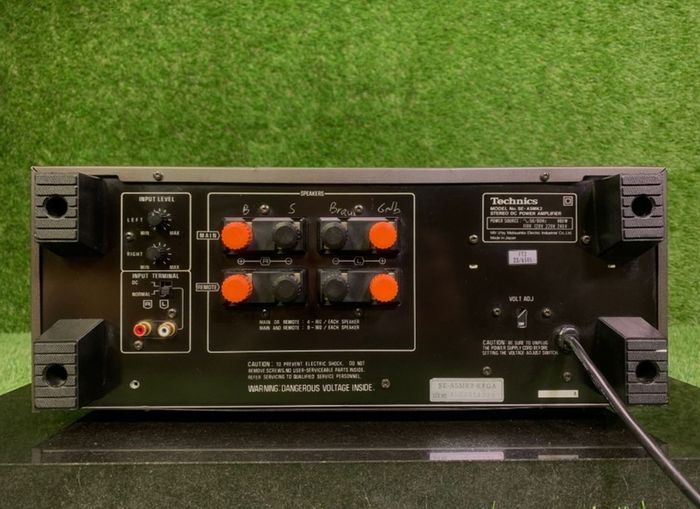

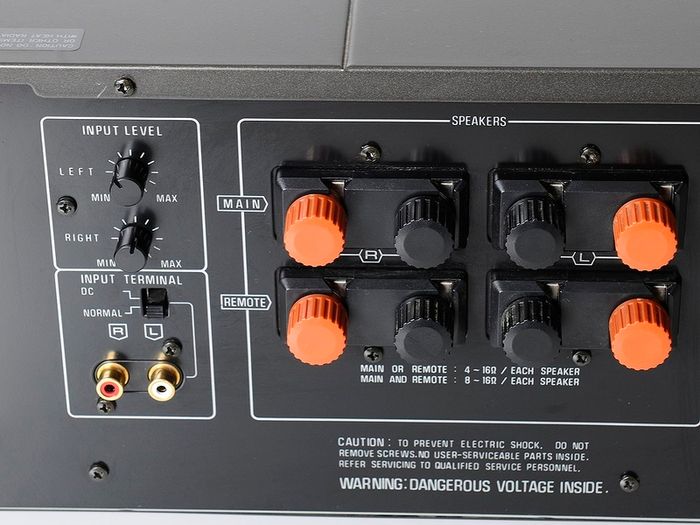

Connectivity: Equipped with gold-plated inputs and high-quality speaker terminals.

Protection: Includes comprehensive protection circuitry with indicator lamps to safeguard both the amplifier and your speakers.






Description

The SE-A5 power amplifier employs Technics New Class A circuitry, a design which eliminates the switching and crossover distortion associated with conventional class B amplifiers.

New Class A provides the low distortion of class A amplifiers, yet maintains the power efficiency of class B amplifiers.

Although the New Class A circuitry itself results in distortion figures as low as the best amplifiers in the audio industry, Technics has gone another step beyond.


Description

The SE-A5 power amplifier employs Technics New Class A circuitry, a design which eliminates the switching and crossover distortion associated with conventional class B amplifiers.

New Class A provides the low distortion of class A amplifiers, yet maintains the power efficiency of class B amplifiers.

Although the New Class A circuitry itself results in distortion figures as low as the best amplifiers in the audio industry, Technics has gone another step beyond.

Specifications

mk1

mk2

Power output: 150 watts per channel into 8Ω (stereo)

Frequency response: 1Hz to 20kHz

Total harmonic distortion: 0.002%

Damping factor: 100

Input sensitivity: 1V

Signal to noise ratio: 121dB

Speaker load impedance: 4Ω to 16Ω

Dimensions: 430 x 178 x 416mm

Weight: 18.4kg





Specifications

mk1

mk2

Power output: 150 watts per channel into 8Ω (stereo)

Frequency response: 1Hz to 20kHz

Total harmonic distortion: 0.002%

Damping factor: 100

Input sensitivity: 1V

Signal to noise ratio: 121dB

Speaker load impedance: 4Ω to 16Ω

Dimensions: 430 x 178 x 416mm

Weight: 18.4kg
