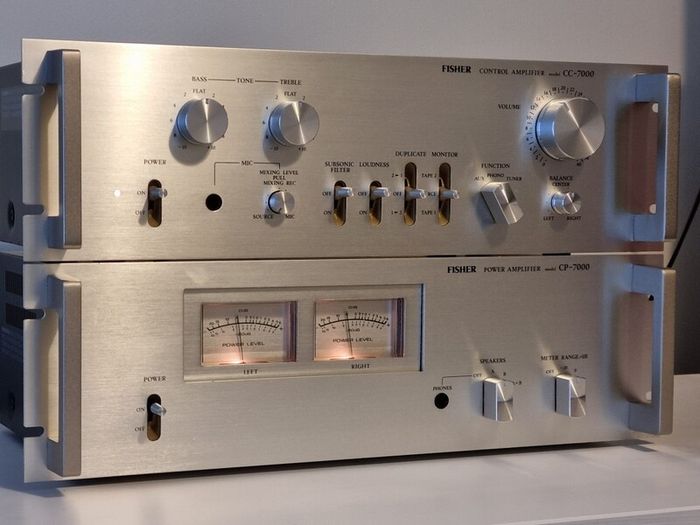

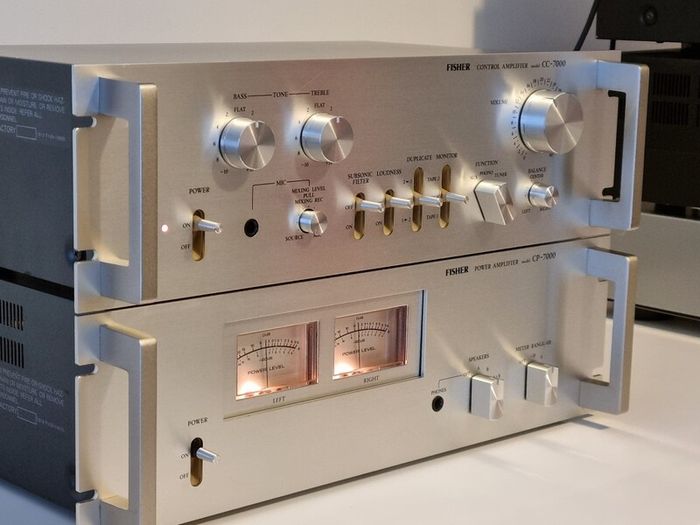

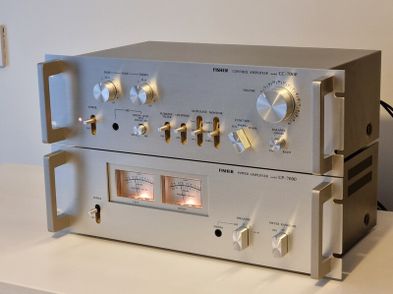

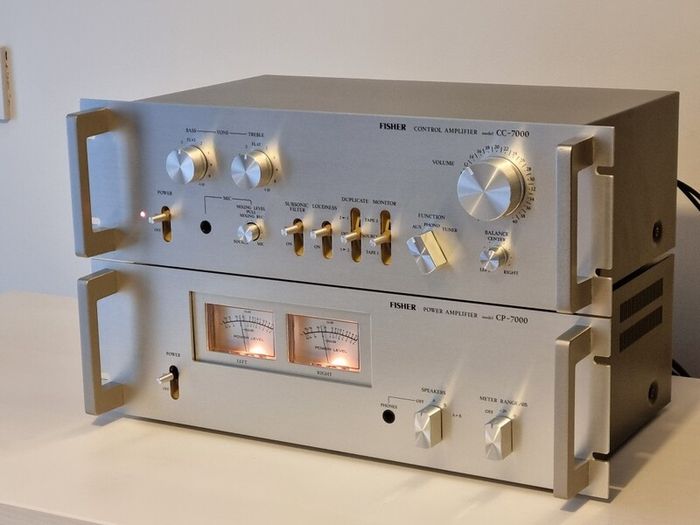

Fisher CC-7000 preamplifier and CP-7000 Power amplifier

Description
The Fisher CC-7000 is a stereo pre-amplifier with moving magnet phono, auxiliary and tuner inputs, and two tape loops.

Specifications
Frequency response: 10Hz to 30kHz

Input sensitivity: 2mV (mic), 2.7mV (MM), 150mV (line)

Signal to noise ratio: 70dB (MM), 100dB (line)

Output: 150mV (line), 1V (Pre out)

Dimensions: 450 x 135 x 265mm

Weight: 4.5kg

Year: 1978
Data
General

Manufacturer: Fisher
Model: CP-7000
Model series: Fisher System 7000
Type: Power amplifier
Years of manufacture: 1978 - 1980
Made in: Japan
Color: Silver or black
Power consumption: 100 W
Dimensions (WxHxD): 450 x 135 x 285 mm
Weight: 7.8 kg
Original price approx.: 578 DM

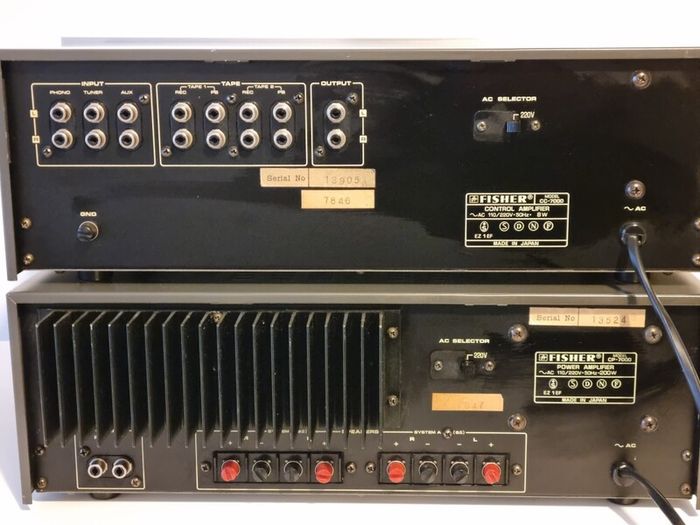

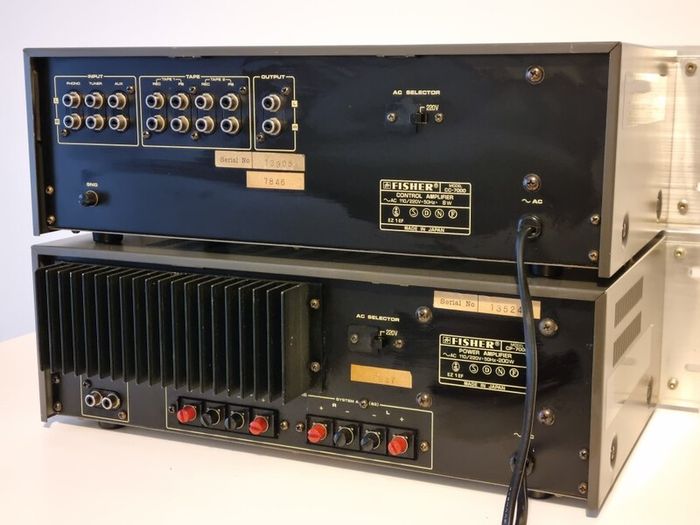

Connections

Number of inputs: 1
Line In: 1 V, 50 kOhm

Number of outputs:
2 pairs of speakers

Technical Data

Continuous power (at distortion factor)
8 Ohm: 2x 50 W (20Hz - 20kHz, 0.1 %)
4 Ohm:
Dynamic power
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.1 %
Attenuation factor:
Frequency response: 10 Hz - 30 kHz (- 2 dB).
Signal-to-noise ratio: > 110 dB
Subsonic Filter:

Special Features

2 large VU meters
Meter range switchable in 3 steps: Off, 0 dB, - 20 dB
