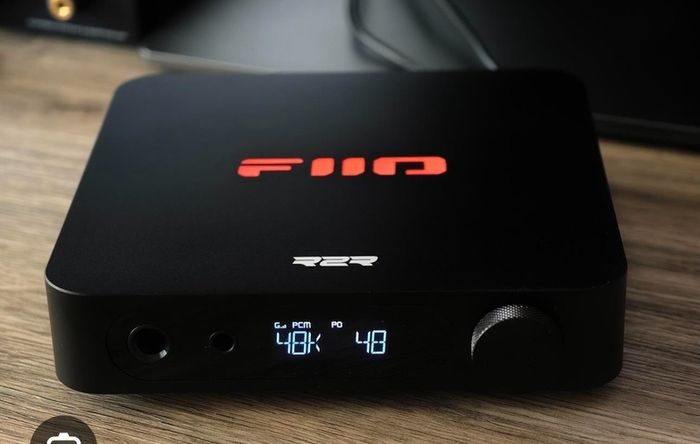

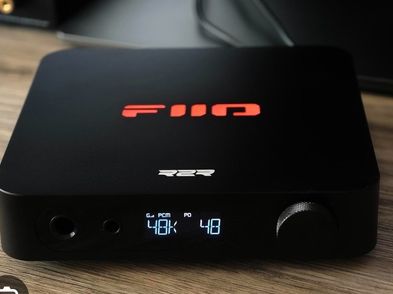

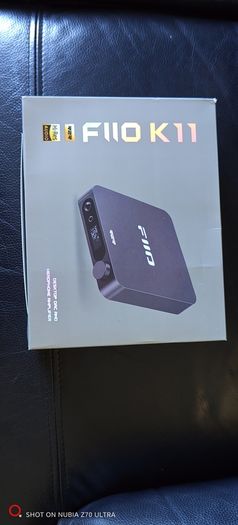

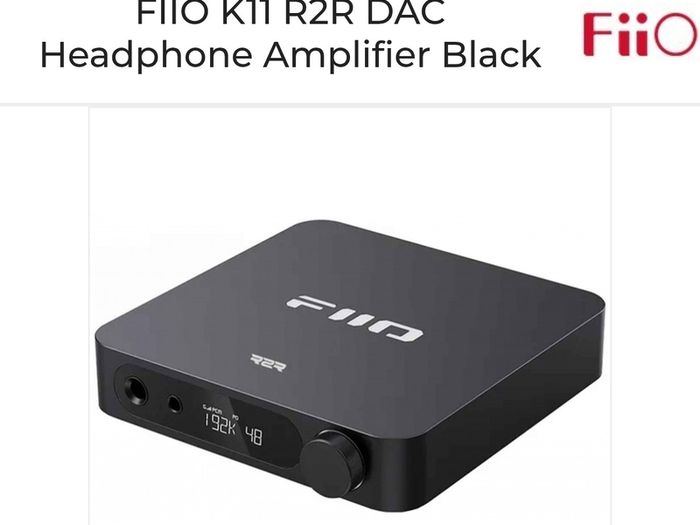

Fiio K11 R2r Dac Amp (brand New)

Fiio k11 r2r (brand new)
Black

Excellent sounding DAC with plenty of power for headphones and items.
- needs a UK plug adapter as it comes without one.

COLLECTION ONLY!!!!


The FiiO K11 R2R is a compact desktop DAC and headphone amplifier featuring a 4-channel fully differential 24-bit R2R resistor ladder DAC architecture. It supports NOS (Non-Oversampling) and OS (Oversampling) modes, delivering up to 1300mW balanced power, USB/Coax/Optical inputs, and 4.4mm/6.35mm outputs.

Key Technical Specifications

DAC Architecture: 4-channel, 24-bit R2R resistor array.

Operating Modes: NOS (Non-Oversampling) / OS (Oversampling) switchable.

Power Output (Balanced, 4.4mm):


 1300mW @ 32,  220mW @ 300 (THD+N=1%).

Power Output (Single-Ended, 6.35mm):

 460mW @ 32,  50mW @ 300 (THD+N=1%).

SNR:  115dBA.

THD+N: 0.025%.

Input Rates: USB (up to 32bit/384kHz, DSD256), Coax (up to 24bit/192kHz), Optical (up to 24bit/96kHz).

Output Impedance: 6.35mm (< 1), 4.4mm (< 1.5).

Inputs: USB Type-C, Coaxial, Optical.

Outputs: RCA Line-out, 6.35mm SE HP, 4.4mm BAL HP.

Dimensions/Weight: 147 x 133 x 32.3mm / Approx. 420g.

Additional Features: 3-stage gain, Adjustable RGB lighting, VA display, NJW1195A electronic volume control
