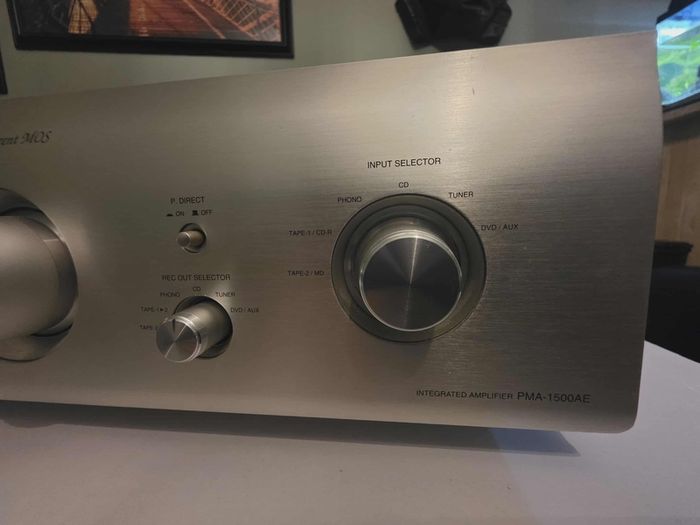

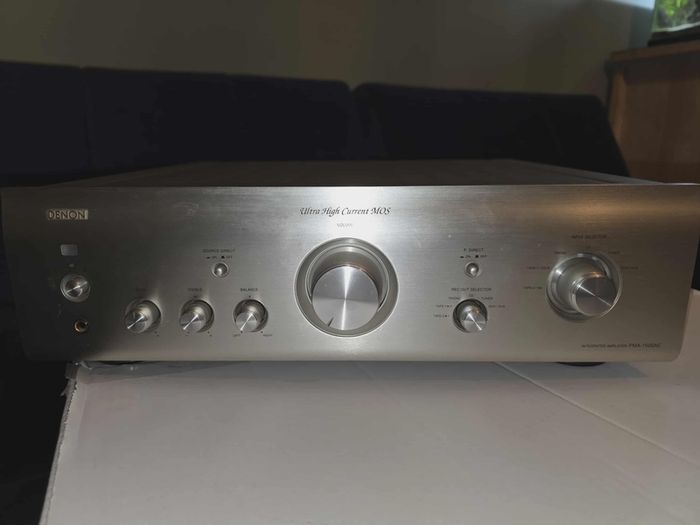

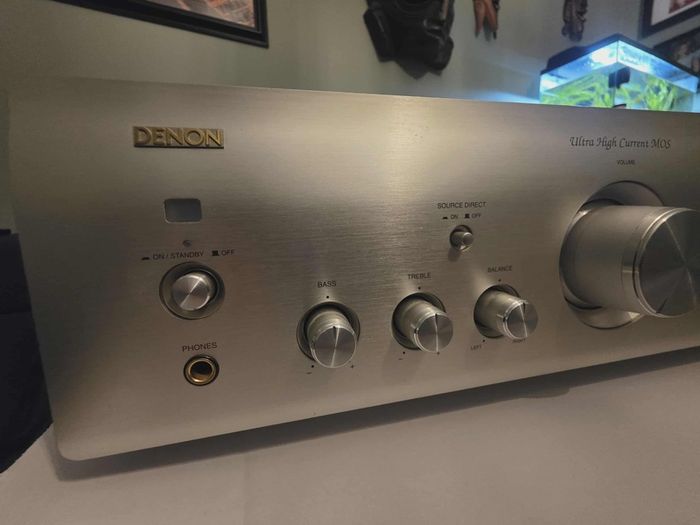

Denon PMA-1500 AE integrated amplifier

High class Denon amp with dual mono construction in very good condition. Remote control and power cable included. Selector cleaned and serviced recently.

Model: Denon PMA-1500 AE

Years of manufacture: 09/2005 - 2010

Made in: Japan

Color: Premium silver

Type: Stereo, Analog

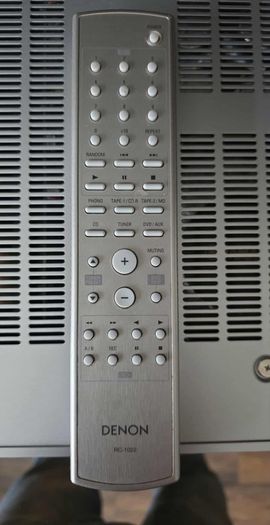

Remote control: yes (RC-1022)

Power consumption: 305 W (operation), 450 W measured at full load

Dimensions: 434 x 134 x 407 mm (WxHxD)

Weight: 14,6 kg

New price approx.: 1500 €


Connections

Number of inputs:

Phono MM/MC (switchable, RCA).

CD, Tuner, DVD/Aux, 2x Tape/CD-R In (Cinch)

Main In (Cinch)

Number of outputs:

2x Tape/CD-R In (Cinch)

Pre Out (Cinch)

Headphones (6,3mm jack)

2 speaker pairs (4-16 Ohm), bi-wiring connections, speaker groups cannot be switched.


Technical Data

Continuous power ( according to DIN ):

8 Ohm: 70 W + 70 W

4 Ohm: 140 W + 140 W According to the stereoplay test report: 98 W + 98 W at 8 ohms and 138 W + 138 W at 4 ohms.

dynamic power

8 Ohm: 109 W + 109 W 4 Ohm: 161 W + 161 W

Total harmonic distortion: 0.01%

Attenuation factor:

Frequency Response:

Signal-to-noise ratio: 74 ( phono )- 108 dB ( line in ).

Stereo channel separation:

Tone control:

Bass: ±8 dB (100 Hz).

treble: ±8 dB (10 kHz)

Mute

Direct/Line-Straight


Special Features

Solid gold-plated speaker terminals, also suitable for banana plugs

All connections gold plated

Phono MM/ MC switchable

Motorized potentiometer for volume

Input switching via relay

"Direct in" switchable, thus usable as pure power amplifier

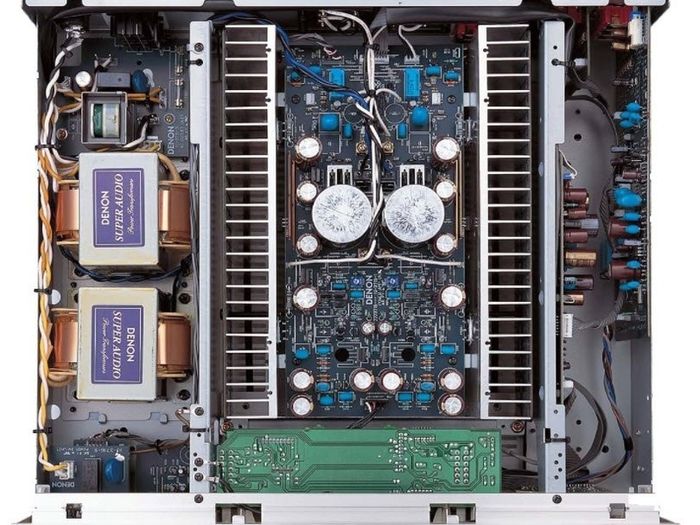

2x mains transformer, discrete construction

Protection circuit against short circuit, offset and overtemperature

High-quality workmanship, solid aluminium front

Denon amplifier received EISA award Europe's best stereo amplifier of 2006-2007 bears the model designation PMA-1500AE.
