PRO MAX Router Laser Engraving Machine 3 Axis GRBL Control Wood Cutter Engraver Milling Machine for PCB PVC DIY

Model: VG-S3018 Pro MAX

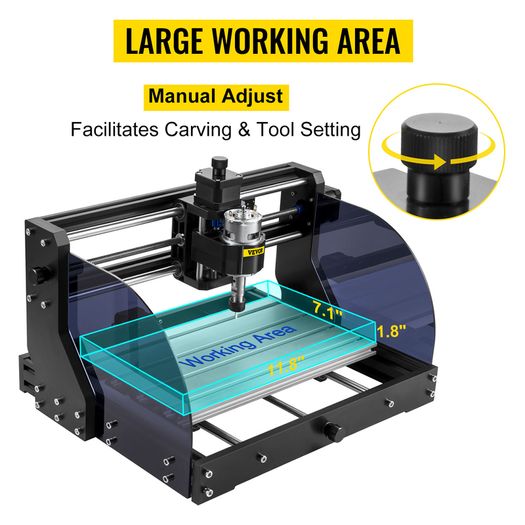

Effective Working Area(X x Y x Z): 11.8" x 7.1" x 1.8" / 300 x 180 x 45 mm

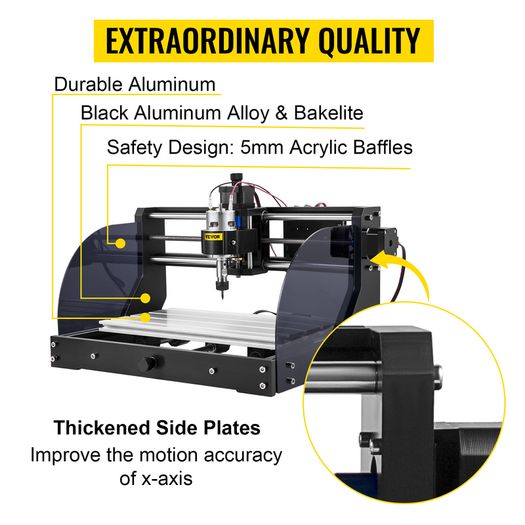

Materials: Aluminum Profile & Bakelite

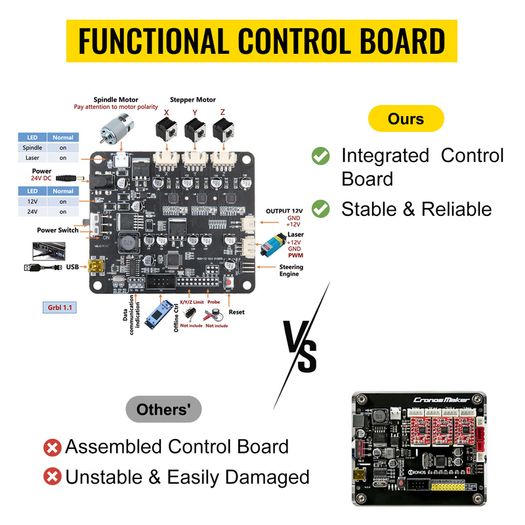

Control Software: GRBL Control

Input Power: DC 24V 5A

Laser Power：500 mw - 15000mw

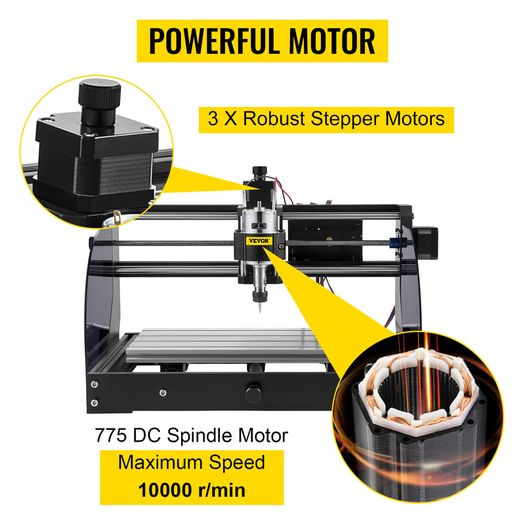

Spindle Speed: 10000 rpm

Stepping Motor: Size 42, 12V; Torque: 0.25 N/m

Driving Units: T8 Stainless Steel Screws

Cutter Diameter: 0.125" / 3.175 mm

Positioning Accuracy: 0.003"-0.004" / 0.08-0.1 mm

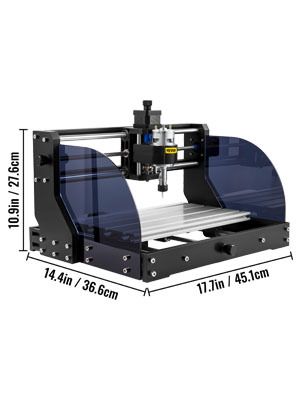

Item Dimension: 15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm

Package Content
1 x 3018 CNC Router Kit

1 x Laser Module

1 x Spindle

1 x U-Disk (Software & Instruction)

1 x Set of Milling Cutter

1 x Pair of Protective Glasses

1 x USB Cable

1 x Power Supply

1 x Set of Tools

1 x Brush

1 x Manual

Delivery Takes 2-3 Weeks
