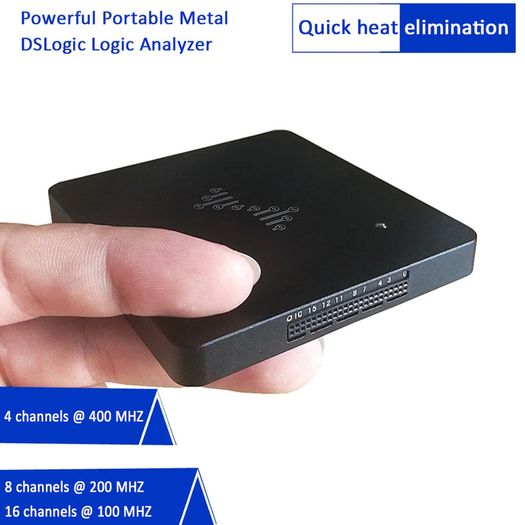

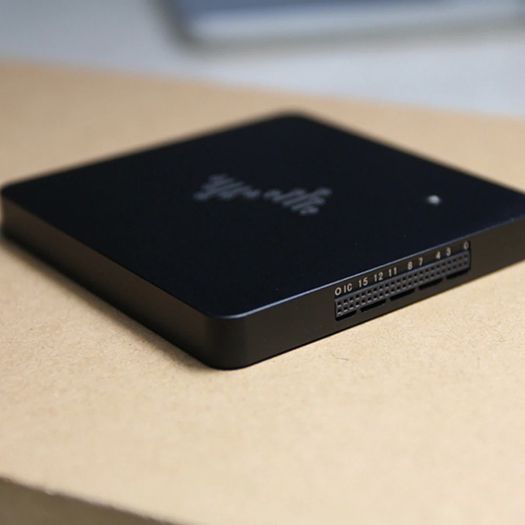

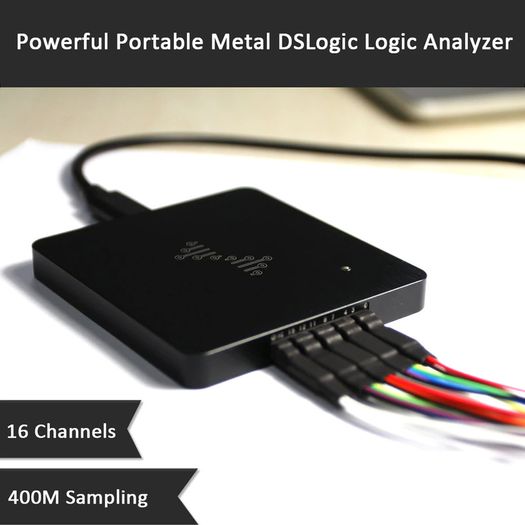

Portable Metal DSLogic Logic Analyzer 16 Channels 100MHz USB-based Debugging Logic Analyzer

Specifications:
Material: plastics
Type: Basic version, Upgrade version (optional)
Model Number: DSLogic Logic Analyzer
Model: stream+buffer
Maximum sampling rate:
4 channels @ 400 MHZ
8 channels @ 200 MHZ
16 channels @ 100 MHZ
Continuous Adjustable Threshold Voltage Range: 0.5 V to + 5 V
The Input Voltage Range: - 30 V to + 30 V
Input Impedance: 250 kohm

Please note：

Basic Version:100MHZ
The onboard storage depth: Total 256 K
Hardware Memory: 256Kbits
The Largest State Sampling Clock: 30 M

Upgrade Version:100-400MHZ
The onboard storage depth: Total 256 M
Hardware Memory: 256Mbits
The Largest State Sampling Clock: 50 M

Package Weight: 200g / 7.1lb
Package Size: 190 * 120 * 50mm / 7.5 * 4.7 * 2.0in

Packing List:
Basic Version:
1 * Basic Main Machine
1 * Type-C Data Cable

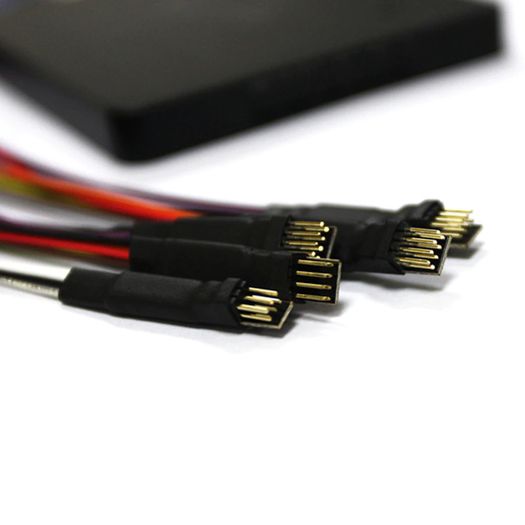

5 * Silvering Line
16 * Clip

Upgrade Version:
1 * Plus Main Machine
1 * Type-C Data Cable
5 * Shield Line
16 * Clip
Delivery Takes 4-10 Days
