Oil Dispensing Pump with Retractable Reel - Metered

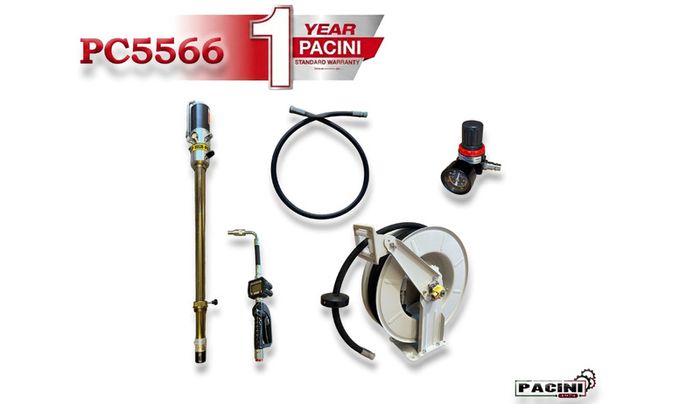

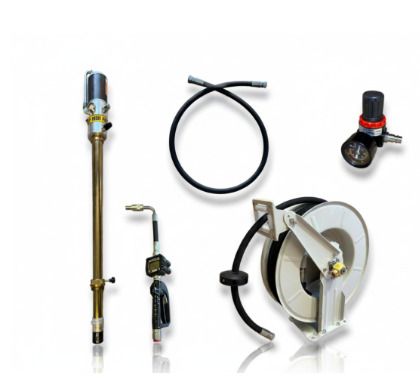

Pacini PC5566 – Pump with Reel and Meter Kit
Pacini PC5566 Oil Barrel Kit is a professional-grade pneumatic oil dispensing system designed for workshop and industrial lubrication applications. It is engineered for handling a wide range of lubricants and oils with high accuracy and controlled dispensing.
Details

Pump with Reel and Meter Kit (SKU: PC5566)
Brand: PACINI
Type: Heavy-duty oil dispensing pump with hose reel and integrated meter

Key Specifications
Pump & Performance
Flow rate: 8–30 L/min (typical working range 12–14 L/min)
Pressure (working): up to 5–270 MPa (system dependent specification noted)
Air inlet pressure: 0.6–0.8 MPa
Pressure ratio: 5:1
Accuracy of meter: ±1%
Media Compatibility
Designed for heavy-duty oil / lubricants
Hose & Reel System
Hose size: 1/2" (DN1/2")
Hose length: 15 meters
Hose material: Cast iron reinforced structure
Reel inlet connection: 1/2" BSP / NPT
Discharge hose: 1/2"
Spout type: Flex spout
Meter Specifications
One-time count range: 0.1 – 9999.9 liters
Total count range: 0.1 – 9999.9 liters
Accuracy: ±1%
Operating Conditions
Temperature range: 68°F – 180°F (20°C – 82°C approx.)
Working pressure (hose system): 2000 PSI
Burst pressure: 10,000 PSI
Physical Details
Volume capacity: 200 L
Weight: 6.5 kg
Length: 975 mm
Packing size: 1250 × 160 × 160 mm
Typical Applications
Automotive workshops
Industrial lubrication systems
Fleet maintenance stations
Heavy machinery servicing
Oil dispensing and transfer systems
