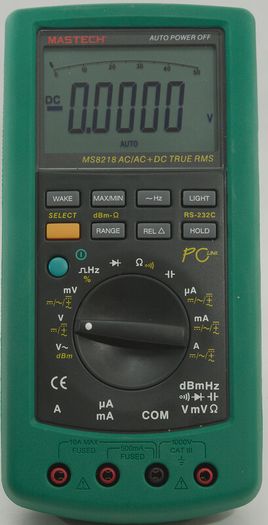

Mastech TRUE RMS Digital Multimeter

Model No.: MS8218 Brand: Mastech




FEATURES

•

50000 counts measurement

•

Auto/Manual Range

•

ACV and DCV measurements reach up to 1000V

•

DC measurement accuracy reaches up to 0.03%

•

0.01Ω resistance and 1µV voltage resolution

•

Voltage/Current Linear frequency measurement

•

Logic frequency/duty cycle measurement

•

Capacitance measurement from 0.01nf to 5000µF

•

AC/DC true RMS measurement/dBm measurement

•

MAX/MIN/MAX-MIN and Relative value measurement

•

Data hold/Back light/Auto off

•

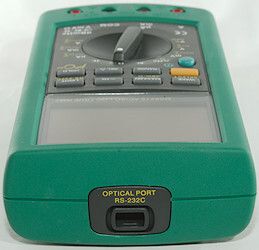

RS-232C infrared interface and PC Windows software

•

Software calibrates automatically

•

Full overload protection

•

Indication for battery low

•

Secondary injection molding case

•

Insulating performance reaching 1000V CATIII

SPECIFICATIONS

ACV/DCV+ACV:

50mV/500mV/5V/50V/500V/1000V ±0.5%

DCV:

50mV/500mV/5V/50V/500V/1000V ±0.03%

AC Current/DC Current + AC Current:

500µA/5000µA/50mA/500mA/5A ±0.75%, 10A±0.15%

DC Current:

500µA/5000µA/50mA/500mA/5A/10A ±0.15%

Resistance:

500Ω/5kΩ/50kΩ/500kΩ/5MΩ±0.1%, 50MΩ±0.5%

Capacitance:

50nF/500nF/5µF/50µF±1%, 500µF/5000µF±2%

Diode:

2.5V±1%

Duty cycle:

5Hz ~ 500kHz

Range:

10% ~ 90%

Logic frequency:

5Hz ~ 5MHz±0.006%, Vpp 2 ~ 5V square wave

Linear frequency:

10Hz ~ 200kHz±0.006%

Sensitivity:

lowest 100mV

Display:

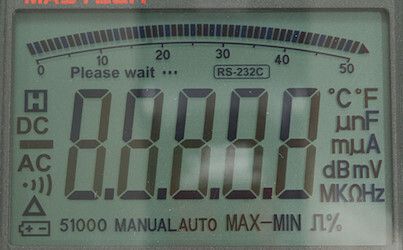

LCD size 44mm x 70mm

Weight:

Approx. 600g

Size:

200mm × 100mm × 40mm

Battery:

6 x 1.5V (AAA Type)

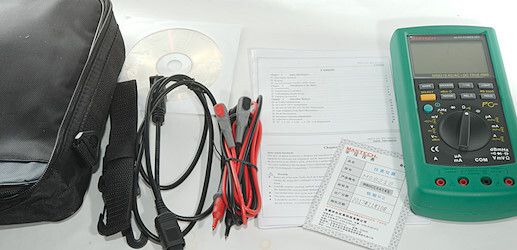

Include:

Meter

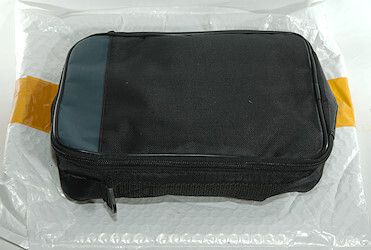

Pouch

Leads

RS232 cable

Manual and CD
