3018 Pro Cnc Router +2.5w Laser Engraver Engraving Machine W/ Offline Controller

Detailed Info

Description
Shipping Nationwide

Delivery takes 2 to 5 working days

Description :

DURABLE ALUMINUM PROFILES】 -
· 【UPGRADED THREE AXES】 - Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of T8 stainless steel screw rods whose lead distance is 4 mm. It uses double copper nuts to clear round trip errors.
· 【GRBL & OFFLINE CONTROL】 - The GRBL control features an XYZ axis drive and full functionality. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3.
· 【HIGH-SPEED MOTORS】 - u. And the engraver supports Windows XP SP3, win7, win8, win10 (32/64), macOS system, and other software to directly import JPG, BMP, PNG, DXF format files for engraving.

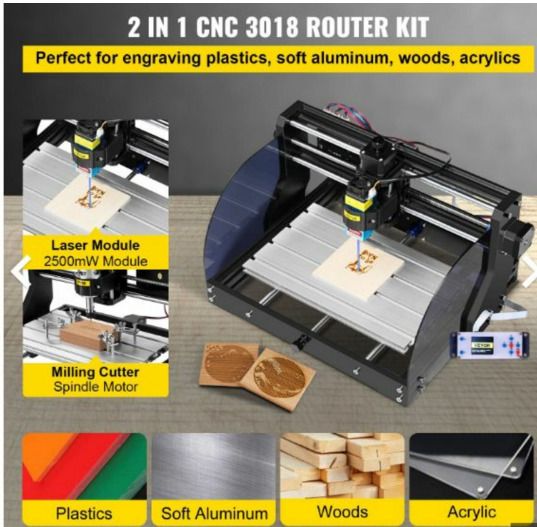

· 【EFFORTLESS OPERATION】 - For your convenience, we provide a detailed user manual, assembly instructions, and installation video. Assemble the engraver machine according to the installation instructions; then, you can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVCs, PCBs, and many more.

Specifications
Model: VG-S3018 Pro MAX

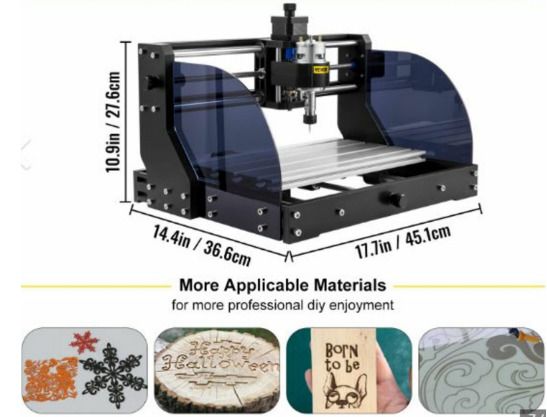

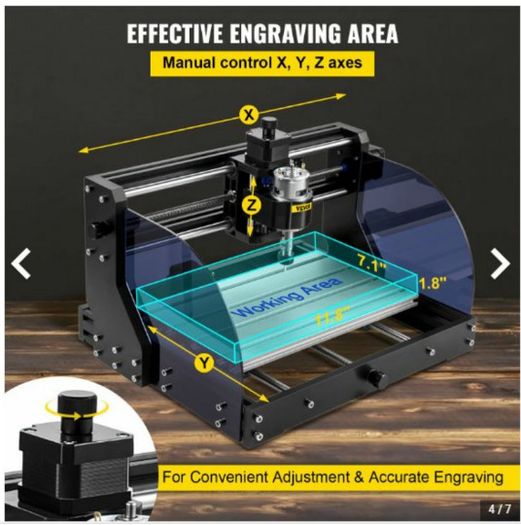

Effective Working Area(X x Y x Z): 11.8" x 7.1" x 1.8" / 300 x 180 x 45 mm

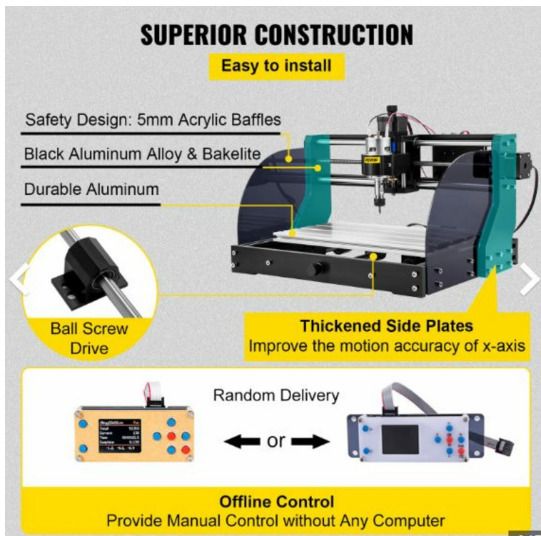

Materials: Aluminum Profile & Bakelite
Control Software: GRBL Control
Input Power: DC 24V 5A

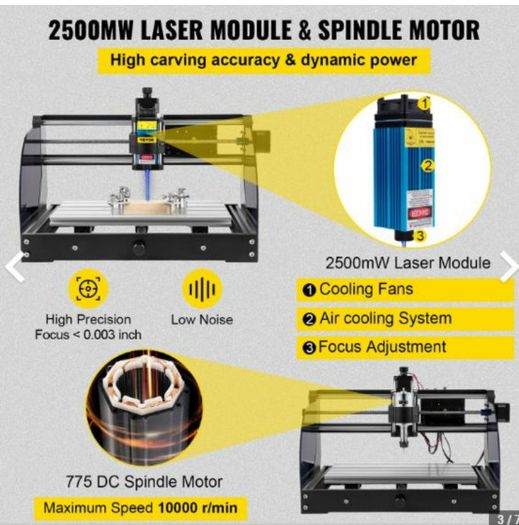

Spindle Speed: 10000 rpm
Stepping Motor: Size 42, 12V; Torque: 0.25 N/m
Driving Units: T8 Stainless Steel Screws
Cutter Diameter: 0.125" / 3.175 mm
Positioning Accuracy: 0.003"-0.004" / 0.08-0.1 mm
Item Dimension: 15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm

Package Content
1 x 3018 CNC Router Kit
1 x 2500mw Laser Module
1 x Spindle
1 x U-Disk (Software & Instruction)
1 x Set of Milling Cutter
1 x Pair of Protective Glasses
1 x USB Cable
1 x Power Supply
1 x Set of Tools
1 x Brush
1 x Manual
