eqd ledges reverb
Earthquaker devices Reverb
From classic standard reverberations to undiscovered sonic possibilities
Reverb with three modes and the ability to store and recall six presets, plus assignable expression control
Two global operating modes (Live Mode/Preset Mode) indicated by the colour of the Save/Recall switch
Silent relay-based switching with Flexi-Switch technology
Mode R: The shortest Room setting creates a small, chamber-like room sound that gradually gets bigger as it is turned it up
Mode H: The Hall setting creates a really big, boomy, and echo-rich reverb with distinct reflections
Mode P: The Plate setting creates bouncing reflections that recur and reverberate
Buffered bypass with tails

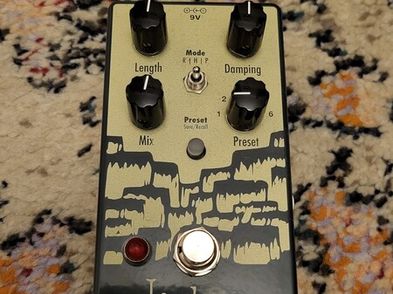

Controls for length, damping, mix and preset
Mode switch
Save/Recall switch
Bypass footswitch
Status LED
Metal housing
Input and output: 6.3 mm mono jack
Input for external control: 6.3 mm stereo jack
Power supply via optional 9 V DC power supply unit: 2.1 mm x 5.5 mm barrel connector, centre negative (not included)
Current consumption: 75 mA
Dimensions (L x W x H): 127 x 67 x 54 mm
Weight: 279 g
Handmade in USA
