Darkglass Microtubes X

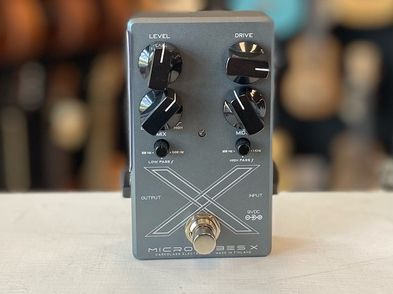

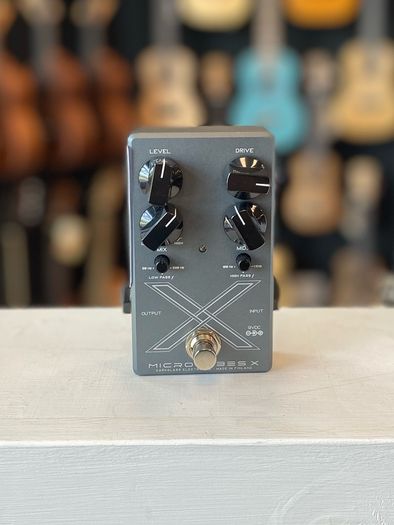

Darkglass Microtubes X Multiband Bass Drive Pedal, DG-X

Controls:
High-Pass Frequency: Controls the cutoff frequency to be distorted, ranging from 100Hz (for thicker, fuzzier saturation), to 1kHz for ultra-sharp definition
Low-Pass Frequency: Controls the cutoff frequency to be mixed back to the high-pass side, ranging from 50Hz (for only sub-bass), to 500Hz to preserve some cleam mids
Level: Sets the overall output volume of the unit
Drive: Sets the amount of distortion for the high-pass side
Mix: Sets the blend between low-pass and high-pass signals
Mids: Active mid control placed after the mix control (+/- 12dB at 500Hz)

Specification:
Input/Output: 6.5mm / 0.25" Jack
Input Impedance: 1M Ohm
Output Impedance: 1k Ohm
Power: Optional 9V PSU (9V DC Centre)
Current Draw: 30mA
Dimensions: 4.5cm x 7.5cm x 11.1cm
