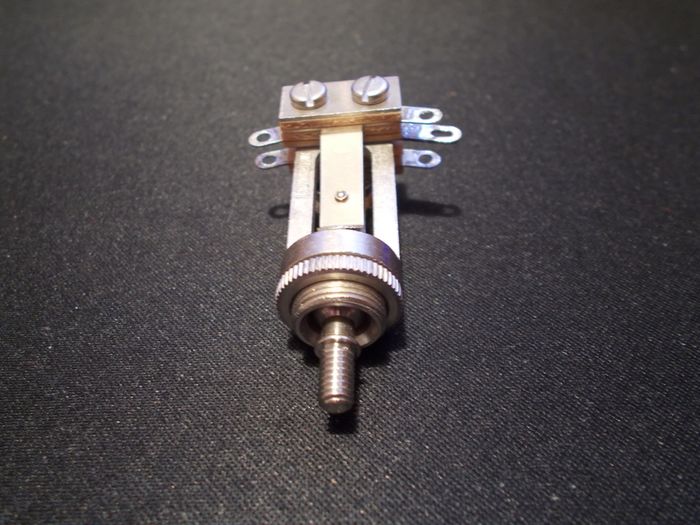

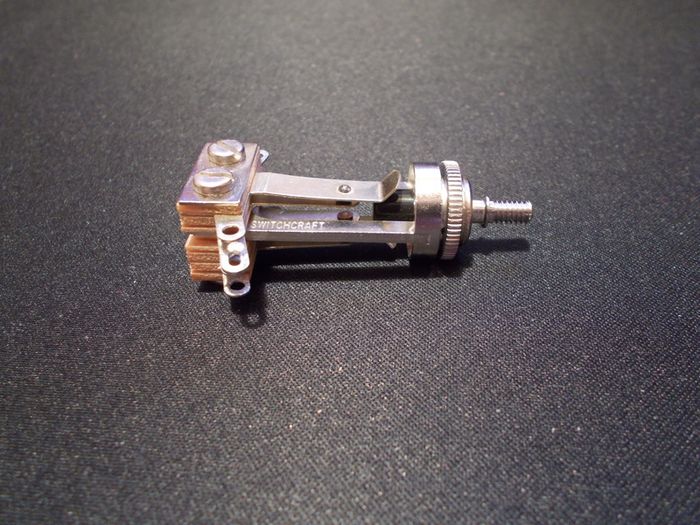

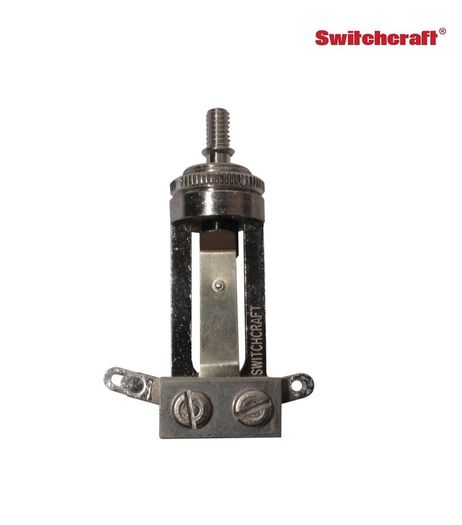

Switchcraft Long Straight 3-Way Toggle Switch for Gibson guitars

Tall toggle switch for Gibson Les Paul® guitars

The long straight toggle is recommended for most USA made guitars such as Gibson USA. It is the highest quality and most reliable open frame switch available. These have silver contact tips for noise-free and reliable operation and a longer lifespan than cheap Far Eastern imported switches. Includes a standard nut for mounting.

**For guitars where the switch mounts through the body, you will need to purchase a deep threaded round nut separately. These are also available from East-West Guitars.


Dimensions:
-Overall length 2, 9/64" (54.50mm)
-Threaded portion 3/16" (4.76mm)
-Required mounting hole dia. 15/32" (11.78mm)
1/2" (12.6mm) if recessed nut required
-Required body cavity depth - at least 1,19⁄32in (40.64mm)
-Contact Ratings: Fine silver contacts rated at 3A, 300W maximum AC non-inductive load standard.

SWITCH TIP NOT INCLUDED!
You may also need a deep knurled nut for these which are available from my shop.

**NOTE** Switchcraft pre-tins all lugs with solder from the factory making things easier for you to make your connections especially for the switch ground.
Reaming of the receiving hole will be required on Far Eastern imported guitars.

Feel Free to ask any questions
