Stratocaster Pre-Wired Harness
€80
Payment:
  • Visa
  • MasterCard
  • Paypal
  • Cash
Stock:
6 Available
Condition:
Brand new

*Please allow up to three working days between build time and postage.

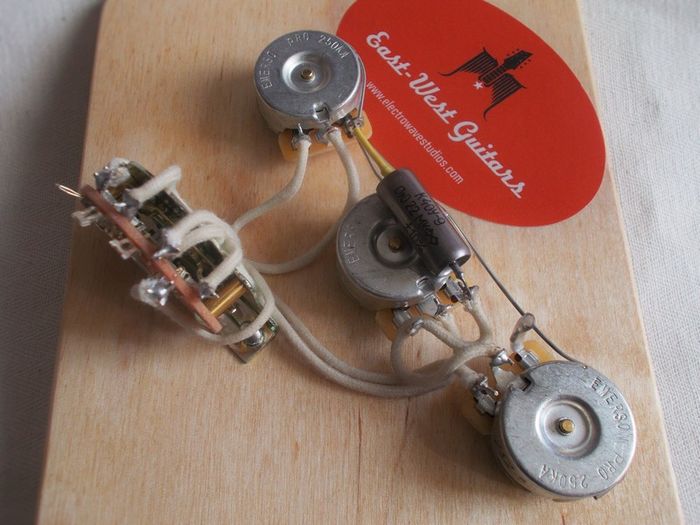

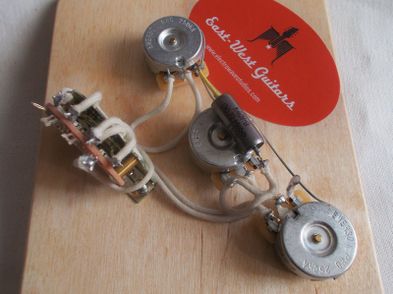

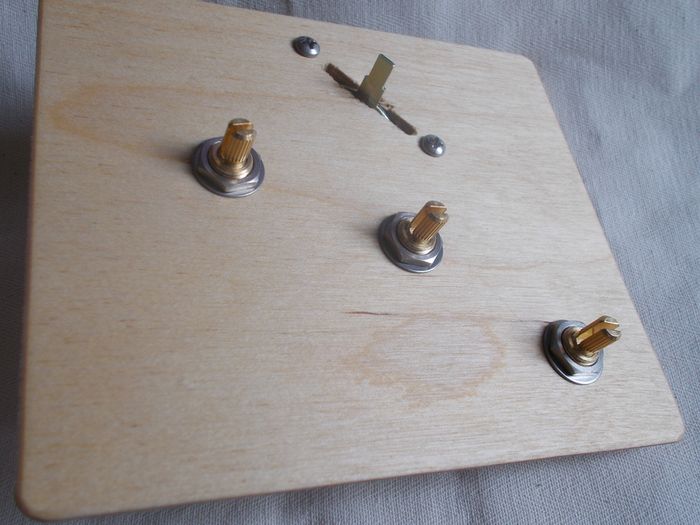

Fender Stratocaster prewired control harness with my own EWG treble bleed modification for tone integrity at lower volumes. Drop in upgrade for US and Mexican Strats. Will fit any guitar with the classic Stratocaster configuration.
*Holes in Far Eastern guitars (Squire and Affinity etc) may need to be reamed out with a 3/8" (10mm) drill bit.

**Can be supplied with crimp connectors for solderless hook up if required**

Kit includes:
• TAD Custom CTS 250K Split Shaft (audio taper/logarithmic) potentiometers (Matched)
• EWG treble bleed (not pictured)
• Oak Grigsby 5-Way Switch
• Switchcraft 1/4" Mono Input Jack with pre-wired harness using twisted vintage wire enclosed with heat shrink tubing and on terminals for strength
• Soviet NOS 0.047uf/47nF K42Y-2 Paper in Oil Capacitor (Tested within the ± 10% range) If you require a 22nF that can be arranged.
• 22 AWG vintage push-back wire, 18 AWG Buss Wire

Modifications:
• Volume mod (Treble bleed)
• Bridge Tone Control Mod
Normally there is no tone control for the bridge pickup on a Standard Strat wiring configuration. With this simple mod you can use the Mid tone control as your bridge tone control if you want to roll some of the highs off of that pickup.
If you don't require this mod you can snip the little wire jumper across the switch terminals.
See my other listing 'Stratocaster Tone Split Kit' for another option for this.
If you require a 'Blender' harness please inquire.

**Switch Tip and Control Knobs Not Included**


Terms and conditions: If for any reason you are not 100% satisfied with your purchase you can return it to us within 14 days and a full refund will be provided. Buyer assumes responsibility for return postage.
Postage is at the standard rate, if you want your items sent by registered post please send me a message.
Potentiometers and other electronic soldered components must be returned in an un-used, un-soldered state and in the original packaging.

More in Guitar Accessories
(791)
Seller:
Feedback:
Location:
East-West Guitars
483 0
Ballaghadereen, Roscommon
More from this seller
(179)
Shipping:
  • Collection
  • Ireland
  • Europe
  • Rest of world

  • Free
  • € 9.00
  • € 14.00
  • € 15.00
Entered/Renewed:

1 year ago

Ad Views:

8,173

  • Report ad
SELL SOMETHING SIMILAR
Comments
1 month
@Caffo: Hi. I've made a small change in the price to reflect the connectors for a solderless kit. Postage is €9 tracked/registered mail.
1 month
Hi how much for harness with solderless hook up and delivery to Louth?
7 months
@As.Daylight.Dies: Yes, if it has a humbucker bridge pickup I can add a couple of 470k resistors for the single coils so the volume pot will see a 250K load for them
7 months
Would this suit a Highway One Strat with Bare Knuckle Pickups?
8 months
@gretschsslvo: Hi Gert. Yes, all good there. It'll take e a couple of days to put that together for you as it's a bank holiday tomorrow.
8 months
Hi, I can’t see any confirmation of transaction?
Everything ok?
8 months
@gretschsslvo: That's no problem mate, thanks ; )
8 months
I just ordered strat pre wired harness and copper tape. I marked tape purchase “ I collect”thinking you will post both items together.
Is that ok?
10 months
OK Gary will do thanks!
10 months
@jfrice: Hi Justin,

Sure, that'd be no problem. Only thing is, you'll need to contact me direct about it for a custom harness through the East-West Guitars website. Also, I have no lefty pots left in stock except for 250K pots. Maybe they'd be ok for this but normally you want a 500K pot for the humbucker and a pair of shunt resistors for the single coils..
Gary
10 months
Hi There,

I was wondering if you could do a wiring loom for a Yamaha Pacifica? Its a HSS configuration similar to the strat lonestar wiring except there is only 1 tone and 1 volume. Also its a lefty.

No worries if you cant!

Thanks,
Justin
11 months
@jbdon: You'll want a 22nF cap for your tone pots and I'll change the price on the listing if you want to go ahead with it. Now, sometimes the humbucker will sit ok with the middle pickup, but if not you'll need a different harness to auto-split the humbucker
11 months
@jbdon: Hi, this harness will do. If you want 500K pots you might need to put a shunt resistor across your single coils if they're too bright sounding. I can include a couple of them with your harness.
11 months
Hi, could you make a HSS right hand harness? I guess I would need different pots/capacitors for the humbucker?
