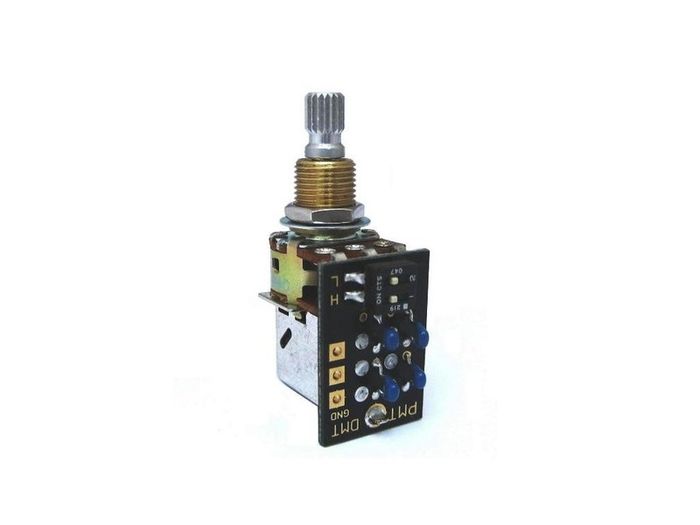

DMT Dual Mode High & Low Pass Tone Control

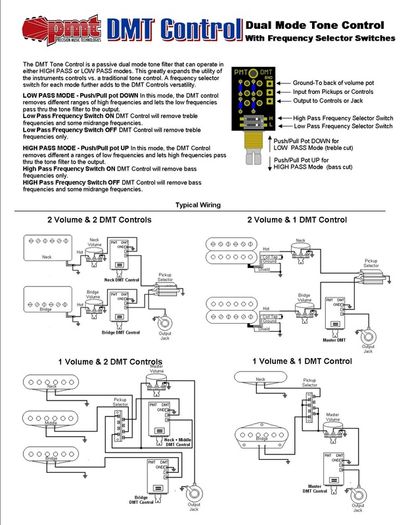

The DMT-G Tone Control is a passive dual mode tone control designed specifically for electric guitars that can operate in either HIGH PASS or LOW PASS modes greatly expanding the instruments tonal possibilities. Micro switches on the circuit board provide the user the ability to select one of two different frequency ranges for both high and low pass modes. Easy installation with no capacitors or other parts needed. Replace the tone control in you guitar with one that you will actually use!

DMT-G Dual Mode Tone Control Features:
•Operates in Low Pass or High Pass modes.
•Each mode has selectable frequency range.
•Tuned specifically for electric guitar
•Works with all Single Coils & Humbuckers
•Completely passive-No battery needed.
•No affect on tone at full clockwise setting.
•Simple three wire installation.

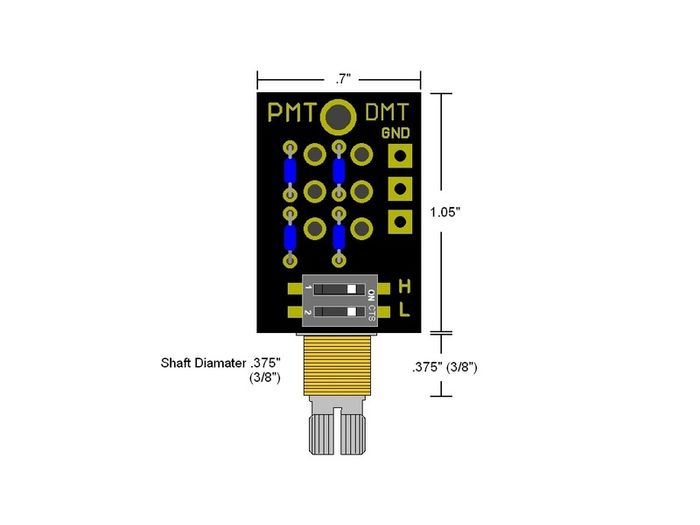

Dual Mode Tone Control Specs:
***Metric Spec. Potentiometer***
Shaft Material: Aluminum
Shaft Type: Split Knurl
Spline Count (Type): 18 (Coarse)
Spline Height: 9.5mm (3/8".375")
Threaded Shaft Material: Brass
Threaded Shaft Length: 9.5mm (3/8" .375")
Threaded Shaft Diameter: 9.5mm (3/8" .375")
Thread Pitch: 9.5mm (3/8-32NEF)
Required Cavity Depth: 28mm (1.1")

Feel free to ask questions
