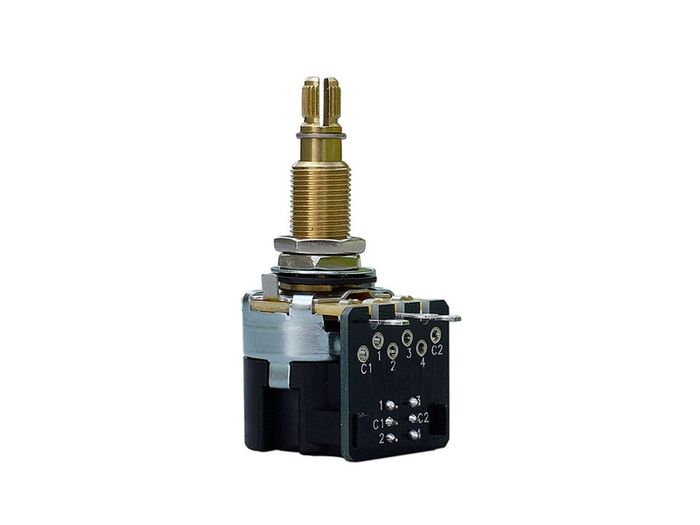

CTS Push-Pull (DPDT) Potentiometer, 500K Long Shaft

Buy direct from our website through the following link>>

https://www.eastwestguitars.com/product/cts-push-pull-potentiometer-long-shaft/

For deep control cavities such as Gibson Les Paul guitars.
The best push-pull potentiometer on the market! Custom made with the smoothest taper possible and the tightest tolerance available.

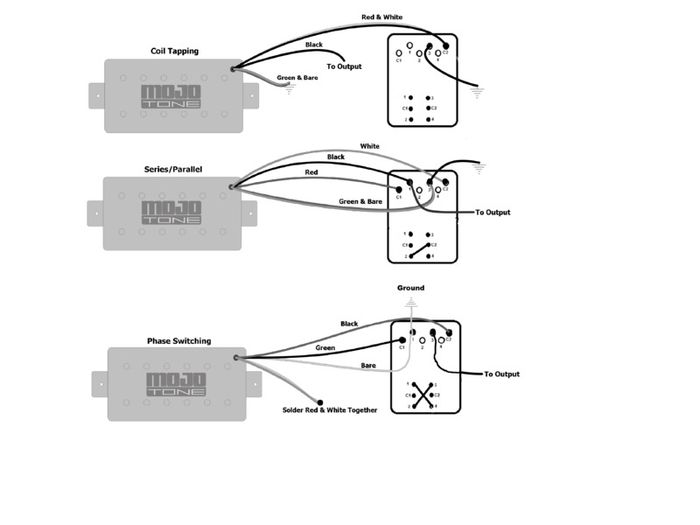

Use for coil tapping, series parallel switching and phase reverse. Wire your guitar in new and imaginative ways.

-Choice of 250K or 500K
-Shaft Diameter: 3/8'' (9.40mm)
-Thread: 3/8'' x 32
-Shaft Height: 3/4'' (19mm)
-Solid brass split shaft and bushing (3/8'' diameter x 3/8'' length)
-Required Mounting Hole: +3/8'' (9.5mm)
-Tolerance: +-10%
-Taper Resistance: 15%

Feel Free to ask any questions

Terms and conditions: If for any reason you are not 100% satisfied with your purchase you can return it to us within 14 days and a full refund will be provided. Buyer assumes responsibility for return postage.
Potentiometers and other electronic soldered components must be returned in an un-used, un-soldered state and in the original packaging.
