Bourns Dual MN Taper Balance/Blend Pot, With Center Detent (Various types)

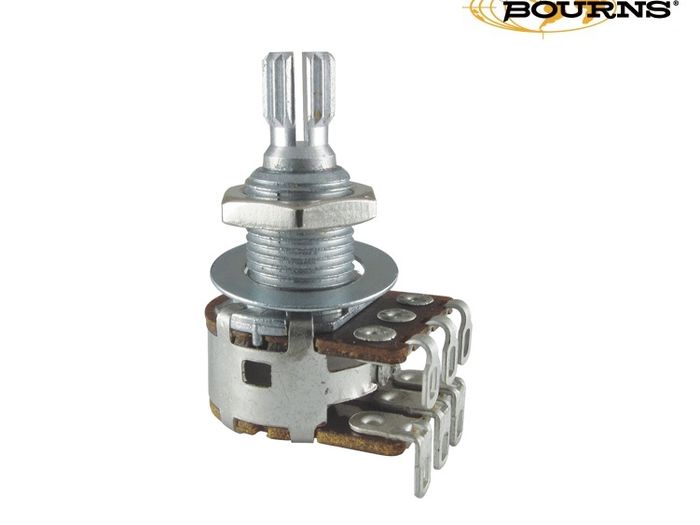

Choose between split shaft or solid shaft. *These are metric parts with coarse teeth so US spec knobs won't work with the split shaft option


Dual MN taper blend-balance with center detent. Split shaft. 17 mm body diameter. ¼" watt, 300° rotation. ¼" shaft diameter. Solder lugs. ⅜" bushing.

M taper: 0% to 100% output voltage from 0% to 50% rotation (linear). 100% ouput voltage from 50% to 100% rotation.

N taper: 100% output voltage from 0% to 50% rotation. 100% to 0% ouput voltage from 50% to 100% rotation (linear).

Full output for both outputs at 50% rotation (center detent).

Feel Free to ask any questions
