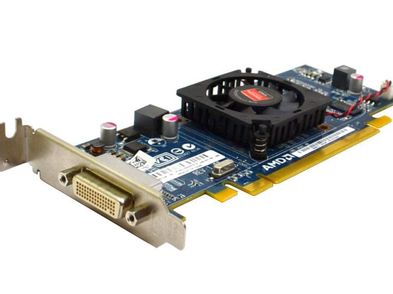

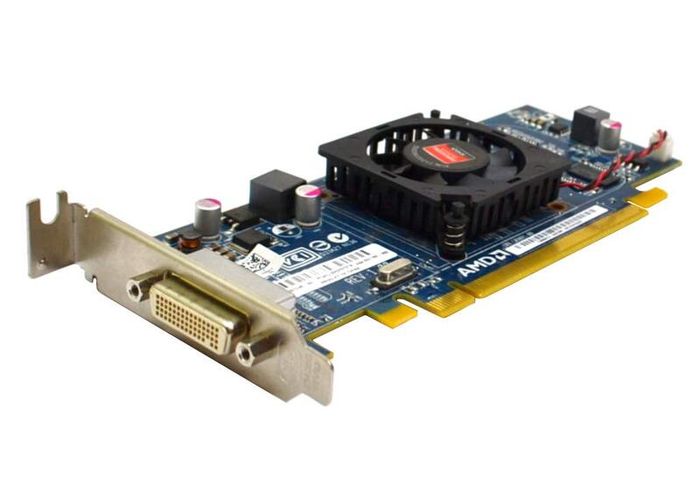

Amd Radeon Hd 6350 512mb Ddr3 (ati-102-c09003(b)) - Low Profile

Core Specifications:
GPU Architecture: TeraScale 2 (Cedar PRO)
Process Technology: 40 nm
Transistor Count: 292 million
Die Size: 59 mm²
Stream Processors: 80
Texture Mapping Units (TMUs): 8
Render Output Units (ROPs): 4
Core Clock Speed: 650 MHz
Memory Clock Speed: 500 MHz (1.0 Gbps effective)
Memory Type: 512 MB DDR3
Memory Interface: 64-bit
Memory Bandwidth: 8.0 GB/s
Bus Interface: PCI Express 2.0 x16
TDP (Thermal Design Power): 19 W
Power Connector: None required (bus-powered)

Display Outputs:
Output Interface: DMS-59 connector (supports dual DVI or VGA via adapter)

Cooling & Form Factor:
Form Factor: Low-profile (half-height)
Cooling Solution: Passive heatsink (no fan)
Slot Width: Single-slot

Key Features:
API Support: DirectX 11.2, OpenGL 4.5
Shader Model: 5.0
OpenCL Version: 1.2
Multi-Monitor Support: Yes (via Eyefinity technology)
Video Acceleration: Unified Video Decoder (UVD)

Physical Dimensions:
Card Length: Approximately 168 mm
Slot Occupancy: Single-slot

Low Profile
