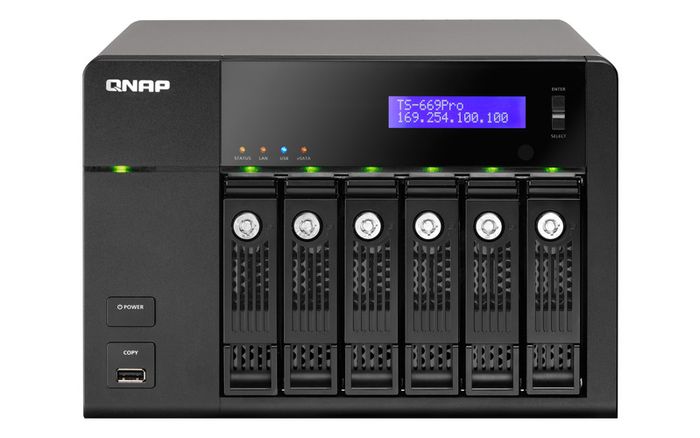

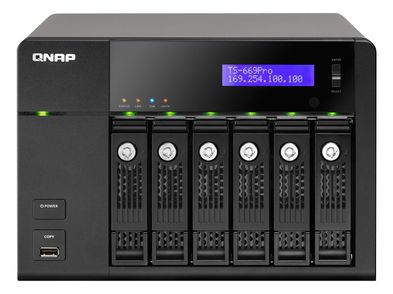

Qnap Ts-669 Pro

QNAP TS-669 Pro

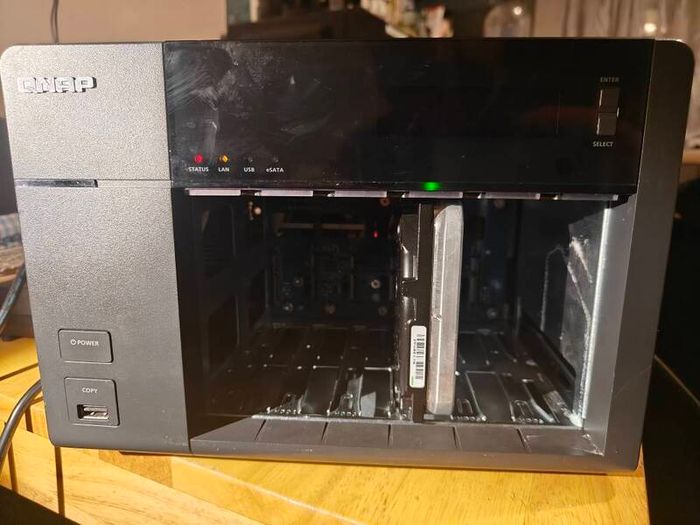

NO DRIVE CADDYS
NO HARD DRIVES INCLUDED

Hardware specifications:

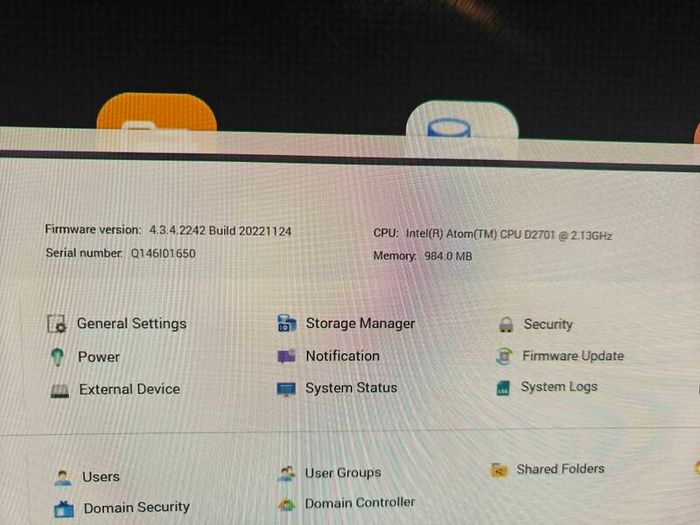

CPU Intel® Atom™ 2.13GHz Dual-core Processor
DRAM 1GB RAM (Expandable RAM, up to 3GB)
NOTE:
1. The system memory can be increased to 3GB by installing an additional 1GB/2GB SO-DIMM RAM module.
2. For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide
Flash Memory 512MB DOM
Hard Disk Drive 6 x 3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD
NOTE:
1. The system is shipped without HDD.
2. For the HDD compatibility list, please visit Compatibility list.
Hard Disk Tray 6 x Hot-swappable and lockable tray
LAN Port 2 x Gigabit RJ-45 Ethernet port
LED Indicators Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5, HDD 6
USB 2x USB 3.2 Gen 1 port (Back: 2)
5x USB 2.0 port (Front: 1; Back: 4)
Support USB printer, pen drive, USB hub, and USB UPS etc.
eSATA 2 x eSATA port (Back)
Buttons System: Power button, USB One-Touch-Backup Button, Reset button

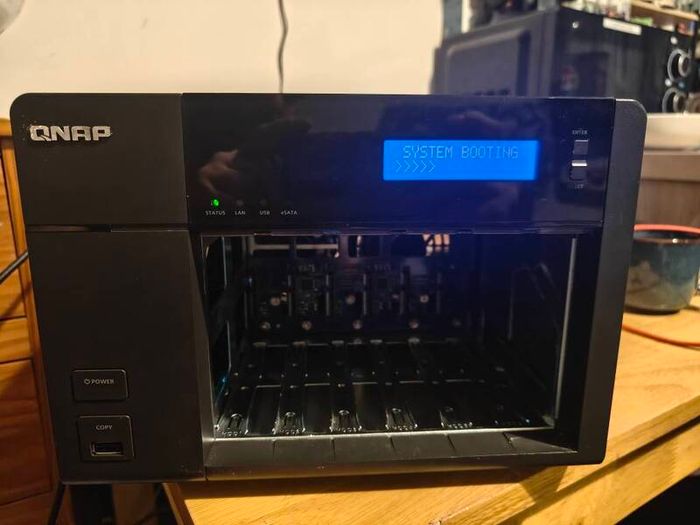

LCD panel Mono-LCD display with backlight
Enter button, Select button for configuration
Alarm Buzzer System warning
Form Factor Tower
Dimensions 175 (H) x 257 (W) x 235 (D) mm
6.89 (H) x 10.12 (W) x 9.25 (D) inch
Weight Net weight: 5.2 kg (11.46 lbs)
Gross weight: 6.5 kg (14.33 lbs)
Sound Level (dB) HDD sleep: 18.3 dB
In operation: 25.5 dB
(with 6 x 500GB HDDs installed)
Power Consumption (W) Sleep mode: 31.5W
In Operation: 63.6W
Power-off (in WOL mode): 1W
(with 6 x 500GB HDD installed)
Temperature 0-40˚C
Humidity 5~95% RH non-condensing, wet bulb: 27˚C.

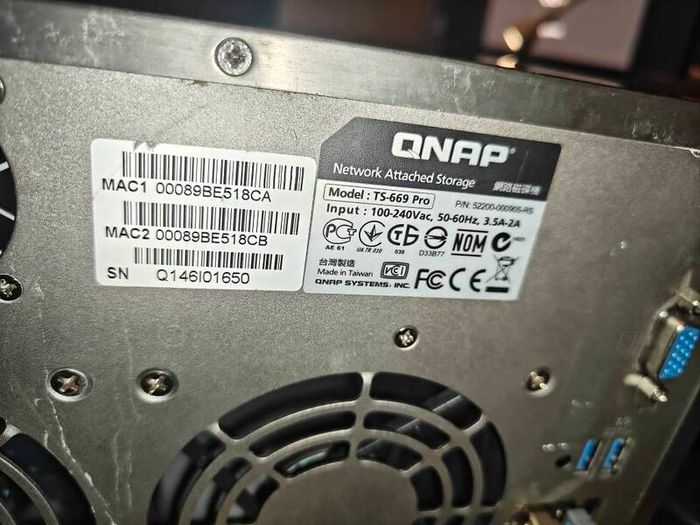

Power Supply Input: 100-240V AC, 50/60Hz, Output: 250W
Secure Design K-lock security slot for theft prevention

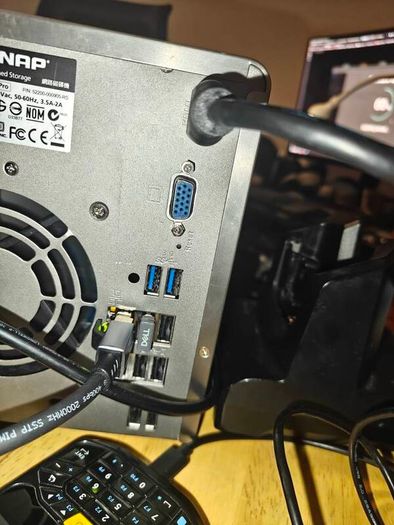

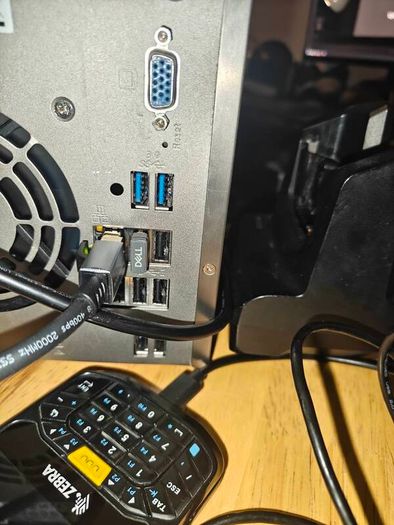

VGA Reserved VGA interface for maintenance
HDMI™ v1.3
IR Receiver Compatible with either QNAP RM-IR001 or MCE remote controls
Fan 2 x quiet cooling fan (9 cm, 12V DC)

Software specifications:

Operating System
Embedded Linux

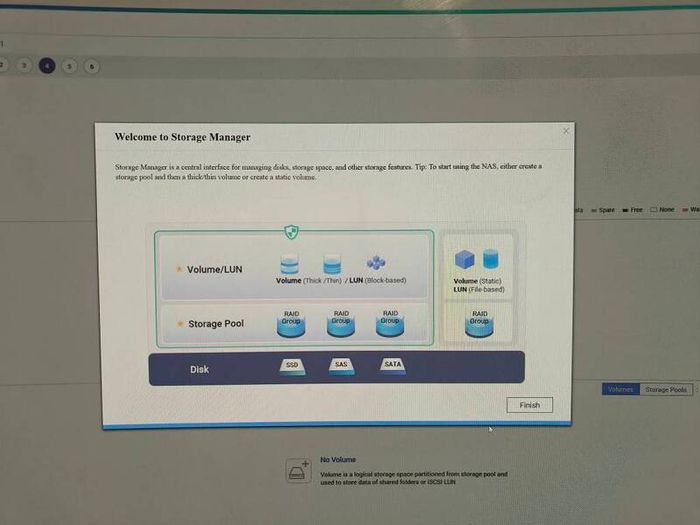

Disk Management

Single Disk, JBOD, RAID 0, 1, 5, 5 + Hot Spare, 6, 6 + Hot Spare, 10, 10 + Hot Spare
Online RAID Capacity Expansion & Online RAID Level Migration

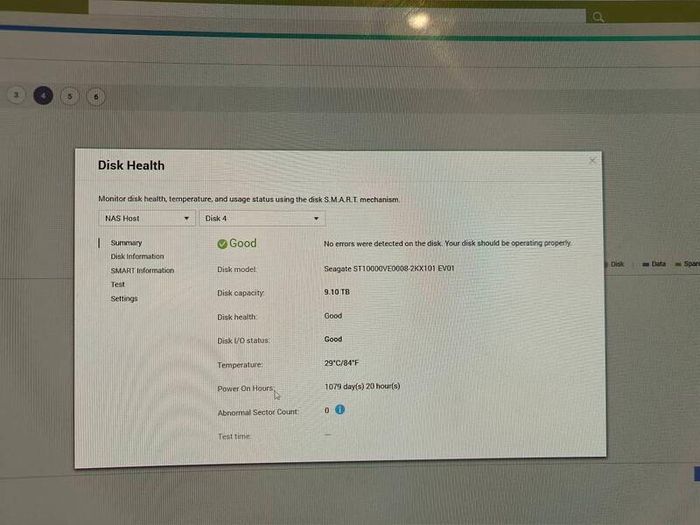

Bad Block Scan & Hard Drive S.M.A.R.T.
Global Hot Spare Drive (4-bay NAS and above)
RAID Recovery
Bitmap Support

Supported Clients

Apple Mac OS 10.7 or later
Linux and UNIX
Microsoft Windows 7, 8, and 10
Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2 and 2016


iSCSI (IP SAN)

iSCSI Target
Multi-LUNs per Target
Up to 256 Targets/LUNs Combined
Supports LUN Mapping & Masking
Online LUN Capacity Expansion
Supports SPC-3 Persistent Reservation
Supports MPIO & MC/S
iSCSI LUN Backup, One-time Snapshot, and Restore
iSCSI Connection and Management by QNAP Finder (Windows)
Virtual Disk Drive (via iSCSI Initiator)
Stack Chaining Master
Max No. of Virtual Disk Drives: 8

Supported Browsers

Microsoft Internet Explorer 10+
Mozilla Firefox 8, 9, 10
Apple Safari 4, 5
Google Chrome


Server Virtualization & Clustering

Supports VMware vSphere
Supports Citrix XenServer
Supports Windows Server 2008 R2 Hyper-V & Failover Clustering

Multilingual Support

Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish


Power Management

Wake on LAN
Internal Hard Drive Standby Mode
Scheduled Power on/off (Max 15 Settings)
Automatic Power on after Power Recovery
USB and Network UPS Support with SNMP Management

File System

Internal Hard Drive: EXT3, EXT4
External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+


Access Right Management

Max No. of Users: 4,096
Max No. of User Groups: 512
Max No. of Network Shares: 512
Batch Users Creation
Import/Export Users
User Quota Management
Subfolder Permissions Support for CIFS/SMB, AFP, FTP and Web File Manager

Networking

TCP/IP (IPv4 & IPv6: Dual Stack)
Dual Gigabit NICs with Jumbo Frame
Failover
Multi-IP Settings
Port Trunking/NIC Teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb)
Service Binding based on Network Interfaces
Virtual LAN (VLAN)
DHCP Client, DHCP Server
Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
UPnP & Bonjour Discovery
USB Wi-Fi Adapter Support


Domain Authentication Integration

Microsoft Active Directory (AD)
LDAP Server
LDAP Client
Domain Users Login via CIFS/SMB, AFP, FTP, and Web File Manager

Backup Solution

Real-time Remote Replication (RTRR)
Works as Both RTRR Server & Client with Bandwith Control
Real-time & Scheduled Backup
Encryption, Compression, File Filter, and Transfer Rate Limitation
Block-level Remote Replication
Works as Both Rsync Server & Client with Bandwidth Control
Encrypted Replication between QNAP NAS Servers
USB One Touch Backup (Import/Export)
Desktop Backup by QNAP NetBak Replicator for Windows
Apple Time Machine Support with Backup Management
Data Backup to Multiple External Storage Devices
Data Backup to Cloud Storage (Amazon S3, ElephantDrive)


MyCloudNAS Service

Private Cloud Storage and Sharing
Free Host Name Registration (DDNS)
Auto Router Configuration (via UPnP)
MyCloudNAS Connect for Easy Connection (Windows utility)

Security

IP Filter and Policy-based Automatic IP Blocking
Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication between QNAP NAS Servers (Rsync over SSH)
CIFS Host Access Control for Shared Folders
Antivirus Protection
FIPS 140-2 Validated AES 256-bit Volume-based Data Encryption*
AES 256-bit External Drive Encryption*
Importable SSL Certificate
Instant Alert via E-mail, SMS, Instant Messaging (Windows Live), Beep, and LCD Panel


Storage Plug & Play

Windows Software: QNAP Finder
Create and Map Shared Folders
Create and Connect to iSCSI Target/LUN

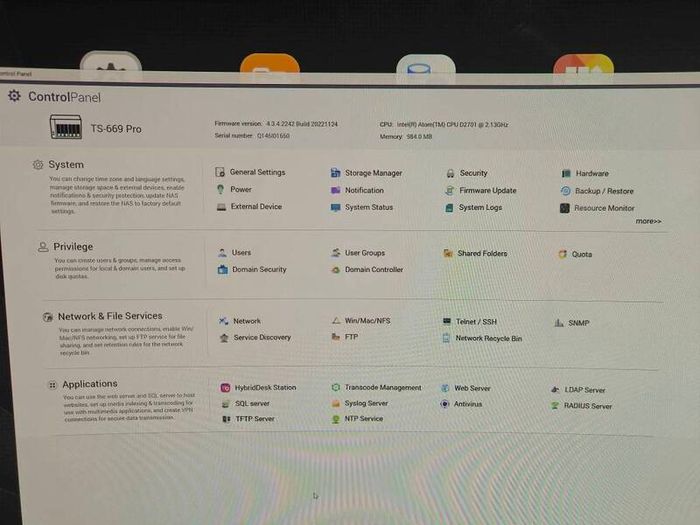

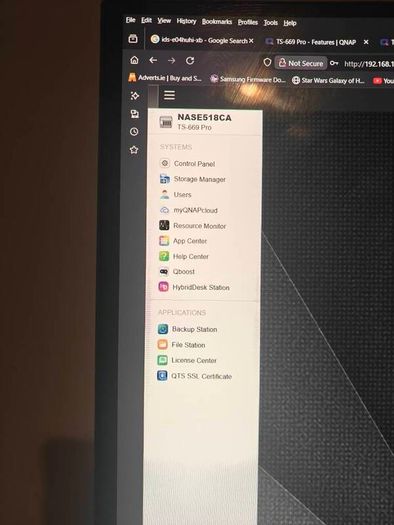

Web Administration

AJAX-based User Interface
Smart Fan Control
Dynamic DNS (DDNS)
SNMP (v2 & v3)
Resource Monitor
Network Recycle Bin for File Deletion via CIFS/SMB and AFP
Comprehensive Logs (Events & Connection)
Syslog Client

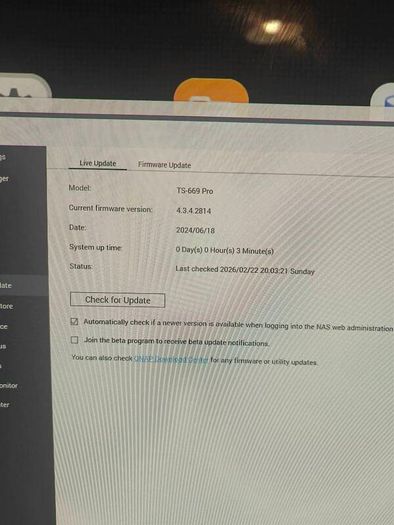

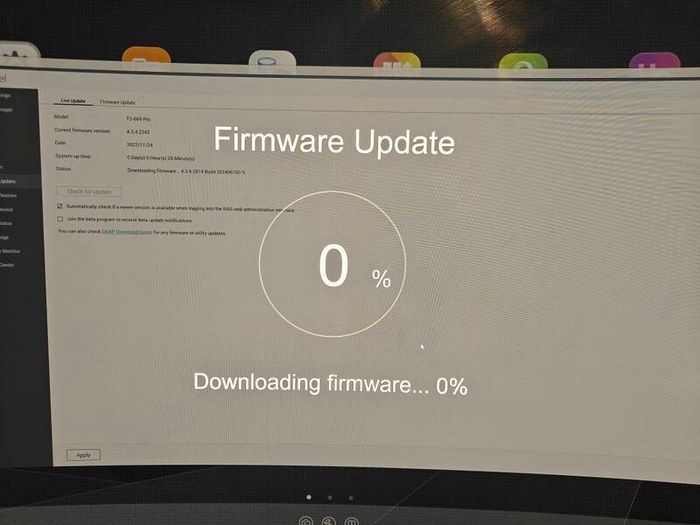

Firmware Live Update
System Settings Backup and Restore
Restore to Factory Default


Powerful All-in-one server
File Server

File Sharing across Windows, Mac, and Linux/UNIX
Shared Folder Aggregation (CIFS/SMB)
Web File Manager
Supports ISO Mounting
Direct File Viewing via Google Doc
Create and Send Download Links for Public File Sharing with Expiration Time and Password Protection


Photo Station

Supported File Formats:
Photo: BMP, JPG, JPE, PNG, TGA, GIF, and more.
Video: API, MP4, and more.
Image Slideshow with Background Music, Thumbnails, and Different Playback Modes
Online Photo Editing by Pixlr Editor
Geotagging Photos with Google Maps
Slideshow Sharing (from Private Albums) with Password Protection
Photo Publishing to Social Websites (Facebook, MySpace, Twitter, Plurk, and Blogger)
Photo Sharing by Email

FTP Server

FTP over SSL/TLS (Explicit)
Max No. of Concurrent Connections: 256
FXP Supported
Passive FTP Port Range Control
FTP Bandwidth & Connection Control
Unicode Support


Music Station

Plays or Shares Music Collections with Web Browser
Automatic Classification via Media Library
Supported audio format: MP3, FLAC, OGG, WAV, AIF, AIFF, and more.
* DRM encryption format is not supported.
Internet Radio (MP3)
Up to 8 Music Alarms

Backup Server

Remote Replication Server (over Rsync)
Real-time Remote Replication to another QNAP NAS or FTP Server
Apple Time Machine Support
Windows Client Backup Application: QNAP NetBak Replicator
Third Party Backup Software Support: Acronis True Image, CA BrightStor, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper, etc.


Download Station

PC-less BT, FTP, HTTP Download (up to 500 Tasks)
BT Download
Supports TCP/UDP Tracker Protocol
Scheduled Download
Configurable Port Range
Bandwidth Control
UPnP NAT Port Forwarding
RSS Subscription and Download (Broadcatching)
Selectable Download Files
HTTP/ FTP Download
Configurable Saving Directory
Bulk Download with Wildcard Settings
RapidShare Download Support
QNAP Download Management Software: QGet
For Both Windows & Mac OS
Manage the Download Tasks of Multiple QNAP NAS Remotely over LAN or WAN

Web Server

HTTP/HTTPS Connections
Supports WebDAV Connection
Support Virtual Host (Max: 32)
Importable SSL Certificate


Surveillance Station

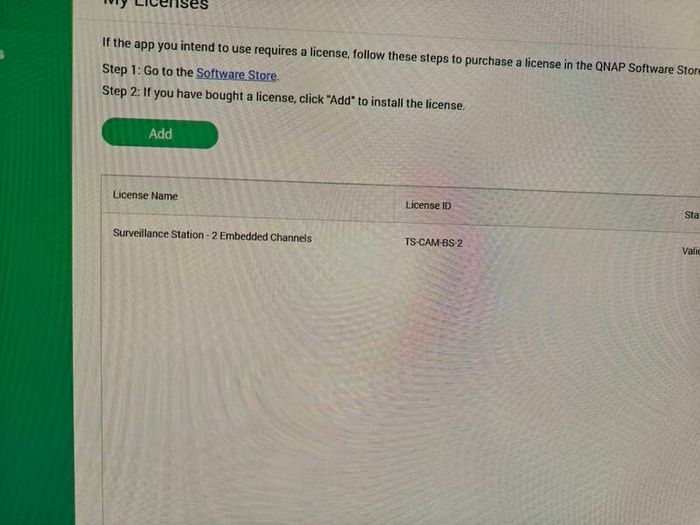

Max. IP Cameras: 16, optional purchase (2 free license included, supported network cameras)
Mobile app: Vmobile (iOS & Android)

Database Server

Built-in MySQL Server (v5.1.36)
Web-based Management via phpMyAdmin (QPKG)


Antivirus

Protection against the Latest Known Viruses, Trojans, and Other Threats
Free Virus Databases Update on Manual or Scheduled Basis
Multiple Scan Tasks (Max: 64, Concurrent: 5) with Custom Folder Selection and Scheduled
Scanning
Email Notification upon Task Completion or Virus Detection
Quarantines or Deletes Infected Files

Print Server

Max No. of Printers: 3
Supports Internet Printing Protocol
Print Job Display and Management
IP- and Domain Name-based Privilege Control
Supports Apple Bonjour Printing


Antivirus

Protection against the Latest Known Viruses, Trojans, and Other Threats
Free Virus Databases Update on Manual or Scheduled Basis
Multiple Scan Tasks (Max: 64, Concurrent: 5) with Custom Folder Selection and Scheduled
Scanning
Email Notification upon Task Completion or Virus Detection
Quarantines or Deletes Infected Files

Syslog Server

Centralized Log Monitoring and Archiving
Immediate E-mail Alerts
Supports Log Filtering


QPKG Center

Expands Application Services by Easy Online Installation
A Wide Variety of Official and Community QPKG Add-ons

The actual available QPKGs may vary depending on the NAS platform.

Business
eyeOS
GLPI
Squid Proxy Server
Vtiger CRM
CMS
Gallery
Joomla!
WordPress
Xoops
Communications
Asterisk
XMail
Xeams
Download
MLDonkey
NZBGet
pyLoad
SABnzbdplus
Transmission
Entertainment
IceStation
Plex Media Server
PS3 Media Server
Squeezebox Server
Utilities
iStat
Optware IPKG
phpMyAdmin
Piwik
Misc.
Java Runtime Environment
Mono
Python
QUSBCam
Tomcat

… and more.
