Tow Bar (Iveco Daily van/chassis cab) + Free Roof Rack

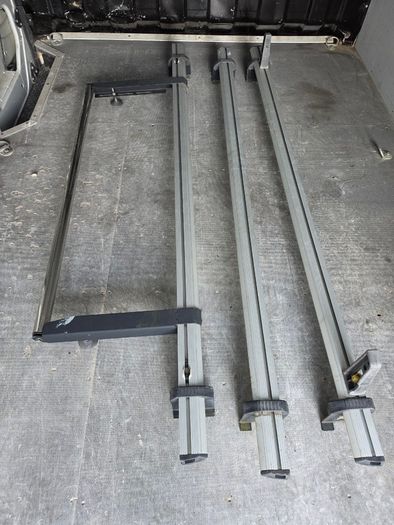

UPDATE: Free Roof Rack with Tow Bar

This is a heavy-duty commercial vehicle tow bar manufactured by Horizon Global (parent company of brands like Witter, Westfalia, and Brink), designed specifically for an Iveco Daily van/chassis cab.

Electric part is more than likely not working and apologies but can't tell, doubt it though

New, this tow bar (Witter / Horizon Global part number IV08) typically retails in the range of €175 to €240 / £150 to £210 for the bare towbar beam and sidearms.

Typical Price Breakdown:

Towbar assembly only (IV08 beam + sidearms): ~€175 – €200
Complete kit (Towbar + standard 2-bolt flange towball + universal 7-pin electrics): ~€230 – €280
Dedicated vehicle-specific wiring kit (13-pin): Adds ~€80 – €140 depending on whether your Daily has factory towbar preparation

Identification Details
* Manufacturer: Horizon Global
* Part / Model Code: IV08 (indicating Iveco Daily)
* ECE Approval Number: E11 55R-01 9978 (Type-approved under UN/ECE Regulation 55 in the UK)
* Coupling Class: A50-X (Standard 50 mm ball coupling bracket / flange fitting)
Technical Specifications
* D-Value: 22.40\text{ kN} (A very high D-value suitable for commercial towing up to 3,500\text{ kg})
* Max Vertical Load (S-Value / Nose Weight): 250\text{ kg}
* Serial / Barcode Identifier: 210729202130100088


For the Witter / Horizon Global IV08 towbar (designed for the 2014+ Iveco Daily 30–50 short overhang chassis cab and van):
PF Jones

1. Cross-Tube (Pipe) Diameter
Outer Diameter (OD): 76.2 mm (3 inches / 3" OD) standard heavy-duty round steel tube (typically 6.0 mm or 6.3 mm wall thickness to achieve the Class 2, 3,500 kg towing capacity and 22.4 kN D-value rating).

2. Pipe Length Between the Two End Plates
Clear Length Between Flanges/End Plates: Approximately 730 mm to 740 mm (nominally ~735 mm).

Technical Context & Fitment Geometry
Iveco Daily Chassis Span: The Iveco Daily ladder chassis rails have an outer frame spacing of 860 mm.
4053380d04.clvaw-cdnwnd.com

Sidearm Clearance: The heavy-gauge sidearms (plates B and C) bolt along the chassis members with spacer/washer packs. The crossbar assembly (A) mounts inboard between the vertical drop plates using three M14 bolts per side (fixings E).

Overall Crossbar Assembly Width: The overall width including the welded end plates/flanges is approximately 775 mm to 780 mm. With each welded end plate typically being 12 mm to 15 mm thick steel plate, the clear pipe section between the inside faces of the two plates measures approximately 735 mm.
