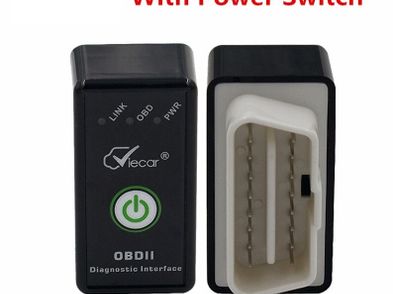

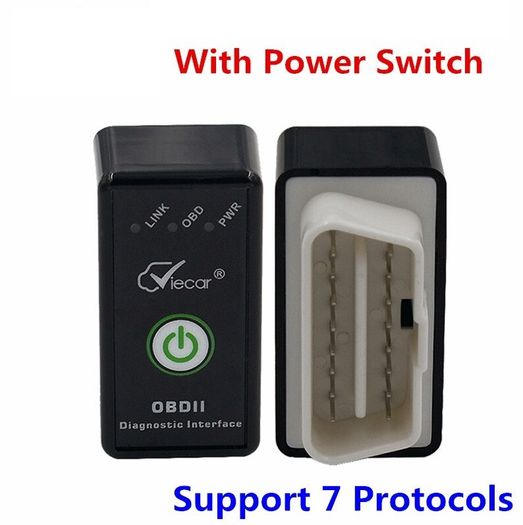

V2.1 Super MINI ELM327 Viecar Bluetooth 2.0 OBD2 Auto Diagnostic Interface Viecar ELM 327 With Power Switch

Description:

OBD-II Software for Viecar OBDII Bluetooth 2.0 (VC004-B) with Switch is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.

The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the Entire contents of the folder where the program resides.



Compatible software:

Window version: ScanMaster-ELM, ScanTool.net113win, PCMSCAN;

Android version: Torque, OBD Car Doctor, Mini OBD, DashCommand, EOBD;

Symbian version: OBDScope.



Multi-Protocol Supported:

ISO9141-2 (5 baud init, 10.4Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)





Functions:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2. Clear trouble codes and turn off the MIL ("Check Engine" light)

3. Display current sensor data, including:

4. Engine RPM

5. Calculated Load Value

6. Coolant Temperature

7. Fuel System Status

8. Vehicle Speed

9. Short Term Fuel Trim

10. Long Term Fuel Trim

11. Intake Manifold Pressure

12. Timing Advance

13. Intake Air Temperature

14. Air Flow Rate

15. Absolute Throttle Position

16. Oxygen sensor voltages/associated short term fuel trims

17. Fuel System status

18. Fuel Pressure

AND Many others...
