Oil pump dragon seal Opel Insignia 2.0 CDTI

Application:
Opel Insignia A (year of production 2009-2017)
Opel Cascada (year of production 2013-2018)
Opel Astra J (year of production 2009-2015)
Opel Zafira C (year of production 2012-2018)
with engines with code markings:

2.0 CDTI, A20DTC / A20DTL, 81kW (110KM)
2.0 CDTI, A20DTJ / A20DT, 96kW (131KM)
2.0 CDTI, A20DTE, 88kW (120KM)
2.0 CDTI, A20DTE, 103kW (140KM)
2.0 CDTI, A20DTH, 118kW (160KM)
2.0 CDTI, A20DTH, 120kW (163KM), from 07/2013
2.0 CDTI, A20DTR, 140kW (190KM)
2.0 CDTI, A20DTR, 143kW (195KM), from 2012

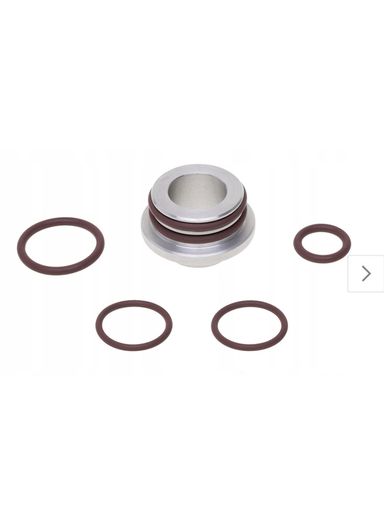

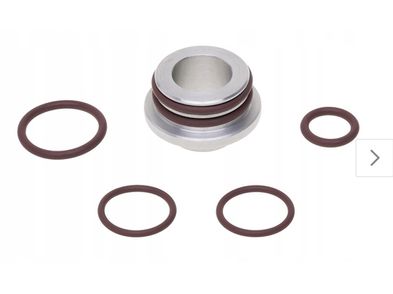

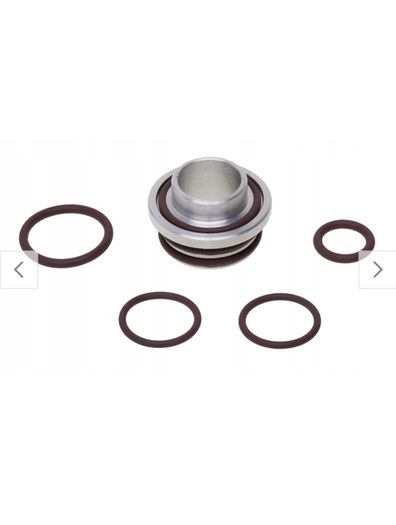

Set contains:
Dragon seal (aluminum) - 1 pc.
O-Ring sealing thuja (Viton) - 3 pcs.
O-Ring sealing the oil level sensor plug (Viton) - 1 pc.
O-Ring sealing the pneumothorax inside the oil pan (Viton) - 2 pcs.
O-Ring sealing the pneumothorax outside the oil pan (Viton) - 1 pc.

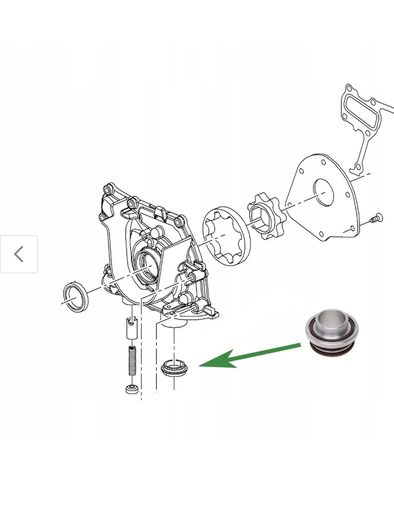

The dragon gasket is an O-ring located between the oil pump and the dragon assembly in an Opel Insignia with a 2.0 CDTI diesel engine. Its main task is to seal this connection. However, over time, the seal hardens and leaks oil, which causes the lubrication pressure to drop. This situation may quickly lead to the engine seizing up.

The aluminum sleeve-gasket connecting the oil pump with the pump replaces the defective factory seal of the oil pump, which causes the engine to seize. The new sealing sleeve creates a permanent connection between the pump and the oil pan, which eliminates the manufacturing defect of this engine. It does not deform like the factory seal. The set includes O-rings made of Viton, a material resistant to high temperatures and engine oil. Replacing the old factory seal with such a sealing sleeve is simple, just remove the old seal and install a new sleeve in place of the old one.
