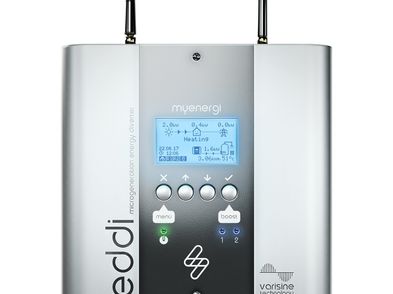

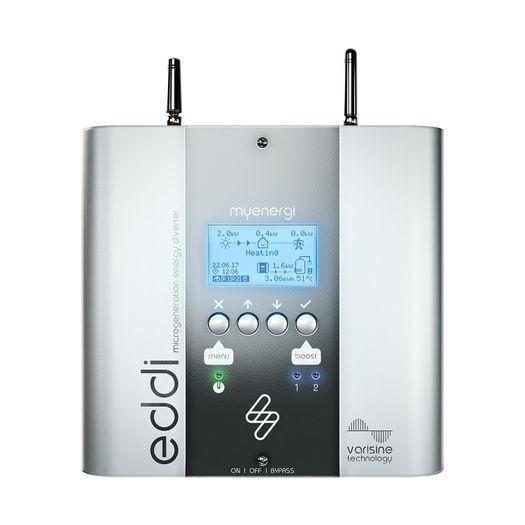

EDDi My Energy

Electrical Ratings: Operates at 230V AC Single Phase (+/- 10%), 50/60Hz, with a rated power of 3.68 kW and 16A current. Standby power is 3W.

Load & Generation: Supports heater loads from 100W up to 3.68kW. Supported generator size is unlimited, subject to a maximum 100A per phase grid supply.

Connectivity & Communication

Network & Links: Features integrated Wi-Fi (2.4GHz) and an RJ45 Ethernet port, removing the need for a separate Myenergi Hub for app access. Uses an 868MHz/915MHz radio protocol for local Myenergi device pairing.

Sensors: Supports up to a 100A primary current grid sensor via a CT clamp.

Mechanical & Environmental Specs

Physical Specs: Measures 220 x 205 x 87 mm and weighs 4.3 kg (excluding bracket). Enclosure is made of painted Zintec steel with an IP20 indoor-only rating.

Environment: Operates between -20°C and +40°C using silent convection cooling.


Interfaces & Features

Outputs & Display: Supports two sequential heating element outputs, features a back-lit LCD screen, and a three-position physical bypass switch.
