Eaton xComfort Series Communication Module for Use with C-load

Highlights & Details

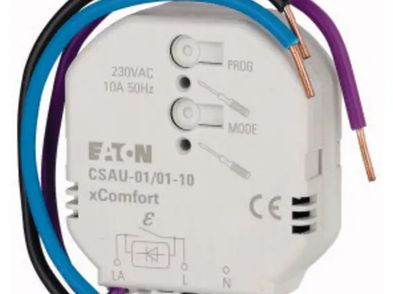

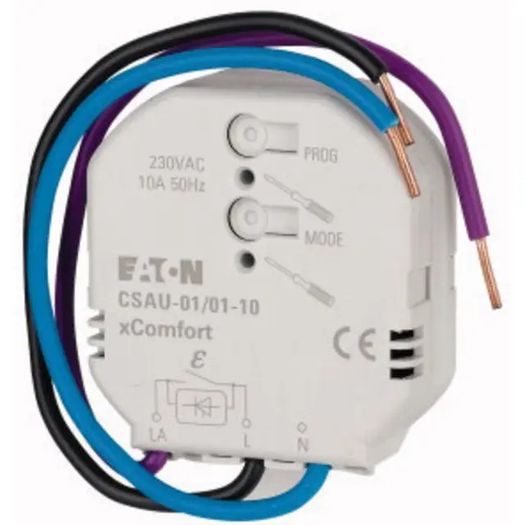

Switch actuator 10 A
Switch actuator 10 A
Hybrid switching technology
Technical specifications


Show items with the same values
Power supply: 230 VAC, 50 Hz
Transmission type: Bidirectional, via coded telegrams
Range in the building: Typical 30 -50 m, 2 walls + 1 ceiling; (depending on wall thickness and material!!)
Function assignments 32
routing routes: 32
Operating temperature: -5 to +55 °C
Housing color: Gray, RAL7035
Length connecting wires: 150 mm
Support in basic mode: Local input mode button (mode 1), switch (mode 2)
Function mode on/off, rocker, pushbutton, step house switch, step house switch with switch-off warning
Product type
Actuator


Series
Eaton xComfort

Dim
(W x H x D) 45.5 x 49.5 x 18 mm

Max. switching capacity
2300 W

IP rating
IP20


Power supply (LOV)
mains-powered


Operating voltage
230 V


Power
2300 W

Data transfer (Smart Home)
Wireless

Frequency
868.3 MHz

Mounting type
Flush mount

Factory colour
White

Width
45.5 mm

Height
49.5 mm

Depth
18 mm

Hub
Not required, optional for remote access

Data exchange
Bidirectional (bi)

Energy efficiency rating
n.rel.

Weight
0.000

Mounting method
Flush mounted (plaster)

Rated current
10 A

Power consumption
0.23 W

Output power
2300 W

Rated operating voltage
230-230 V

Bus system KNX
FALSE

Bus system radio frequency
TRUE

Bus system Powernet
FALSE

Max. switching power
2300 W

With bus connection
TRUE

Max. number of switching contacts
1

Number of digital inputs
0

Width in number of modular spacings
3

Max. switching current
10 A

Other bus systems
xComfort

Bus system LON
FALSE

Suitable for C-load
TRUE

Different phases connectable
FALSE

Local operation/hand operation
TRUE

Degree of protection (IP)
IP20

With LED indication
TRUE

Modular expandability
FALSE

Bus system KNX-RF (Radio Frequency)
FALSE

Radio frequency bidirectional
TRUE

Bus module detachable
TRUE

Min. depth of built-in installation box
18 mm

UKCA
yes
