Dimplex Bathroom Down Flow Heater

Dimplex Bathroom Down Flow Heater.

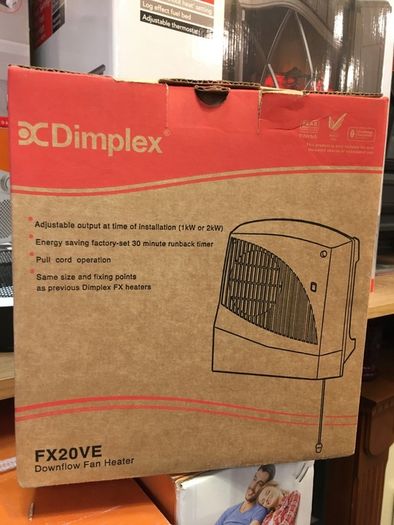

FX20VE Downflow Fan Heater with Pullcord and Timer

Key Features
Colour/Finish/Material White
Controls Pull cord operation
Heat Output (kW) 2
Heat Selection Off / 1.0kW / 2.0kW
Heat source Electricity
Installation Two upper keyhole slots are provided together with a third fixing hole.
Insulation Two upper keyhole slots are provided together with a third fixing hole to secure the heater to the wall. 2kW or 1kW heat ouput selectable upon installation. Identical footprint to current FX20 models, meaning that retro-fitting an IPX4 model us incredibly
IP Rating IP22
Location of Heat Output Grille at the bottom.

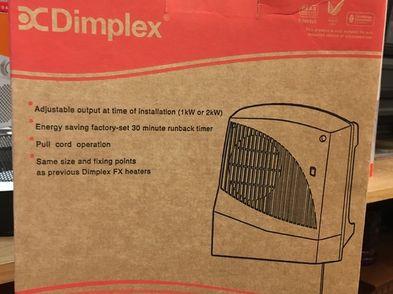

FX downflow fan heaters are the popular choice for heating bathrooms and en suites as well as kitchens. The FX20VE features an energy-saving electronic timer which automatically switches heater off after a 30 minute period to prevent it being left on accidentally.

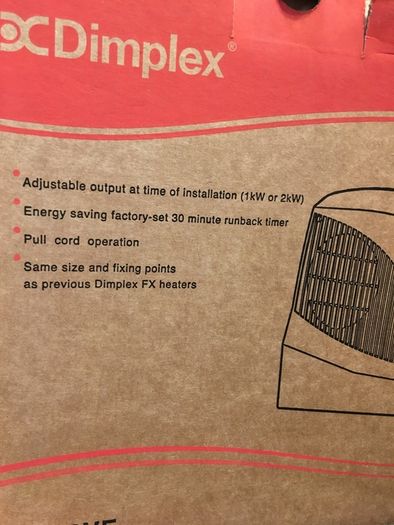

Adjustable output at time of installation (1kW or 2kW)
Energy saving 30 minute runback timer
Heater can be manually switched off before time period expires.
Pull cord operation.
2kW maximum output.

Dimensions
Height (mm) 242
Depth (mm) 109
Width (mm) 229
Weight (kg) 1.1
Recommended Mounting Height (m) 1.8
