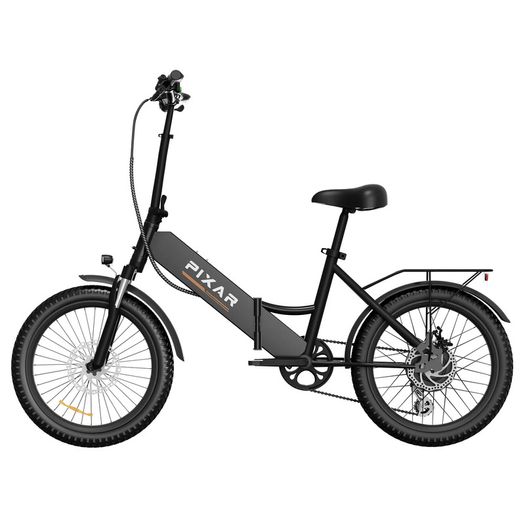

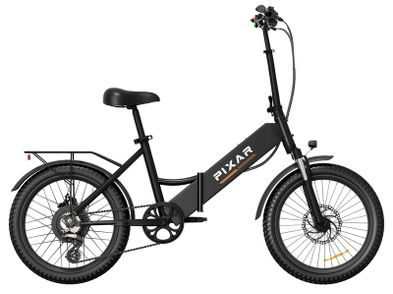

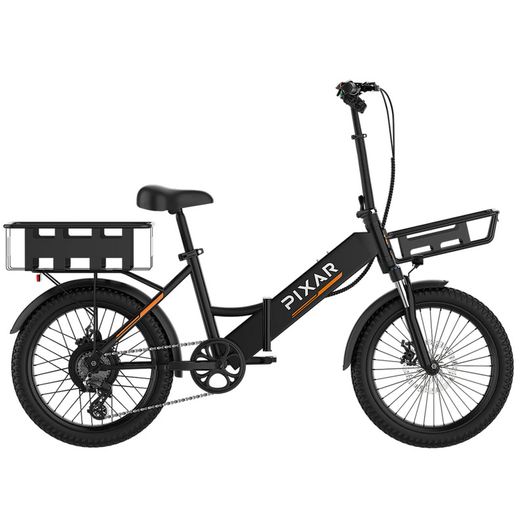

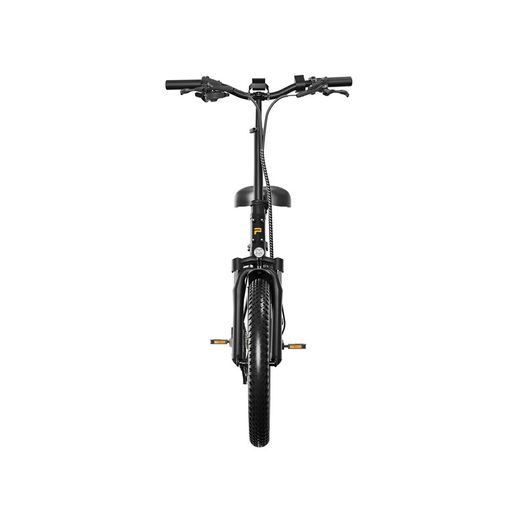

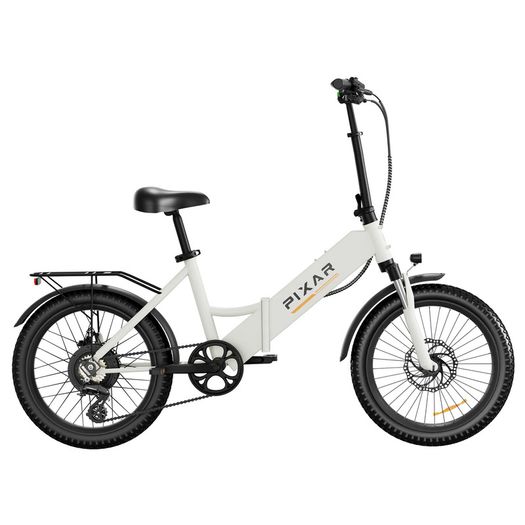

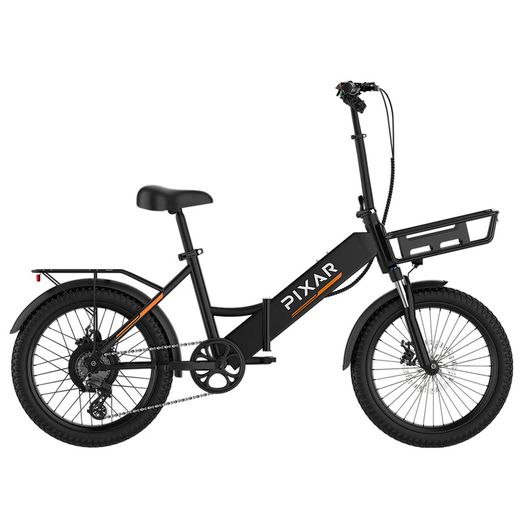

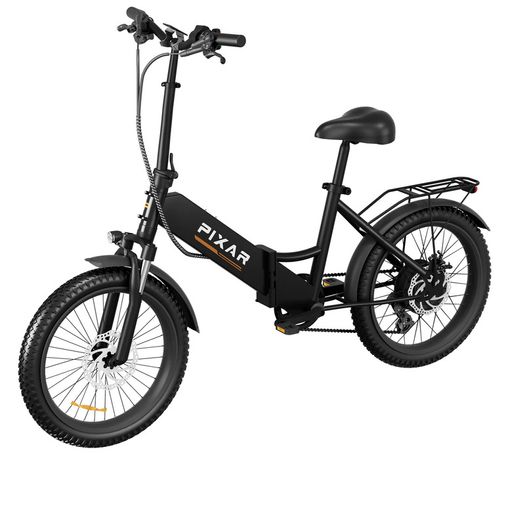

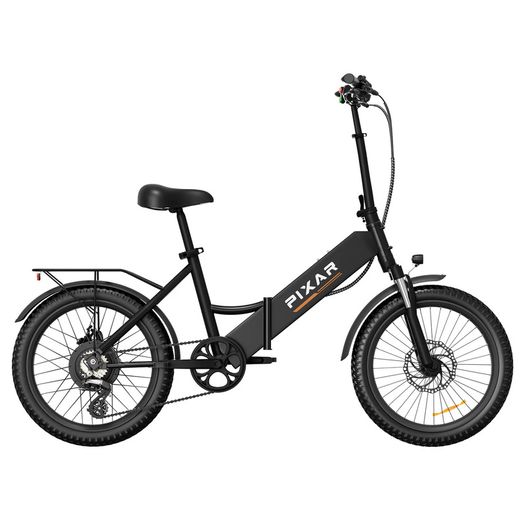

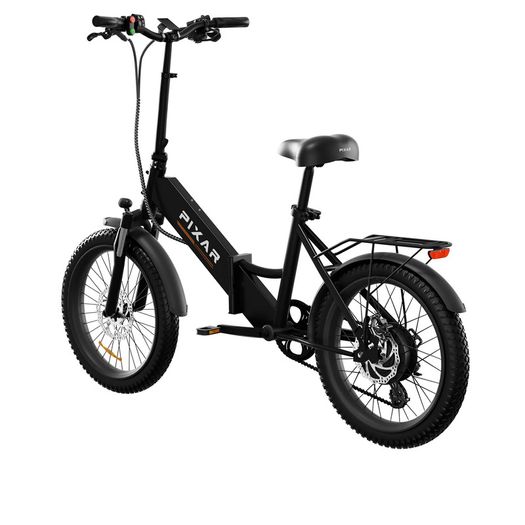

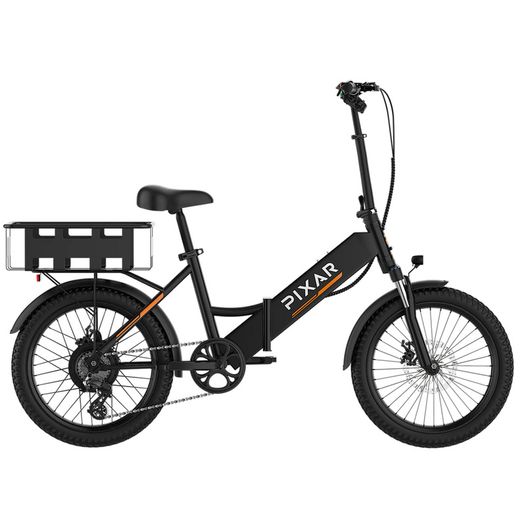

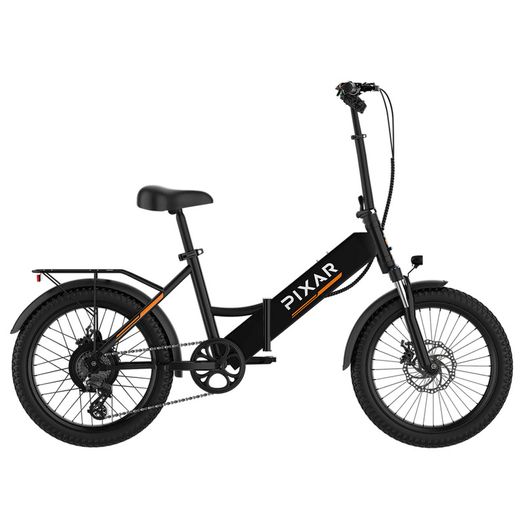

Pixar Rusher Electric Bike

Free delivery.
Price match guarantee.
Bike to work scheme.
Visit www.electricpower.ie

Link to the bike:
https://electricpower.ie/product/pixar-rusher-electric-bike/

FEATURES




0-5 Gear Levels

Speed From 0 to 25 km/h

Motor 250W

Rear-Wheel Drive Motor

Max 250kg

Weight Capacity 250 kg

Range 120 km

Single Charge Range

48V12.8Ah

Battery Capacity

45 Nm

Max 35° Gradient

29.5 kgBike weight
120 kmRange
CE-RoHSCertification
615 WhSamsung battery
250WMotor
25 km/hMax. speed
Mechanicaldisc brakes
7 SpeedsShimano Gears
SleekDesign
EasyFoldable
The low frame design offers comfortable elegance for anyone who wants to travel in style. Whether you are wearing fashionable dresses or casual outfits, this e-bike fits your lifestyle perfectly.

BAFANG 250W Power

The Rusher features a powerful 250W Bafang outer-rotor BLDC motor with a high-efficiency sine wave design, delivering smooth acceleration up to 3,805 RPM. Combined with its 5-level pedal assist system (PAS), it ensures effortless riding across all terrains—from city streets to challenging trails."

Equipped with 615 Wh Samsung battery

The Rusher is equipped with a 48V 12.8Ah Samsung 21700 lithium battery, offering greater capacity and 6% higher energy density compared to traditional 18650 batteries. This allows for longer range and higher power output. It features a quick-release battery design for easy maintenance and has an IPX6 waterproof rating, ensuring reliable operation in various environments

Easy to carry

The Rusher's innovative ergonomic design combines strategically positioned carrying handles with lightweight construction, enabling effortless transportation and smooth maneuverability whether navigating tight spaces, climbing stairs, or loading into vehicles, while maintaining perfect balance and control for ultimate portability convenience.

Electronic Control PAS Levels
PAS Levels Corresponding Speed and Range

PAS-1

Avg.Spd.10 km/h

Range:120 km

PAS-2

Avg.Spd.14 km/h

Range:98 km

PAS-3

Avg.Spd.18 km/h

Range:74 km

PAS-4

Avg.Spd.22 km/h

Range:62 km

PAS-5

Avg.Spd.25 km/h

Range:56 km

The results above were obtained with a rider weighing 80kg, in a flat road environment at 33℃. Please note that the cruising range can vary depending on riding conditions; refer to actual usage for more accurate information

Additional features and configurations of the Rusher

Rusher additional configurations and features are all designed to provide a comfortable, smooth, and safe riding experience on urban roads.

Fork suspension
LCD display
Mechanical disc brake
Gear rim
Puncture-proof tyres

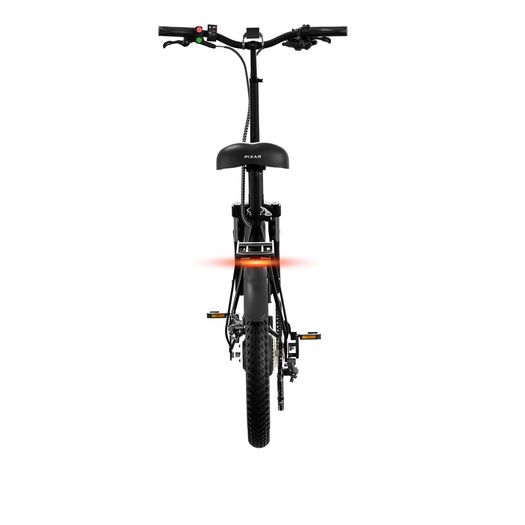

Integrated rear light
Headlights
Fork suspension

A spring + hydraulic oil system with 100mm travel lets you customize stiffness via the lockout knob—conquering rough terrain while keeping rides smooth and stable.

Specifications
Pedal Assist Range
120+ km
Electric-Only Range
58 km
Top Speed
25 km/h
Dimensions
172 × 66 × 116 (cm)
Max Load Capacity
250 kg
Ebike Net Weight
26.3 kg
Torque
45 N.m
Battery
Samsung 48V 12.8Ah IPX6 Waterproof, CE Certified
Battery Charging Time
4 - 5 hours
Battery Weight
3.5 kg
Frame
Frame Material
6061 Aluminum Alloy Frame.
Front Suspension
Aluminum Suspension
Front Suspension
Travel Total Length 375mm, Travel 40mm.
Handlebar
Riser Handlebar, Grip Length 125mm, Total Length 63cm.
Pedals
Folding, 9/16", With Reflectors.
Chain
1/2" × 3/32" × 118l, 21-Speed Indexing.
Crankset
170mm Crank Arms, 52t Chainring.
Folded Dimensions
84 × 51 × 79(cm)
Motor Control
Display
3.0" LCD Display
Pas Levels
0-5 Pas.
Maximum Output
48V19A With Temperature Control Protection.
Motor
250W Peak Rear Hub Brushless Motor.
Sensors
Speed Sensor.
Freewheel
Shimano 7-Speed Indexing, 14-28T.
Rear Derailleur
Shimano 14-28T.
Charger
2A Smart Charger, CE Certified.
Components
Rim
Aluminum Alloy 20"3.012g × 36h.
Spokes
45# 12g × 174mm, Compliant With En15194 Standard
Tire Brand
Chaoyang All-Terrain Tire.
Tire Size
20" × 3.2, 30psi.
Inner Tube
20" × 3.0", Valve Stem 32mm.
Brake Levers
Aluminum Material (With Brake Priority Protection).
Brakes
Front And Rear Mechanical Disc Brakes.
Brake Rotors
180mm.
Kickstand
Heavy-Duty Aluminum Kickstand.
Geometry
What's in the box?



Size L(cm)
A Maximum Seat Height 77
B Top Tube Length 72
C Handlebar Length 66
D Head Tube Length 30
E Min Seat Height 48
F Stand Height 48
G Chain Stay Length 43
H Wheelbase 115
I Total Length 172
J Wheel Diameter 53
K Minimum handlebar to floor height 116
L Maximum handlebar to floor height 130
M Minimum Seat to Floor 75
N Max Seat to Floor 105
