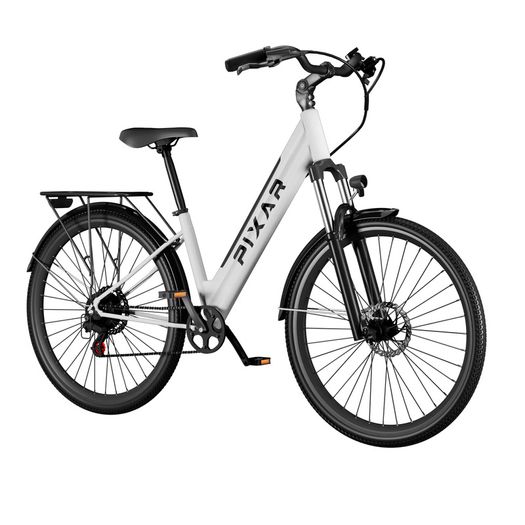

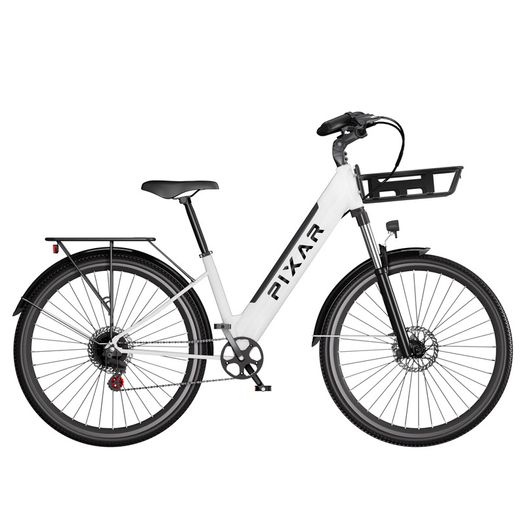

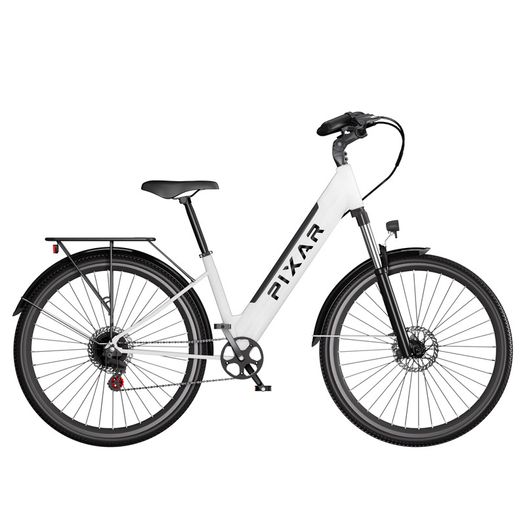

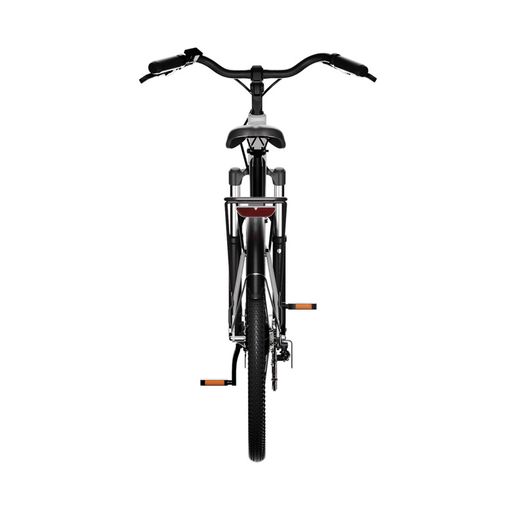

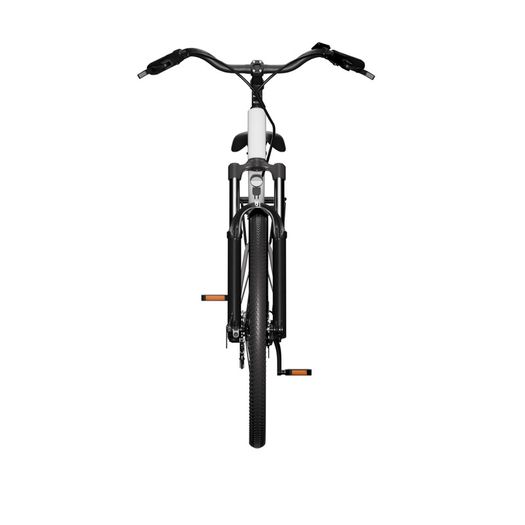

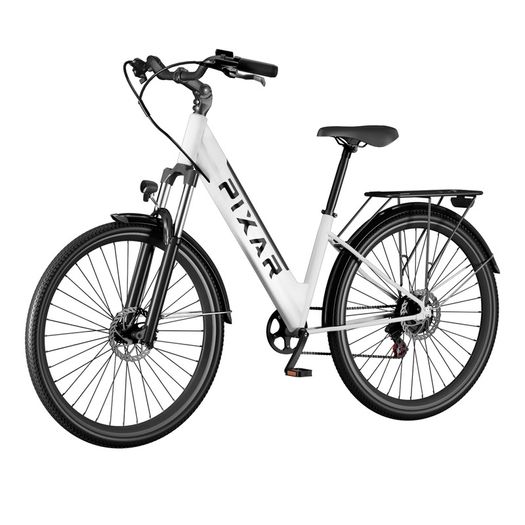

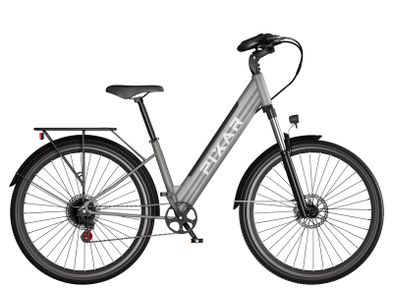

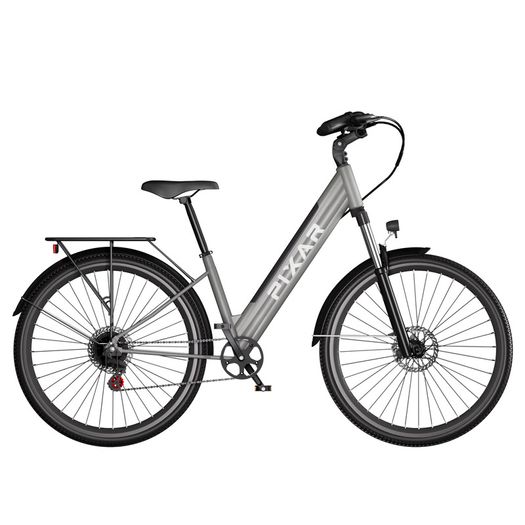

Pixar Cruiser Electric Bike

Free delivery.
Price match guarantee.
Bike to work scheme.
Visit www.electricpower.ie

Link to the bike:
https://electricpower.ie/product/23234/

FEATURES



29 kg Bike weight


120 km Range


CE-RoHS Certification




460 Wh Samsung battery
250W Motor
25 km/h Max. speed
Mechanical disc brakes
7 Speeds Shimano Gears
Sleek Design
35°Climbing Angle
Your stylish companion to explore the city.The low frame design offers comfortable elegance for anyone who wants to travel in style. Whether you are wearing fashionable dresses or casual outfits, this e-bike fits your lifestyle perfectly.

BAFANG 250W Power

The Curiser features a 250W outer rotor BLDC motor from the BAFANG sub-brand. The motor is equipped with a 5-level pedal assist system (PAS).The motor utilizes a sinusoidal wave structure and can rotate at a speed of 3805 revolutions per minute within one minute.

Equipped with 460Wh Samsung battery

The Curiser is equipped with a 36V 12.8Ah Samsung 21700 lithium battery, offering greater capacity and 6% higher energy density compared to traditional 18650 batteries. This allows for longer range and higher power output. It features a quick-release battery design for easy maintenance and has an IP65 waterproof rating, ensuring reliable operation in various environments.

Classic Dutch Bike Design

The Curiser is built using 1000 MPa high-strength alloy die-casting technology, enhancing its structural strength and stability. The frame is treated with electrophoretic rustproofing, making it resistant to corrosion even after long-term use. Its low-step design allows more riders to enjoy the fun of cycling, while also offering added convenience for those with limited mobility.

PAS Levels Corresponding Speed and Range

PAS-1

Avg.Spd.10 km/h

Range:120 km

PAS-2

Avg.Spd.14 km/h

Range:98 km

PAS-3

Avg.Spd.18 km/h

Range:74 km

PAS-4

Avg.Spd.22 km/h

Range:62 km

PAS-5

Avg.Spd.25 km/h

Range:56 km




The results above were obtained with a rider weighing 80kg, in a flat road environment at 33℃. Please note that the cruising range can vary depending on riding conditions; refer to actual usage for more accurate information




Detailed feature introduction and configuration of Cruiser

Please make sure to review the detailed feature introduction of the Cruiser. Among the same models, the Cruiser offers the best value for the money

LCD display
Gear rim
Fork suspension
Mechanical disc brake
Rear taillight
Puncture-proof tyres
Safety reflectors
LCD display

The display integrates a variety of important information displays, and you can clearly see key information such as speed, power, mileage, etc.; waterproof level IPX6

Evaluation By Influencers



Ride the PIXAR and ride the wind, it is cheap but feels powerful. Whether you are shopping or just going out, this bike brings joy home.

Highlights:

🚴‍♂️ Fully Assembled: No assembly required, comes with a detailed owner’s manual.
⚡ Class 1/5 E-Bike: Unlockable to reach speeds up to 25 km/h, perfect for quick rides.
💪 Powerful Motor: Features a 250W motor with peak power of 500W and 45 Nm of torque.
🚲 Versatile Size: Suitable for riders from 150 to 200cm, available in multiple colors.
🔋 Impressive Range: Claims up to 120km on a single charge, though speed affects this.
💧 Waterproof Battery: Battery has an IPX6 rating, ensuring durability in various conditions.
💰 Affordable Price: Priced at 899€, it offers excellent value for the performance provided.
🔍 Assembly Convenience: The fully assembled bike with a comprehensive manual eliminates setup hassles, appealing to beginner riders. This convenience can enhance user satisfaction and encourage more people to try e-bikes.
🚀 Speed and Performance: With speeds reaching 25km/h, the Cruiser offers high performance for a budget bike, making it attractive for those seeking speed without breaking the bank. This performance can redefine expectations for budget e-bikes.
🏋️‍♂️ Robust Build: The 250W motor and 250kg payload capacity provide a sturdy ride, suggesting that it can handle various terrains and users, thereby catering to a wider audience.

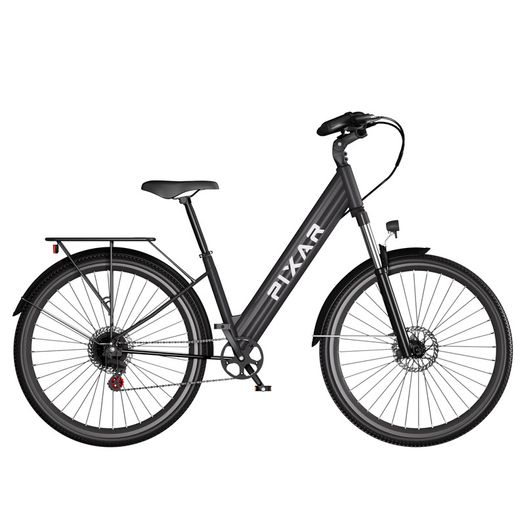

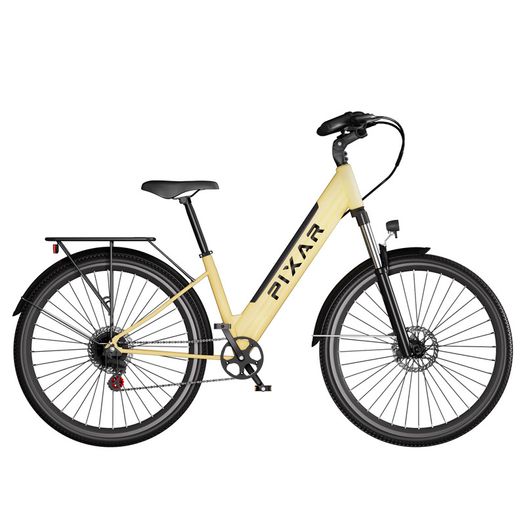

🌈 Diverse Options: The Cruiser comes in multiple colors and a step-through design, appealing to a diverse range of riders and preferences. This inclusivity can enhance market reach.





Specifications
Pedal Assist Range
120+ km
Electric-Only Range
58 km
Top Speed
25 km/h
Dimensions
183 × 66 × 122 (cm)
Max Load Capacity
250 kg
Ebike Net Weight
29 kg
Torque
45 N.m
Battery
Samsung 36V 12.8Ah IP65 Waterproof, CE Certified
Battery Charging Time
4 - 5 hours
Battery Weight
3.5 kg
Frame
Front Suspension
Aluminum Adjustable Shock Absorbers.
Front Suspension
Travel Total Length 510mm, Travel 100mm.
Handlebar
Riser Handlebar, Grip Length 104mm, Total Length 66cm
Pedals
9/16", With Reflectors.
Chain
1/2" × 3/32" × 118l, 21-Speed Indexing.
Crankset
170mm Crank Arms, 48t Chainring.
Motor Control
Crankset
170mm Crank Arms, 48t Chainring.
Pas Levels
0-5 Pas.
Throttle
Half-Twist Throttle / Optional Thumb Throttle.
Maximum Output
48V23A With Temperature Control Protection.
Motor
250W Peak Rear Hub Brushless Motor.
Sensors
Speed Sensor.
Freewheel
Shimano 7-Speed Indexing, 14-28T.
Rear Derailleur
Shimano 14-28T.
Charger
2A Smart Charger, UL Certified.
Components
Rim
Alloy 27.5"2 × 13G × 36H.
Spokes
45# 12g × 212mm, Compliant With En15194 Standard.
Tire Brand
CST Tire.
Tire Size
27.5" × 2", 45psi.
Inner Tube
27.5" × 2", Valve Stem 35mm.
Brake Levers
Aluminum Material (With Brake Priority Protection).
Brakes
Front And Rear Mechanical Disc Brakes.
Brake Rotors
180mm.
Kickstand
Heavy-Duty Aluminum Kickstand.
Geometry
What's in the box?



Size L(cm)
A Maximum Seat Height 73
B Top Tube Length 61
C Handlebar Length 66
D Head Tube Length 23
E Min Seat Height 51
F Stand Height 50
G Chain Stay Length 46
H Wheelbase 110
I Total Length 183
J Wheel Diameter 70
K Handlebar Height 122
L Minimum Seat to Floor 74
M Max Seat to Floor 104
N Rear Rack Length 36
